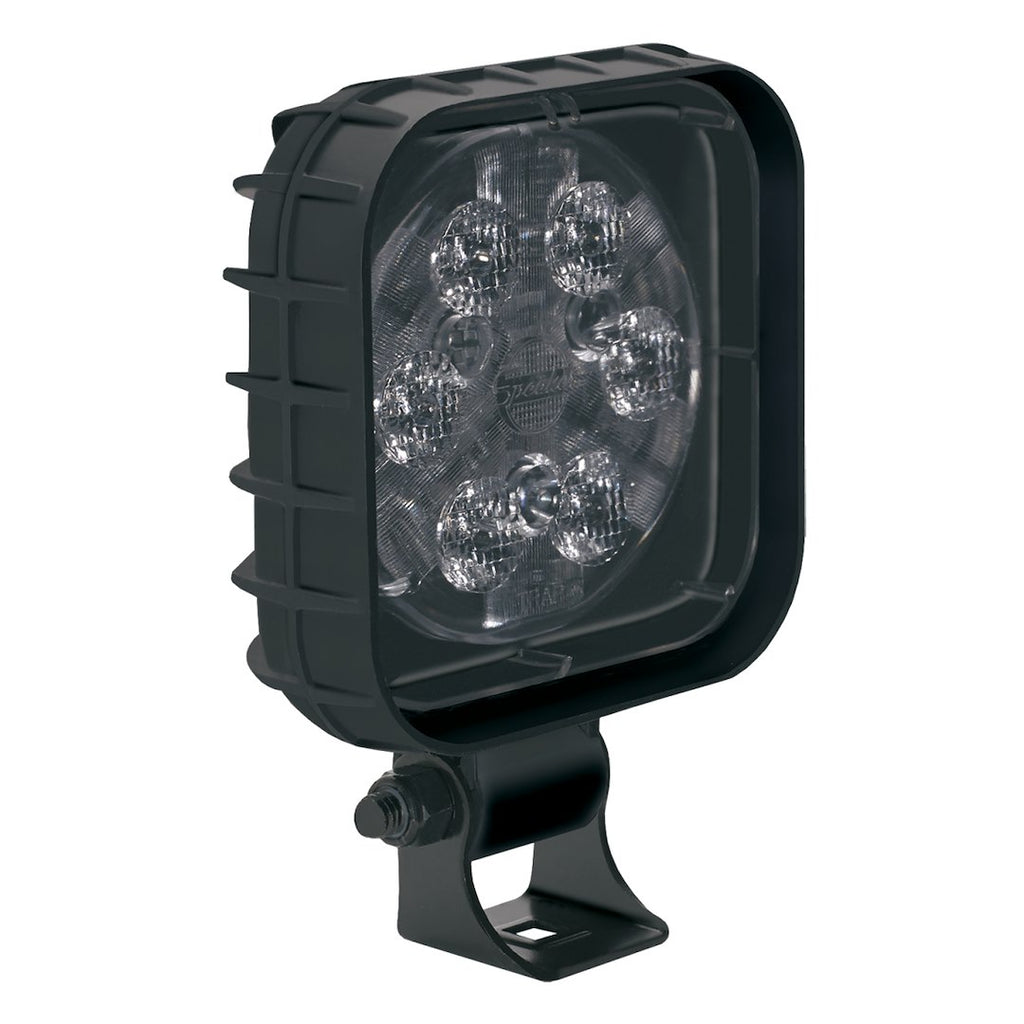

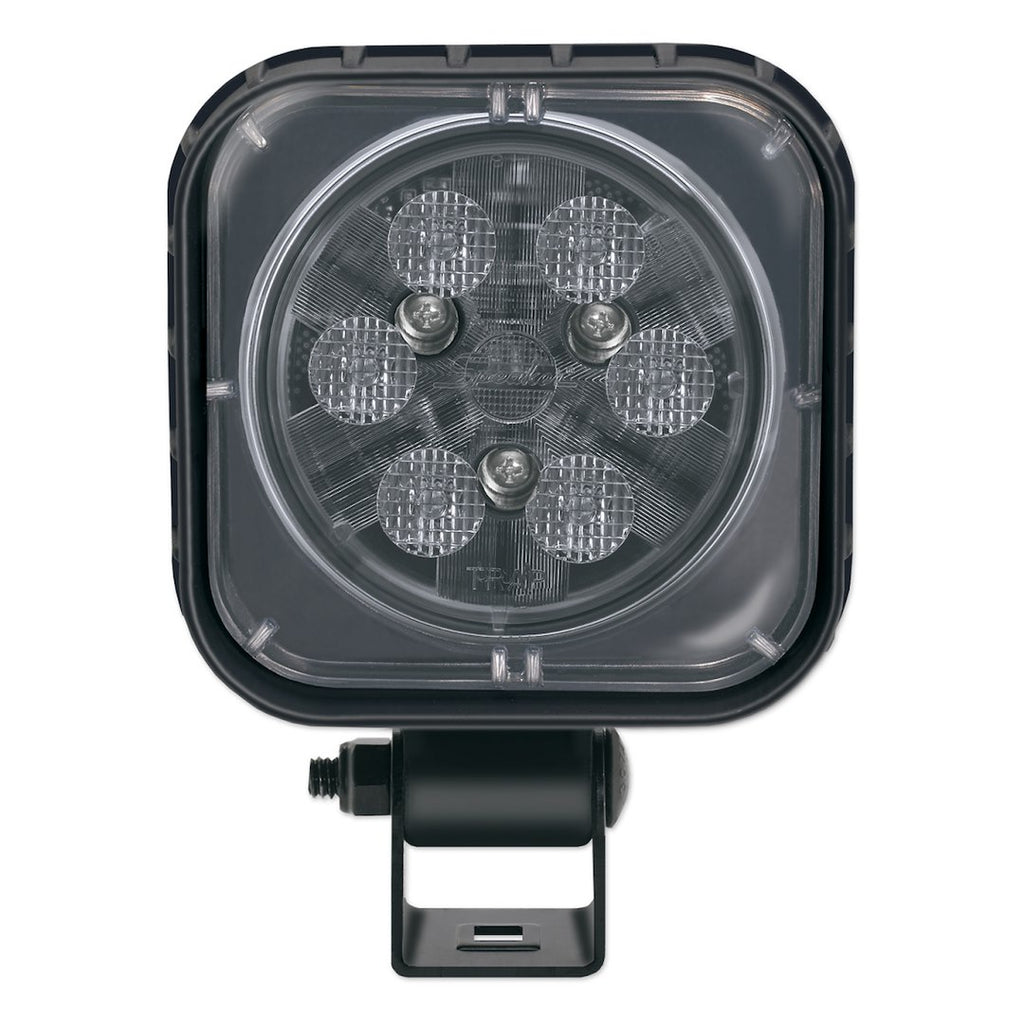

J.W. Speaker 840 XD Series Work Light (MPN: 1300031)

High-performance LED light for demanding environments and applications.

The J.W. Speaker 840 XD Series Work Light is engineered for use in agriculture, construction, industrial, material handling, mining, railroad, and specialty vehicles. This robust work light features a 4-inch square housing and is designed for pedestal mounting, making it versatile for various installation needs. With an output of 1080 raw lumens and 780 effective lumens, it provides bright illumination while consuming minimal power, operating at 1.3 amps at 12 volts DC, 0.6 amps at 24 volts DC, and 0.2 amps at 110 volts DC.

Constructed with a clear polycarbonate lens and a durable black polycarbonate housing, the 840 XD is built to withstand harsh conditions. It is IP69K sealed, ensuring protection against dust and high-pressure water jets, making it suitable for outdoor use. The trapezoid beam pattern enhances visibility in challenging environments, while the integrated 2-pin Deutsch connector simplifies installation.

This work light is reverse voltage protected and meets SAE standards, ensuring reliability and safety in operation. Additionally, it is CE compliant, making it suitable for use in various international markets. The J.W. Speaker 840 XD Series Work Light is a dependable choice for professionals seeking a high-quality lighting solution.

Features

• Reverse Voltage Protected
• Meets SAE Standards
• CE Compliant
• IP69K Sealed

Specifications

• Manufacturer: J.W. Speaker
• Manufacturer Part Number: 1300031
• Type: Pedestal Mount
• Bulb Type: LED
• Power Source: 12 To 24 Volt
• Quantity: Single
• Diameter (IN): Not Applicable
• Length (IN): 4-1/2 Inch
• Width (IN): 2-1/2 Inch
• Height (IN): 6 Inch
• Housing Color: Black
• Light Color: White
• Shape: Square
• Lens Material: Polycarbonate
• Housing Material: Polycarbonate
• Bulb or Lens Guard: No
• Ampere Rating At 12 Volts: 1 Amp
• Ampere Rating At 24 Volts: 0.5 Amp
• Includes Charging Port: No
