High-intensity LED light bar with superior performance and durability.

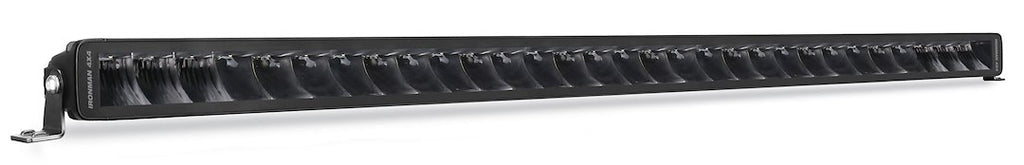

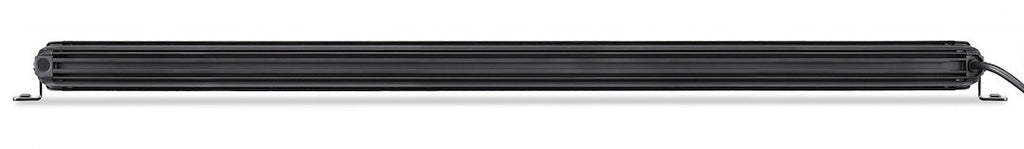

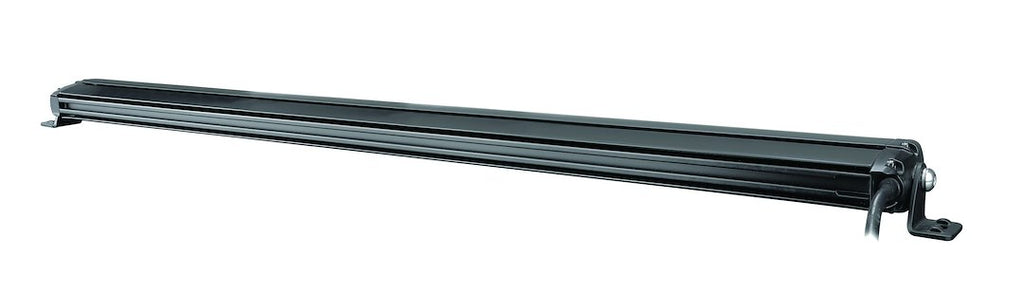

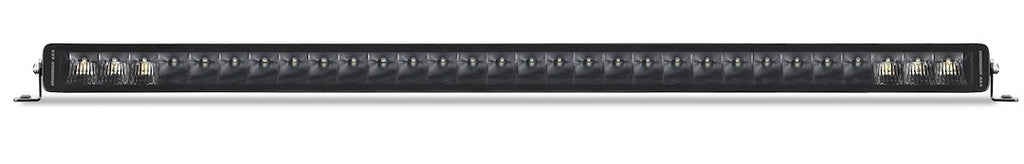

The Ironman 4x4 LED Light Bar is engineered to provide exceptional visibility while consuming minimal power. Featuring high intensity CREE LEDs, this 40-inch light bar delivers a powerful output of 12600 lumens, ensuring maximum light spread for off-road applications. The robust aluminum extrusion housing is designed to maintain optimal LED efficiency by keeping the lights cool during operation.
This light bar is built to withstand harsh conditions, boasting an IP67 and IP69K rating for water and dust resistance. It includes a flat UV-stable polycarbonate lens with a bezel-free design that prevents rain, snow, and ice build-up, enhancing reliability in various weather conditions. The hooded reflector design minimizes glare and improves the light beam pattern, making it suitable for both flood and spot applications.
With a versatile mounting system that includes side and rear brackets, the Ironman 4x4 LED Light Bar can be securely installed in multiple configurations. It operates within a voltage range of 12 to 24 volts and features a temperature self-protection system that automatically adjusts current to prevent overheating. This light bar is RoHS compliant, ensuring it meets environmental standards.
Features
- Single And Dual Row Options To Suit Any Front Bar Or Roof Rack Application
- OSRAM LED Chip For Reliability And Performance
- Flat UV-Stable Polycarbonate Lens With A Bezel-Free Design Protects Against Rain, Snow And Ice Build-Up
- Hooded Reflector Reduces Glare And Improves The Light Beam Pattern
- Temperature Self-Protection System Automatically Adjusts Current If Operating Temperature Exceeds Safe Limits
- Supplied With Side And Rear Mount Brackets Providing Multiple Mounting Options
- 12 To 24 Volt Operating Range, IP67 Rating, RoHS Compliant
Specifications
- Manufacturer: Ironman 4x4
- Manufacturer Part Number: ILBSR001BW
- Bulb Type: LED
- Style: Straight
- Length: 40 Inch
- Beam Type: Combo Beam Flood And Spot
- Number Of Rows: 1
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Lumens: 12600 Lumens
- Wattage: 150 Watt
- Width: 2.63 Inch
- Height: 2 Inch
- Voltage Rating: 12 To 24 Volt
- Bulb Specifications: 30 OSRAM LED Bulbs
- Lens Material: Polycarbonate
- Mounting Style: Surface Mount
- Connection Type: Hard Wired
- Estimated Install Time (Hours): 1.5
