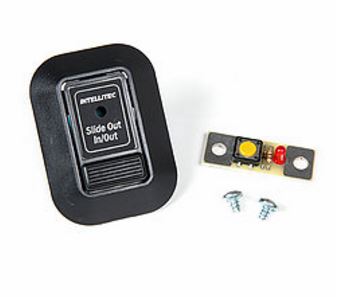

Intellitec Slide Out Controller (MPN: 00-00183-011)

Efficient control for slide out room mechanisms with automatic limit sensing.

The Intellitec Slide Out Controller is engineered to manage the operation of slide out room electrical mechanisms effectively. This controller features an automatic stop function that activates when the slide out reaches its inner or outer limit, utilizing current sensing technology to enhance safety and convenience. This design negates the need for continuous switch activation during the entire extension or retraction cycle, streamlining the user experience.

By integrating with the MONOPLEX System, the controller simplifies installation by requiring only one wire and a ground lead for multiple switches, each equipped with its own indicator light. This allows for a more efficient wiring setup, reducing the complexity and weight of long wire runs. The control unit can be conveniently mounted near the motor mechanism, further facilitating installation.

To operate the slide out room, users simply press the button, activating the indicator light and initiating the movement. The controller automatically senses the increase in current when the slide reaches its limits, ensuring that power is cut off to both the motor and the indicator light, thereby enhancing operational safety and reliability.

Features

• Designed To Control The Operation Of A Slide Out Room Electrical Mechanism
• Controller Automatically Stops The Slide Out When It Reaches It's Inner Or Outer Limit By Sensing The Current Drawn By The Motor
• Eliminates The Need For The Owner To Hold The Switch In The ON Position For The Entire Extended/Retract Cycle
• Eliminates Installation Of The Limit Switches And Associated Wiring During Installation

Specifications

• Manufacturer: Intellitec
• Manufacturer Part Number: 00-00183-011
• Type: Momentary Switch
• Voltage Rating: 10 To 16 Volt
• Ampere Rating: 15 Amp
• Color: Black
• Quantity: Single
