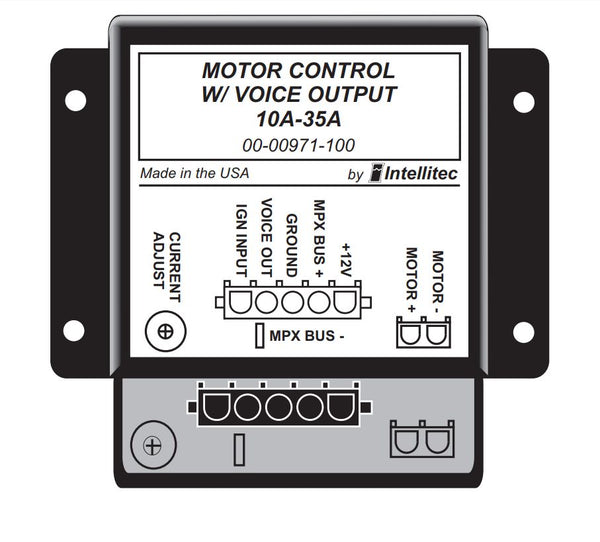

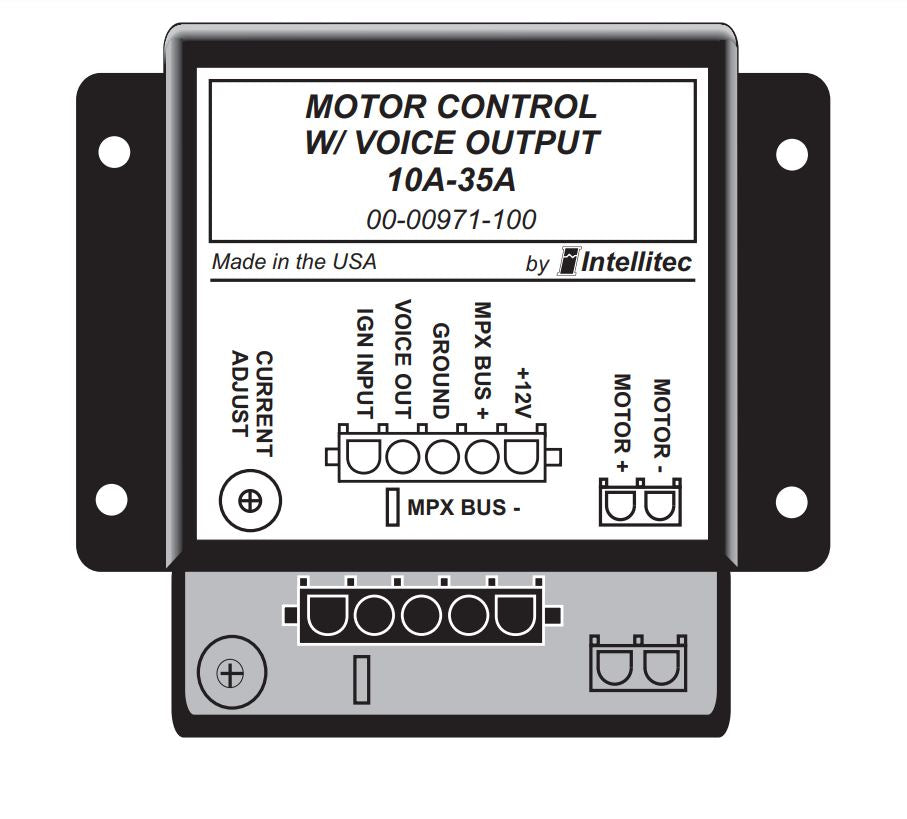

Intellitec Slide Out Control Module (MPN: 00-00971-100)

Efficient control for slide out room mechanisms with voice output.

The Intellitec Slide Out Control Module is engineered to manage the operation of slide out room electrical mechanisms effectively. Users can operate the slide out by simply pressing and holding a button in the desired direction, either in or out. This module features a voice announcement system that activates during operation, providing auditory feedback to the user.

When the slide out reaches its outermost limit, the module detects a rise in current and automatically disconnects power to the motor, ensuring safety and preventing damage. Similarly, when retracting the slide out, the controller will sense the current and shut off power once the inner limit is reached.

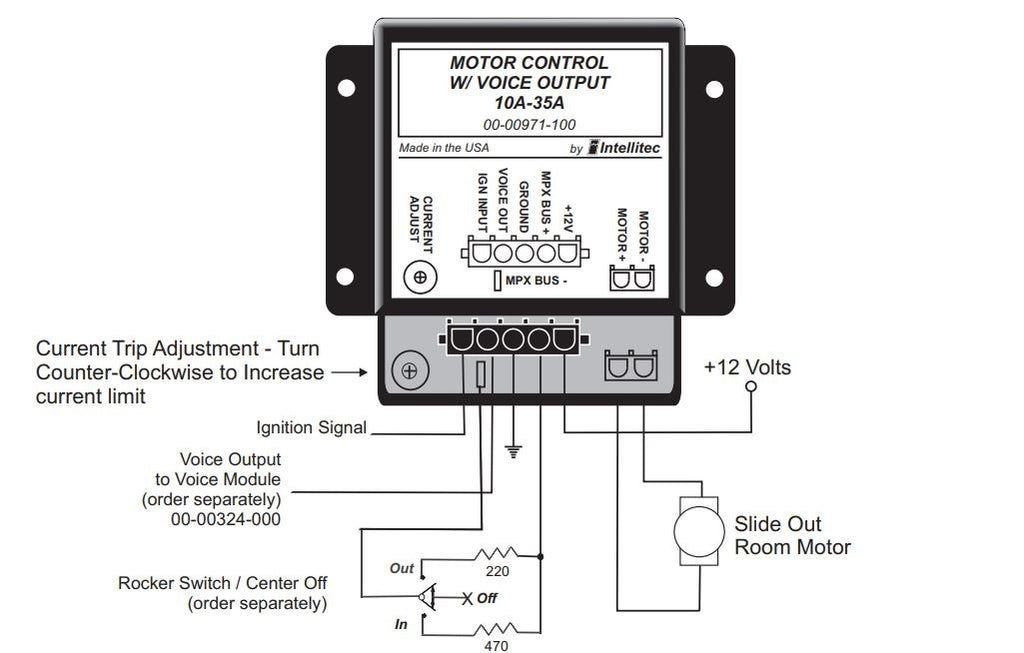

Direction control is facilitated through a rocker switch connected to the MPX Bus input, allowing for intuitive operation. The module also includes a Current Adjust feature to protect the motors from overload, automatically shutting off if the current exceeds a preset level. This design ensures reliable and safe operation of slide out systems.

Features

• Designed To Control The Operation Of A Slide Out Room Electrical Mechanism
• To Operate The Room, The Owner Would Simply Press And Hold The Button In The Desired Direction
• When The Slide Out Reaches It's Outer Most Limit, The Unit Will Sense The Rise In Current And Switch Off The Power To The Slide Out Motor
• To Move The Room Back In Again, The Owner Will Press And Hold The Button In The Desired Direction
• When The Slide Out Reaches It's Inner Most Position, The Controller Will Sense The Rise In Current And Will Shut Off Power To The Motor

Specifications

• Manufacturer: Intellitec
• Manufacturer Part Number: 00-00971-100
• Compatibility: Intellitec 00-00277-100 Slide Out System

Technical Documents

• 53-00971-000-PRODUCT-BROCHURE-1.pdf
