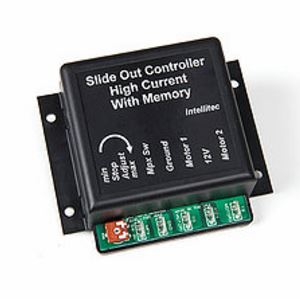

Intellitec Slide Out Control Module (MPN: 00-00346-100)

Efficient control for slide-out systems with simplified wiring and operation.

The Intellitec Slide Out Control Module is designed for use with the Intellitec Monoplex System, providing a streamlined solution for controlling slide-out mechanisms in various applications. Operating within a voltage range of 10 to 16 volts DC and handling currents from 4 to 14 amps, this control module ensures reliable performance and ease of use. Its design allows for mounting near the motor mechanism, significantly reducing the need for long, heavy gauge wire runs, which simplifies installation and enhances system efficiency.

Users can operate the slide-out by simply pressing a button, which activates an indicator light and initiates the movement of the slide. The control module is equipped with a current sensing feature that automatically shuts off power to the motor and indicator light when the slide reaches its outer or inner limits, ensuring safe operation. Additionally, the module allows for immediate stopping of the slide-out at any point during operation, providing users with full control over the movement.

This control module is compatible with the Intellitec 00-00277-100 Slide Out System, making it a versatile choice for enhancing the functionality of slide-out rooms. Its straightforward operation and efficient design make it an essential component for those looking to optimize their slide-out systems.

Features

• Control Unit Can Be Mounted Near The Motor Mechanism To Ease Installation And Eliminate Long Heavy Gauge Wire Runs
• To Operate The Room, The Owner Would Simply Press The Button
• The Indicator Light Will Come On And The Slide Will Move Out
• To Move The Room Back Again, The Owner Will Again Push The Button, The Indicator Will Come On And The Room Will Move In

Specifications

• Manufacturer: Intellitec
• Manufacturer Part Number: 00-00346-100
• Compatibility: Intellitec 00-00277-100 Slide Out System
