Efficiently manage lighting in recreational vehicles with advanced control features.

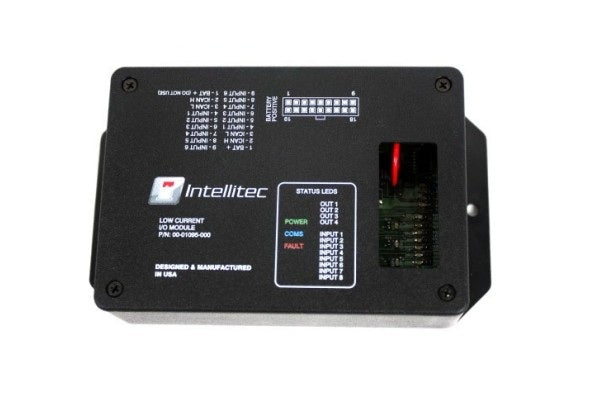

The Intellitec Light Control Module is designed for effective management of low current loads within recreational vehicles, allowing users to control both interior and exterior lights seamlessly. This module features eight selectable inputs and four output channels, each rated at 5 Amperes, with a maximum current draw of 20 Amperes. Utilizing self-protected FET technology, the module ensures safety by protecting both itself and the connected output loads from over-current situations.
Incorporating PWM control, the module allows for dimming capabilities down to a 10 percent duty cycle, making it suitable for various lighting applications. The sleep mode feature minimizes power consumption during inactivity, enhancing energy efficiency during dry camping operations. On-board indicators provide real-time network status and fault codes, ensuring users are informed of the module's performance.
The Intellitec Light Control Module is adaptable to previous model year coaches and can be controlled via OEM installed switches, Intellitec touchscreen LCD panels, or SMART devices. Its compact dimensions of 6 inches in length, 3.6 inches in width, and 1.2 inches in height make it easy to integrate into existing setups, providing a versatile solution for lighting control in recreational vehicles.
Features
- Sleep Mode' Minimizes The Amount Of Power Consumption When Inactive For Certain Amount Of Time
- FET Outputs Provide 'Over-current ' Protection For Each Output
- PWM Controlled FETs Allow Module To Dim Lights
- Perfect For ‘dry Camp’ Operation
- Allows The Freedom Of Changing What Is On Without Entering Your Coach Or Towable Model
- On-board Indicators Show Network Status And Fault Codes
- 8 Configurable Inputs And Outputs Allow For Unique Application Customization
- Control Is Available By Using OEM Installed Switches, Intellitec Touchscreen LCD Panels, And SMART Devices
- Expandable And Adaptable To Previous Model Year Coaches
Specifications
- Manufacturer: Intellitec
- Manufacturer Part Number: 00-01095-000
- Power Supply: 12 Volt
- Ampere: 20 Amp
- Connection Type: Plug And Play
- Dimensions: 3.6 Inch Width X 6 Inch Depth X 1.2 Inch Height
- Color: Black
