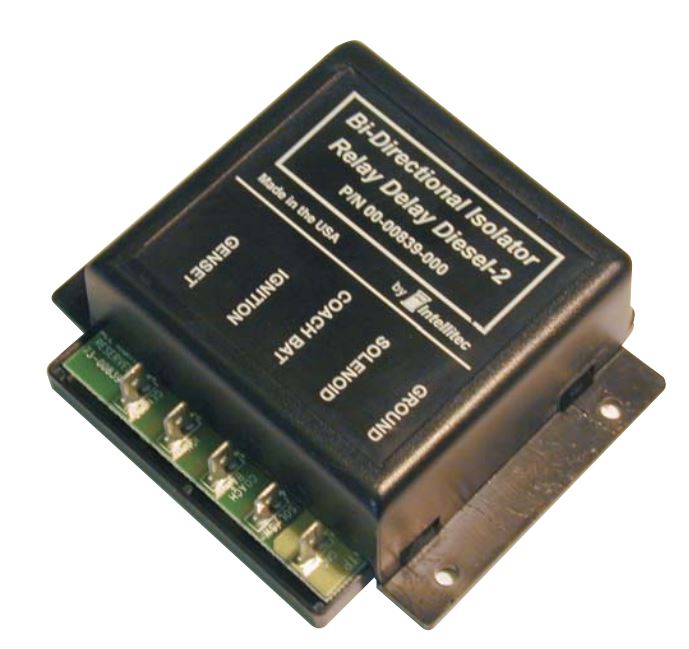

Intellitec Battery Isolator Relay Delay (MPN: 00-00839-000)

Efficiently manages battery charging and isolation for motor homes.

The Intellitec Battery Isolator Relay Delay (BIRD) is designed to enhance the functionality of battery management in motor homes. This unit allows for the charging of the coach battery from the engine alternator while also enabling the chassis battery to be charged from the converter when connected to shore power. By isolating the batteries when not in use, it prevents the discharge of one battery affecting the other, ensuring reliable performance during operation.

The BIRD operates in conjunction with a continuous duty solenoid, effectively managing the connection between the two batteries based on their voltage levels. It automatically closes the isolator relay when either battery exceeds 13.3 volts, allowing for simultaneous charging. This bi-directional functionality ensures that both batteries are maintained at optimal levels, enhancing the overall efficiency of the motor home’s electrical system.

Housed in a durable plastic enclosure, the BIRD is designed for easy installation under the hood, protecting it from direct water exposure. This robust design, combined with its technical capabilities, makes it a vital component for any motor home seeking reliable battery management and performance.

Features

• Operates In Conjunction With A Continuous Duty Solenoid To Provide The Isolator/Battery Charging Functions Of A Motor Home
• Senses Voltage On The Coach And Chassis Batteries
• Operates In Two Directions, Charging The Batteries From The Engine Alternator And Charging The Batteries From The Converter
• Housed In A Plastic Enclosure Suitable For Mounting Under The Hood, Out Of Direct Water Spray

Specifications

• Manufacturer: Intellitec
• Manufacturer Part Number: 00-00839-000
• Used For: Delays The Function Of The Isolator Relay When The Coach Is Started
• Voltage Rating: 12 Volts

Technical Documents

• 53-00839-000.pdf
• 53-00839-100.pdf
