Reliable 100 Amp Battery Disconnect for Vehicles and Boats

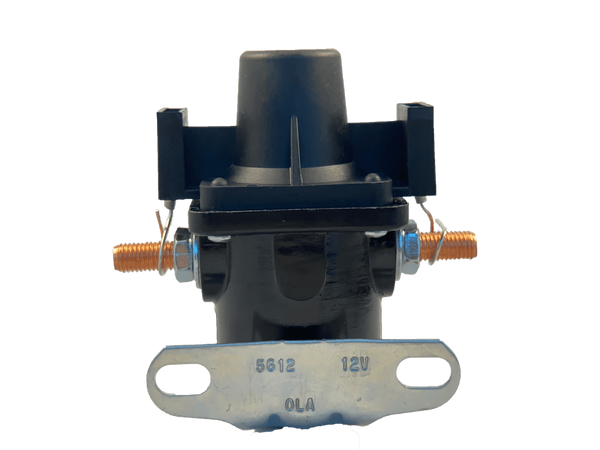

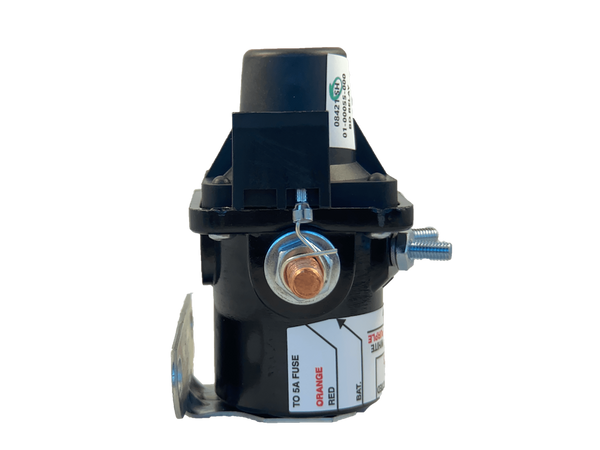

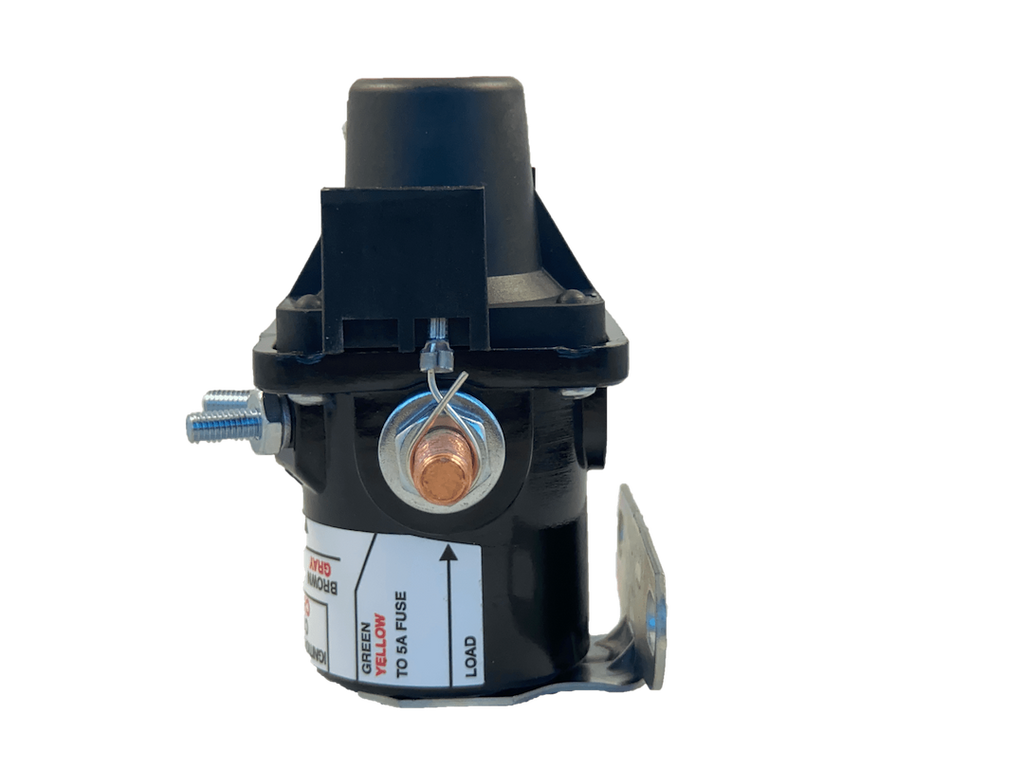

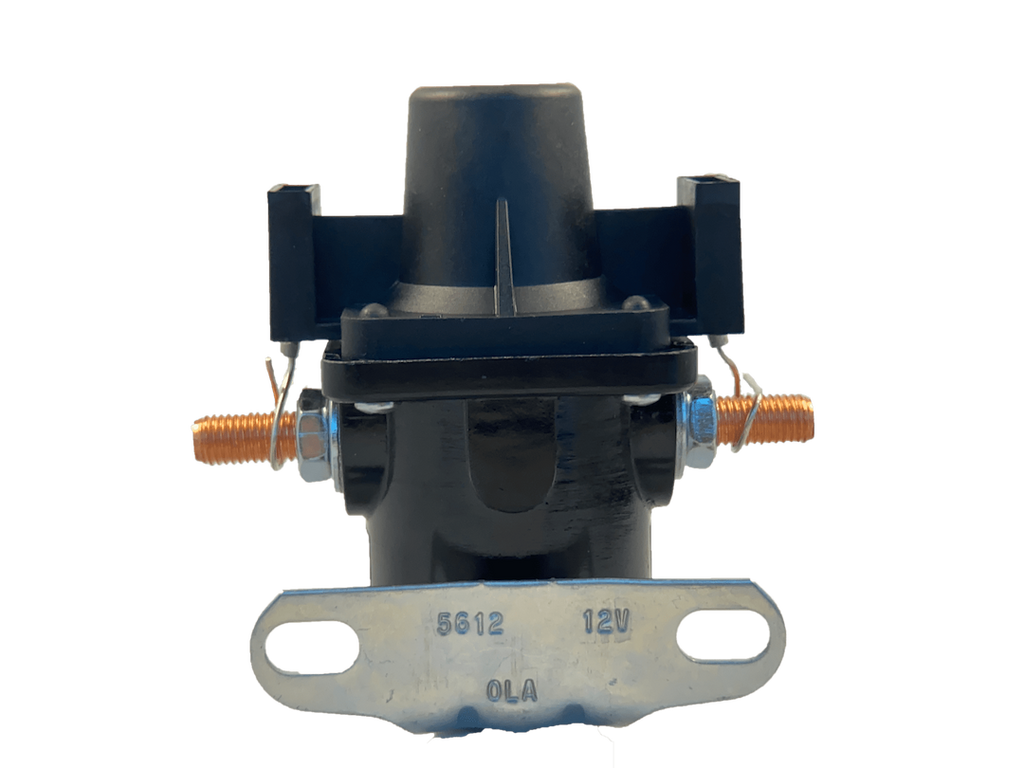

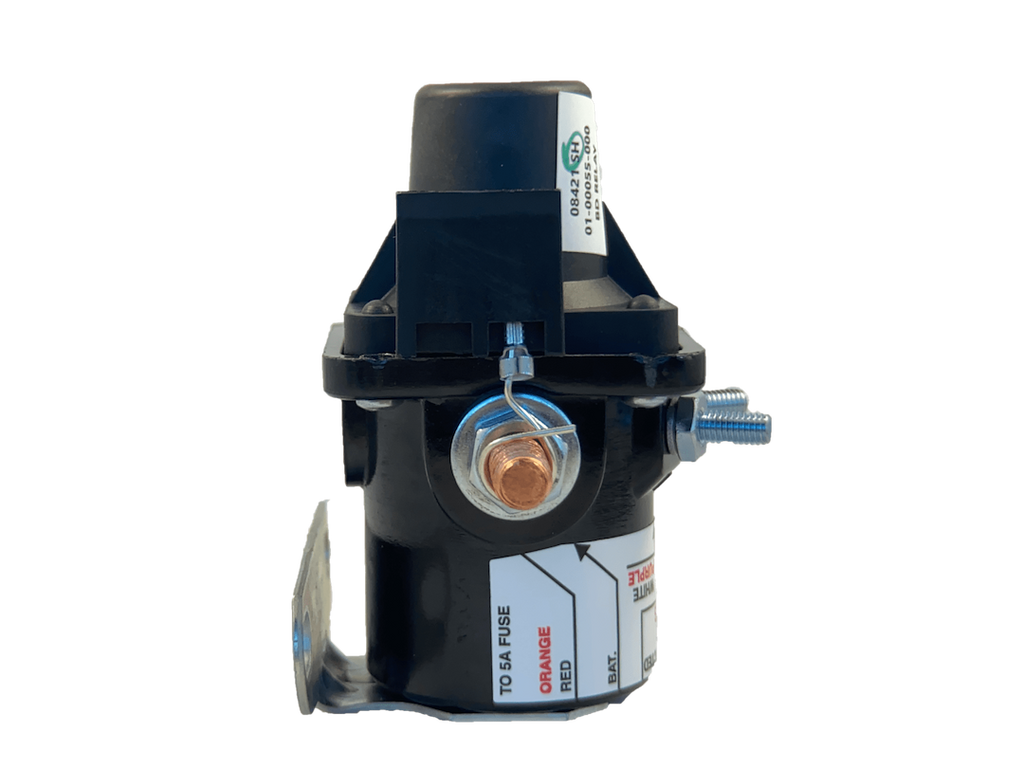

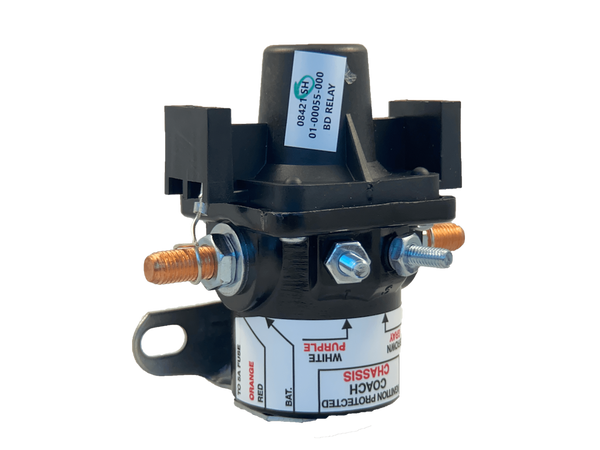

The Intellitec Battery Disconnect Solenoid is designed for efficient battery management in larger vehicles and boats. This 100 Ampere unit operates at 12 Volts and features a latching mechanism that minimizes power draw, only consuming energy during state changes. With an operating temperature range of -40 to 185 degrees Fahrenheit, it is built to withstand extreme conditions, ensuring reliable performance in various environments.
This solenoid is equipped with advanced contact material technology, significantly reducing the risk of long battery cables shorting to the chassis. The latching feature allows the disconnect to function without draining the battery, providing a practical solution for remote battery disconnection. The product comes complete with a harness, switch, install kit, and disconnect, making installation straightforward and efficient.
Intellitec is recognized as a leader in battery management, with over 2,000,000 units in operation globally. This solenoid is available in both fused and non-fused models, catering to diverse battery disconnect needs. Its robust design and reliable operation make it an essential component for effective battery management.
Features
- Provides A Simple, Reliable, And Cost Effective Means Of Remotely Disconnecting The Battery Of Larger Vehicles Or Boats
- Momentary Current Draw For Actuation (Open Or Closed)
- Uses Latest Contact Material Technology
- The Concern Of Long Battery Cables Shorting To The Chassis Is All But Gone
- Latching Feature Allows The Disconnect To Operate Without Discharging The Battery
Specifications
- Manufacturer: Intellitec
- Manufacturer Part Number: 01-00055-000
- Ampere Rating: 100 Amp
- Voltage Rating: 12 Volt
- Relay Type: Latching
- With Switch: Yes
- Operating Temperature: -40 To 185 Degree Fahrenheit
- With Mounting Hardware: Yes
Technical Documents
