Intellian Satellite TV System (MPN: B4-309DN2)

Advanced tracking and compatibility for seamless satellite TV access.

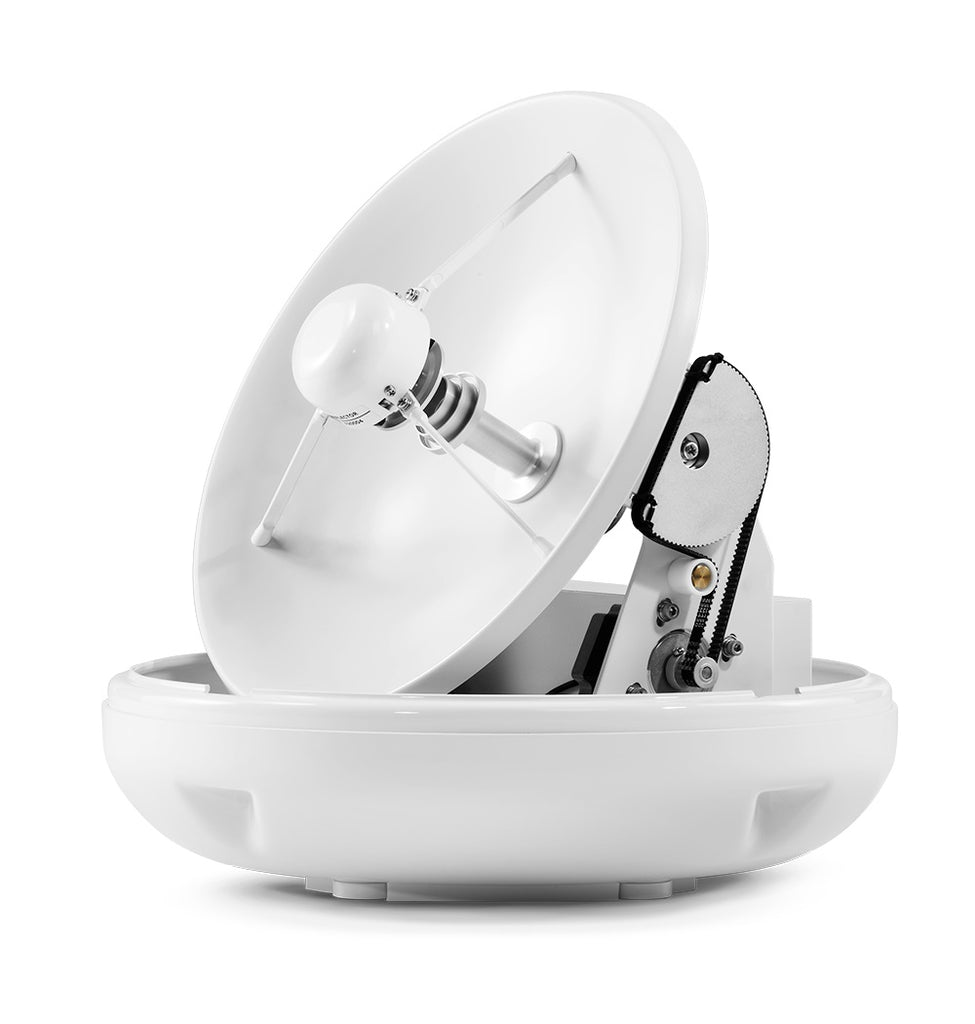

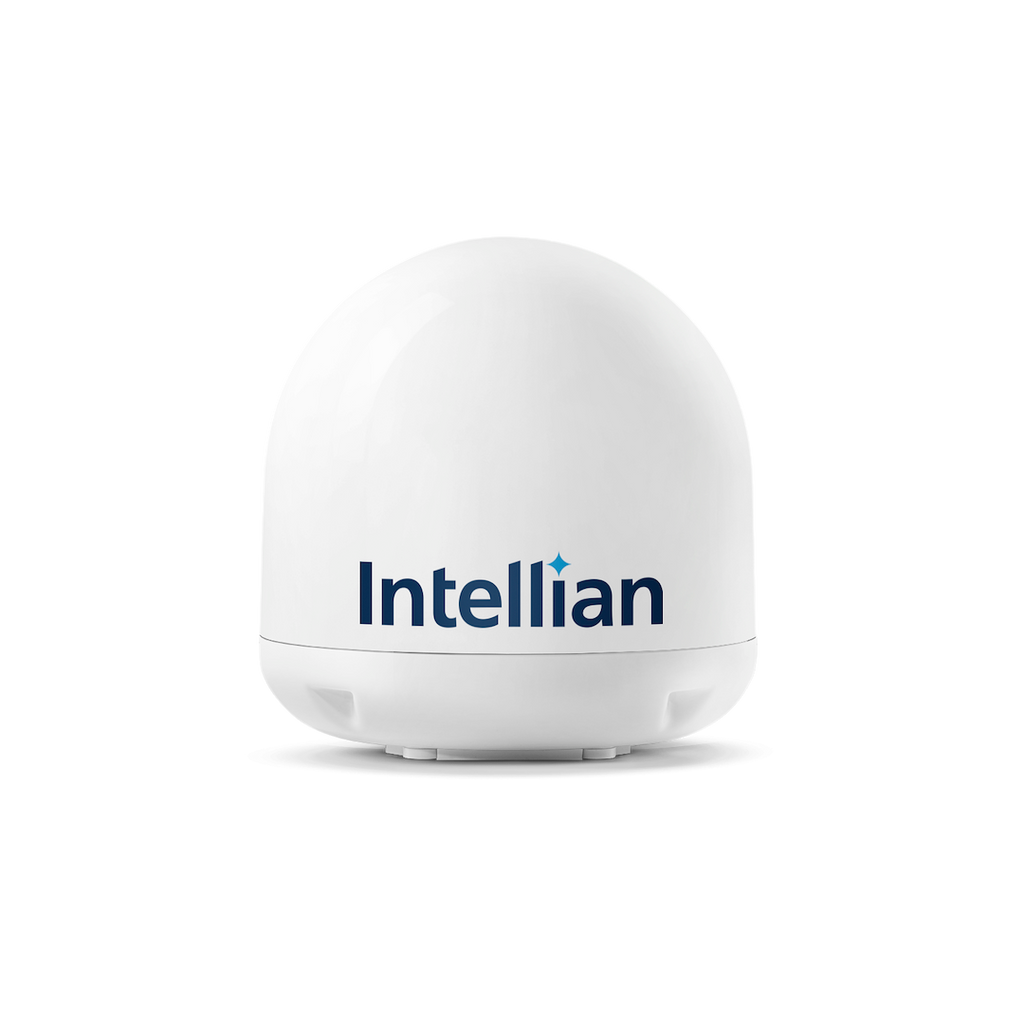

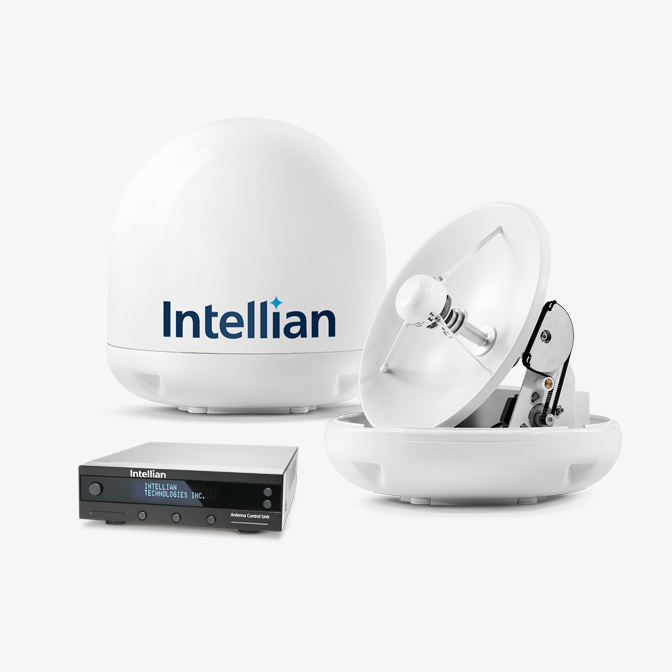

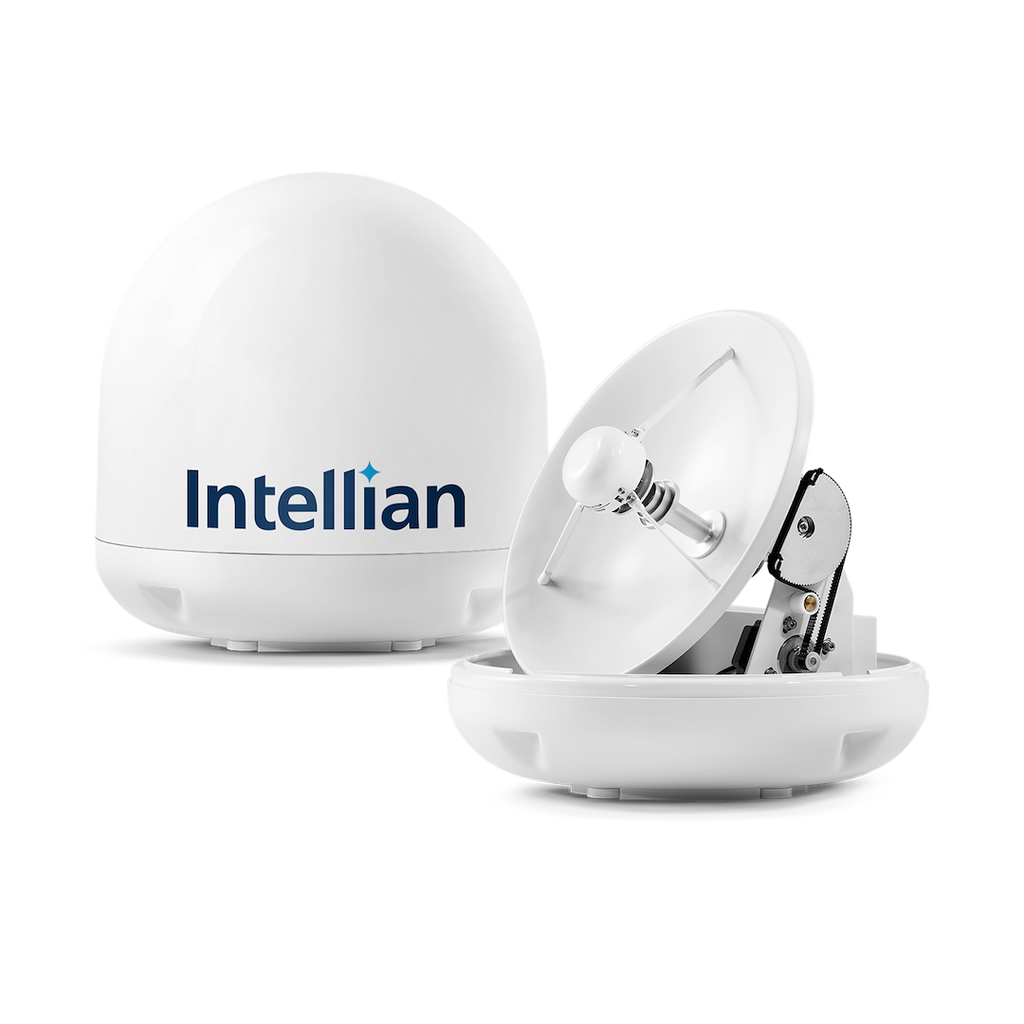

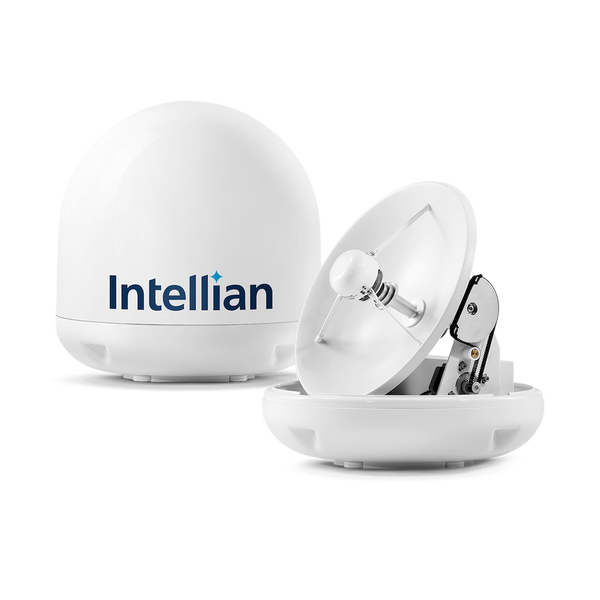

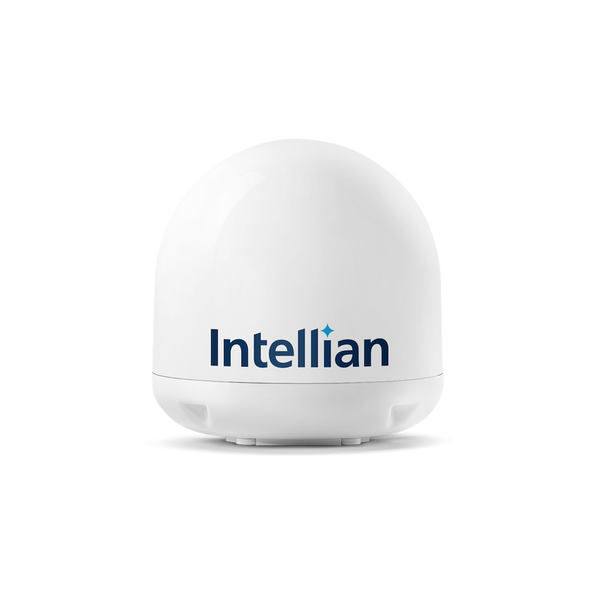

The Intellian i3 Satellite TV System offers exceptional tracking performance, making it a leading choice for marine applications. Designed for boats over 8 meters, this compact antenna system features a stylish dome and a high signal gain, ensuring reliable reception of Ku-Band satellite TV services from providers like DISH and Bell TV. With its built-in GPS, the i3 facilitates quick satellite acquisition, enhancing user experience while at sea or stationary.

This system is equipped with IQ² technology, allowing for rapid tuning and solid signal lock, which ensures uninterrupted viewing of favorite TV programming. The auto satellite switching function supports seamless transitions between three satellites, optimizing the viewing experience. Additionally, the Intellian i3 can connect multiple receivers and TVs through a multi-switch or the Intellian Multi-Satellite Interface Module, providing flexibility for various setups.

Constructed to withstand harsh marine environments, the i3 is IPX6 waterproof and operates effectively across a wide temperature range. Its lightweight design, with a diameter of 16.9 inches and a height of 17.3 inches, makes it easy to install without compromising performance. The system operates on a voltage range of 9 to 30 volts DC, making it versatile for different power setups.

Features

• Compact Form-Factor And Lightweight Antenna Delivers Remarkable Performance
• IQ² Technology Allows You To Tune In Quickly, Maintain A Solid Signal Lock, And Enjoy Your Favorite TV Programming In Quiet Comfort When Alongside Our Out At Sea
• Compatible With Leading Ku-Band Satellite TV Service Providers Around The World
• Auto Satellite Switching Function For Three Satellites As Used By Dish Network Or Bell TV In North America For A Seamless Viewing Experience
• Multiple Receivers And TVs Can Be Connected Using A Multi-Switch Or The Intellian Multi-Satellite Interface Module

Specifications

• Manufacturer: Intellian
• Manufacturer Part Number: B4-309DN2
• Tracking Type: Signal Tracking In-Motion And While Stationary
• Display Type: Digital
• HD Compatible: Yes
• Waterproof: IPX6 Waterproof
• Dimensions: 16.9 Inch Diameterx17.3 Inch Height Antenna/7 Inch Widthx8.5 Inch Depthx2.1 Inch Height Control Unit
• Frequency: 10 To 12.75 Gigahertz
• Operating Temperature: -13 Degree Fahrenheit To 131 Degree Fahrenheit
• Voltage: 9 To 30 Volt DC
• Includes: DC Power Cable/ NMEA 0183 Interface Port

Technical Documents

• i3,_i3L,_i4,_i4p_Installation_Guide.pdf
• MIM2_receiver_setup.pdf
• i3-i3L-i4-i4p_User_Manual.pdf
• i3_Installation_Template_(PDF).pdf
• i3,i3L_System_Diagram.pdf
• MIM_2_DS_2021_1001.pdf
• i3_Radome_Drawing_(PDF).pdf
• MIM_2_DS_2021_1001.pdf
• MIM_2_QG-K00227-V1.0_HC_210803.pdf
• i3_Installation_Template_(PDF).pdf
• i3,i3L_System_Diagram.pdf
• i3-i3L-i4-i4p_User_Manual.pdf
• MIM_2_QG-K00227-V1.0_HC_210803.pdf
• MIM2_receiver_setup.pdf
• i3_Datasheet.pdf
• i3_Radome_Drawing_(PDF).pdf
• i3_Datasheet.pdf
• i3,_i3L,_i4,_i4p_Installation_Guide.pdf
