Advanced satellite tracking for seamless TV reception on vessels.

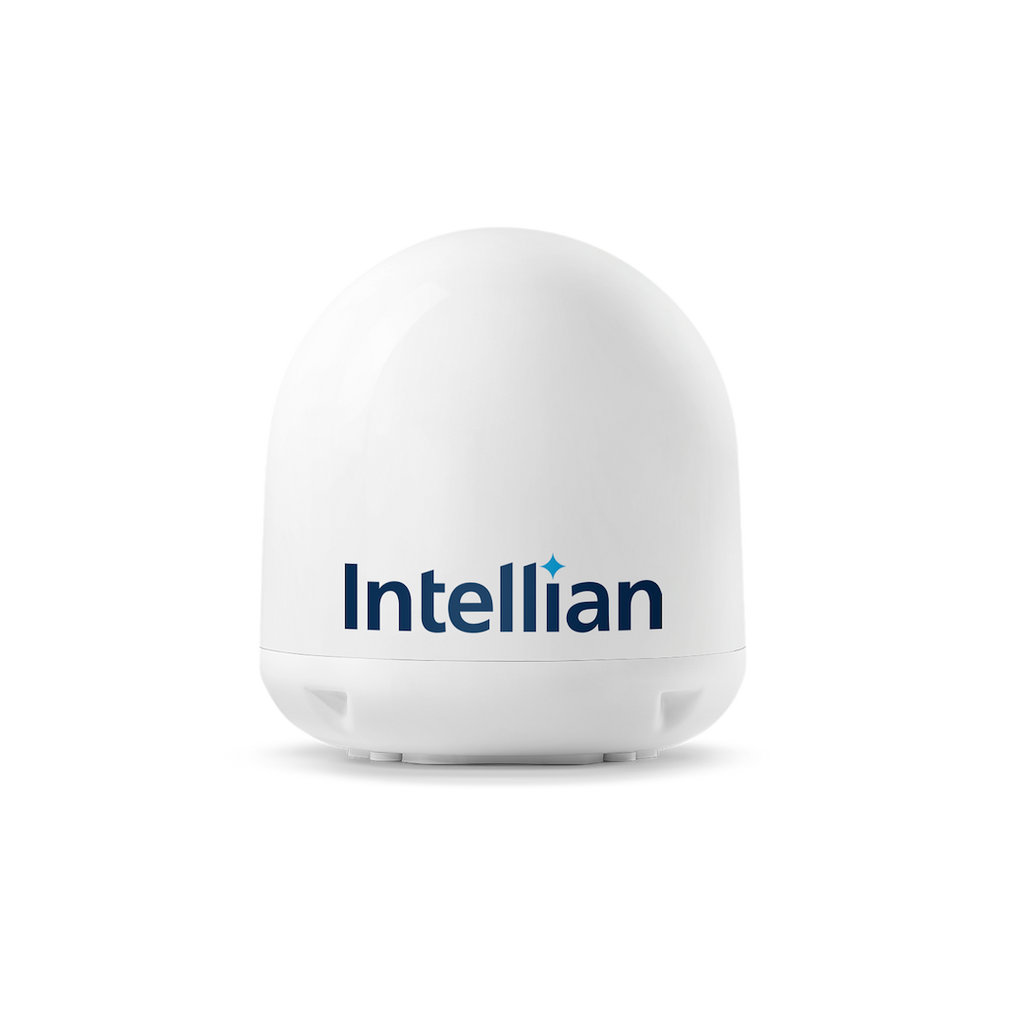

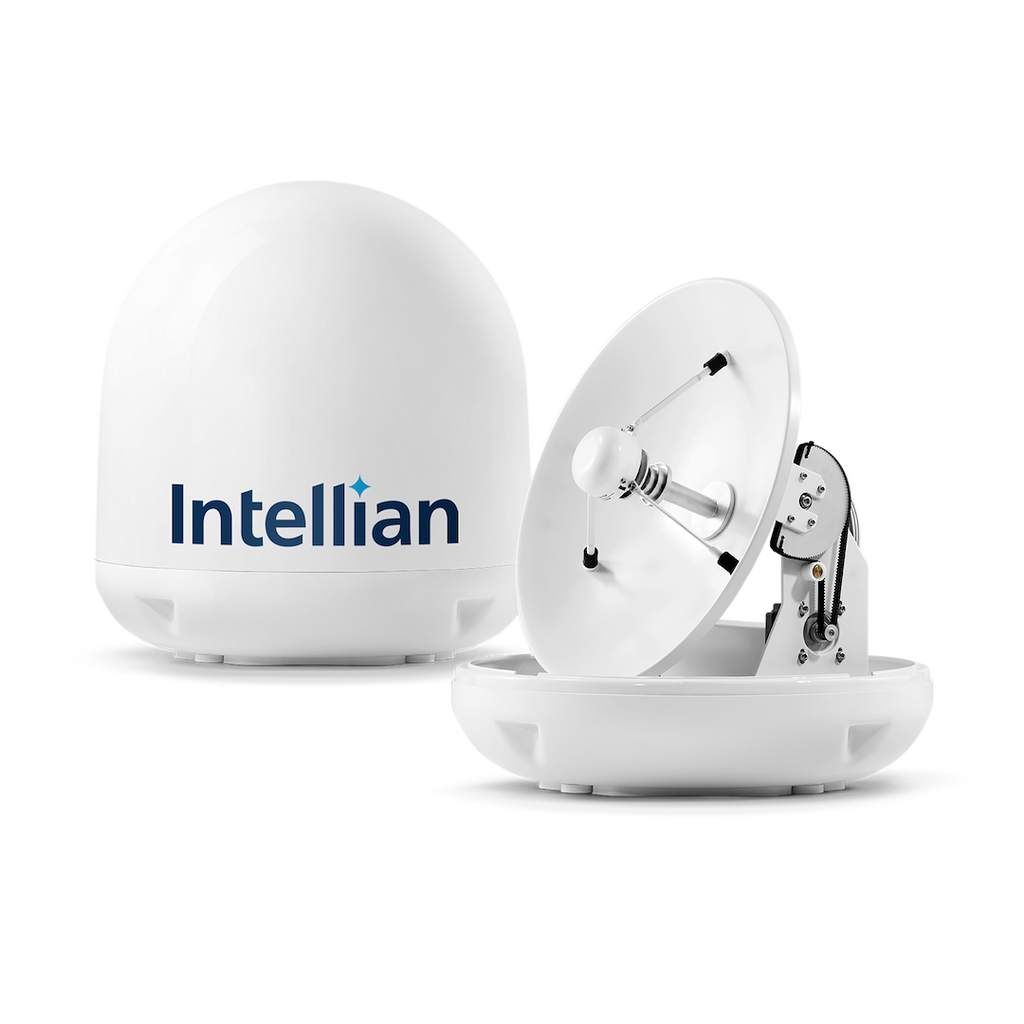

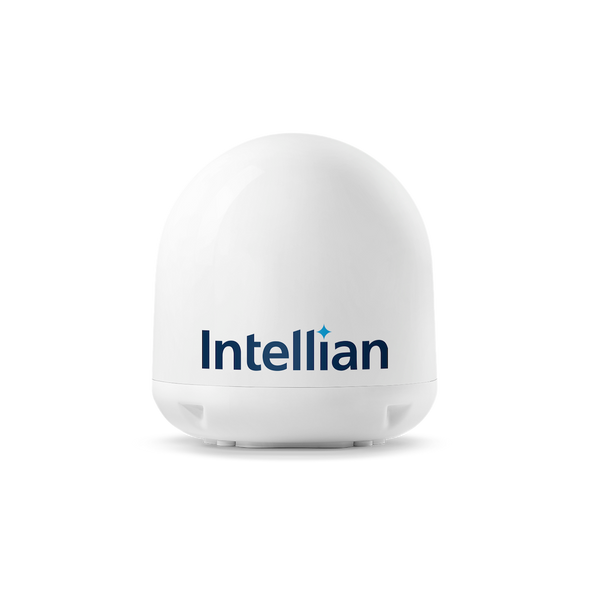

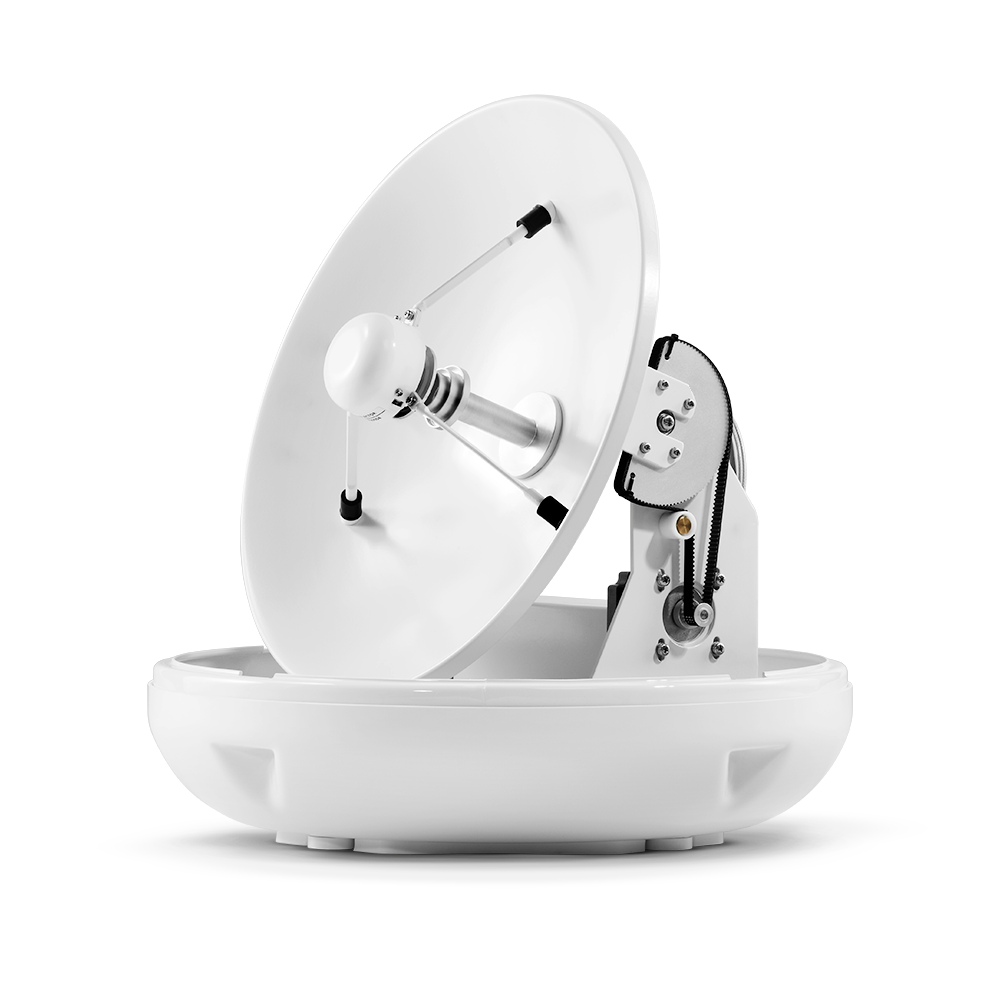

The Intellian i4 is a sophisticated digital satellite antenna system engineered for various types of vessels, whether stationary or in transit. This system is designed to automatically identify, track, and capture signals from Ku-Band satellite services, ensuring reliable access to digital television broadcasts. With its Wide Range Search algorithm, the i4 minimizes initialization time, while the Dynamic Beam Tilting technology enhances signal stability by dynamically adjusting the antenna beam to maintain optimal tracking of satellites.

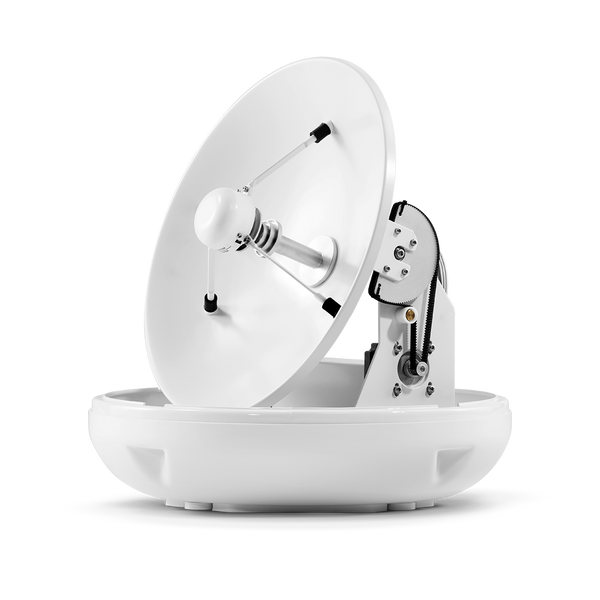

Equipped with a built-in GPS and NMEA 0183 interface, the Intellian i4 accelerates satellite signal acquisition, making it a highly efficient solution for marine environments. The antenna features a highly efficient parabolic design that provides a minimum EIRR of 49dBW, supporting both RHCP and LHCP polarizations. The user-friendly antenna control unit includes an intuitive digital display, simplifying operation and installation.
The i4 is built to withstand harsh marine conditions, boasting an IPX6 waterproof rating and an operating temperature range from -13 to 131 degrees Fahrenheit. This robust construction, combined with its advanced tracking capabilities, makes the Intellian i4 a reliable choice for uninterrupted satellite TV service on the water.
Features
- Fully Automated System: Automatic Satellite Search And Identification
- Enhanced Antenna Highly Efficient Parabolic Antenna Enables 49dBW Of Minimum EIRR RHCP And LHCP, Vertical Or Horizontal Polarization
- Wide Range Search Algorithm Competitor Methods Search For The Narrow-Bandwidth Of The Main Lobe
- DVB-S2 Signal Identification High Speed Identification Employing DVB-S2 Decoder

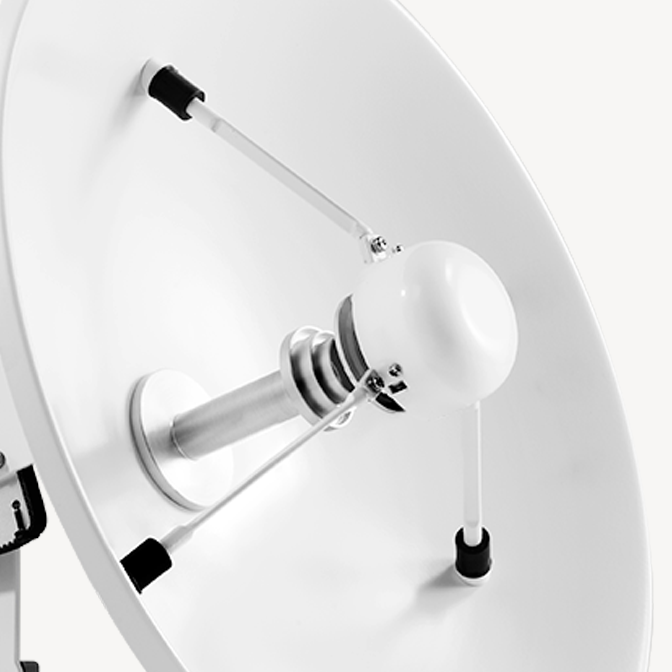

- Dynamic Beam Tilting Technology A High-Speed Sub Reflector Rotates Off Axis, Checking Signal Strength At 50 Times Per Second And Compensating The Tracking Direction

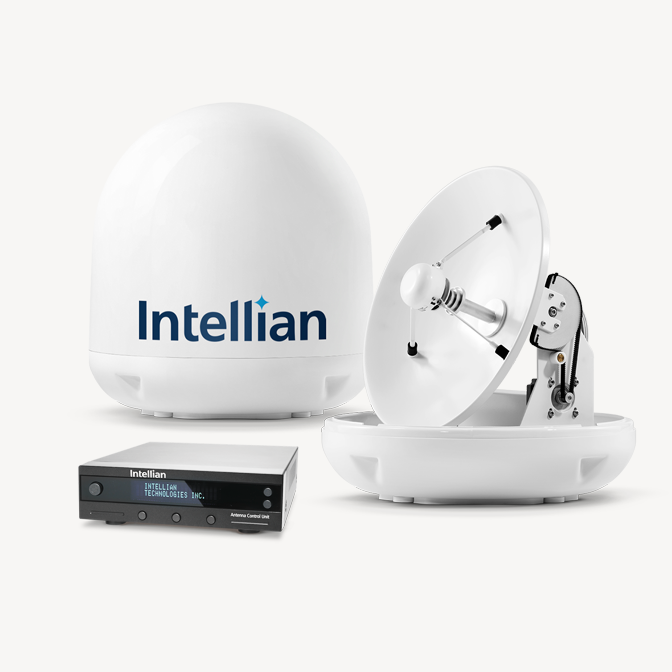

- New Type Antenna Control Unit: Intuitive Controls With A Digital Information Display On The ACU
- Built-In GPS And NMEA 0183 Interface Port The I3 Features A Built-In GPS Inside Of The Antenna Unit For Faster Signal Acquisition
- User-Friendly Operation
- Simple And Easy Installation
Specifications
- Manufacturer: Intellian
- Manufacturer Part Number: B4-409AA
- Compatibility: Ku-Band Satellite TV Service
- Tracking Type: Signal Tracking In-Motion And While Stationary
- Display Type: VFD
- HD Compatible: Yes
- Waterproof: IPX6 Waterproof

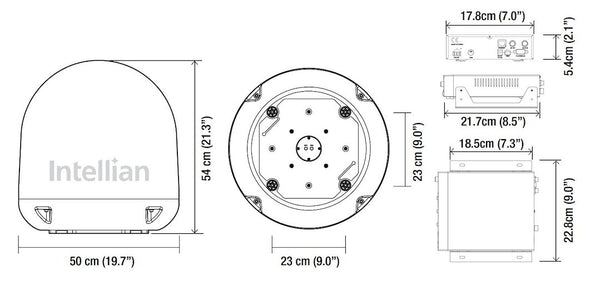

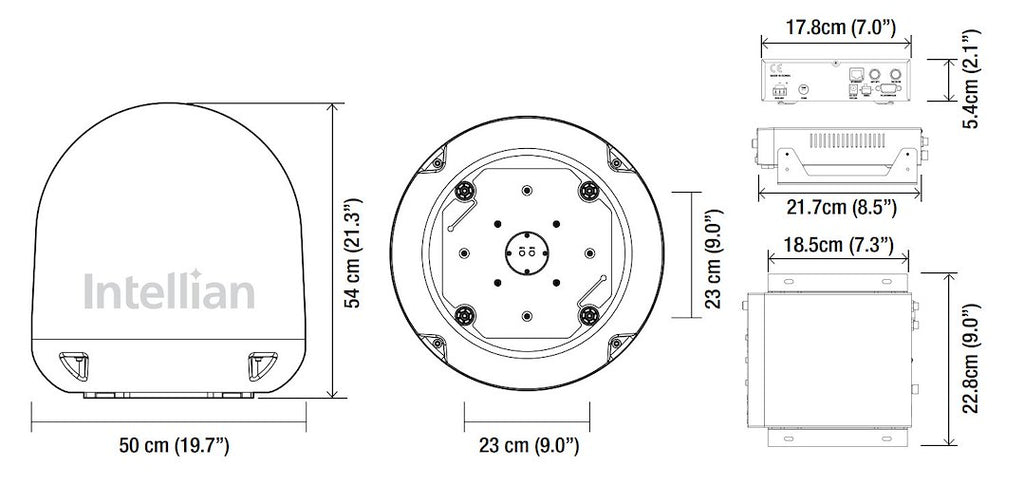

- Dimensions: 19.7 Inch Diameter x 21.2 Inch Height
- Frequency: 10.7 To 12.75 Giga Hertz
- Operating Temperature: -13 Degree Fahrenheit To 131 Degree Fahrenheit
- Voltage: 9 To 30 Volt DC
- Includes: With Built-In GPS/ NMEA 0183 Interface Port/ Antenna Control Unit/ 17.7 Inch Antenna Reflector/
