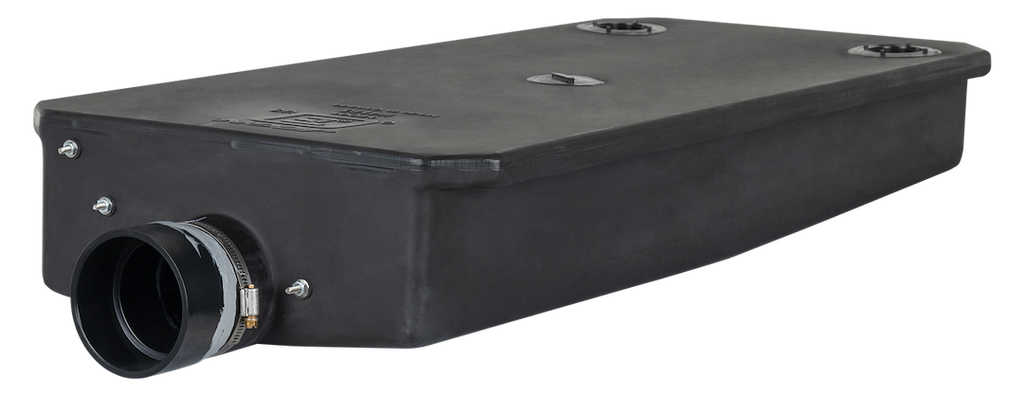

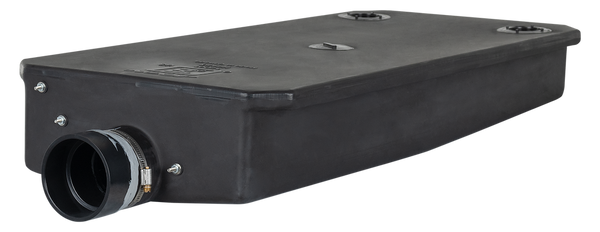

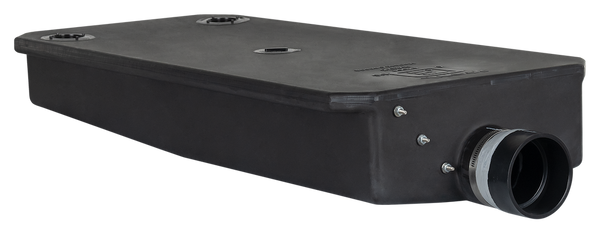

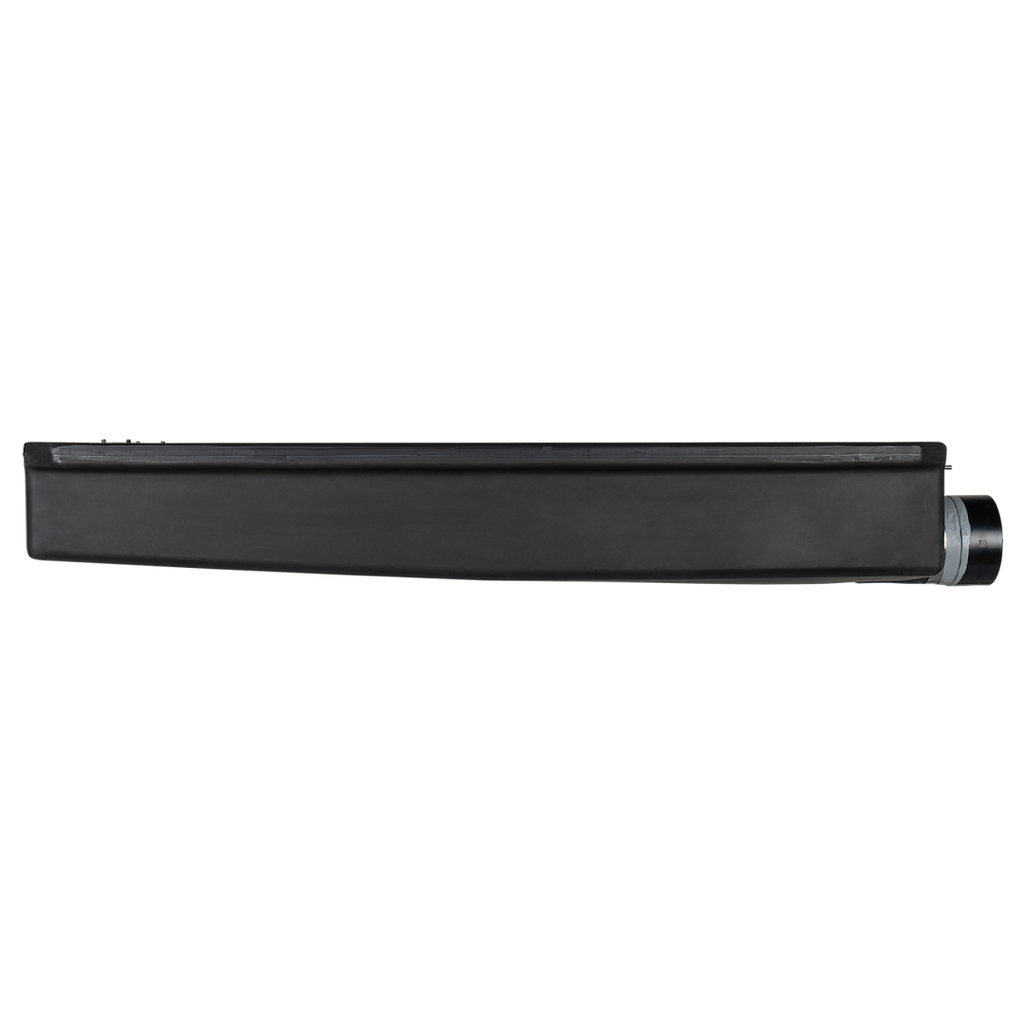

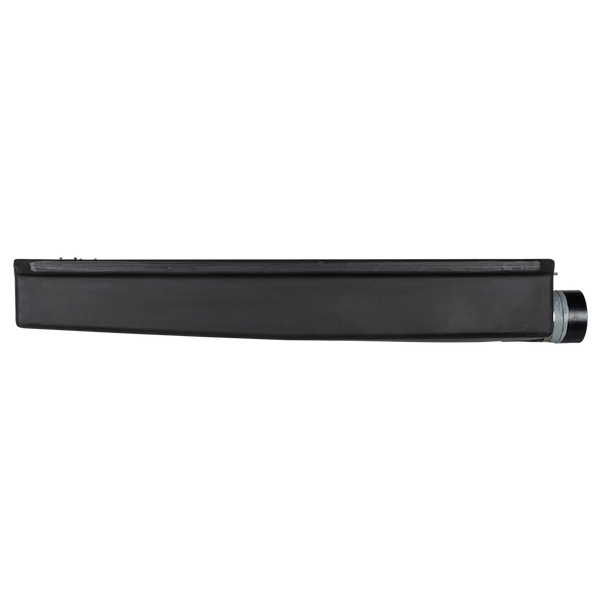

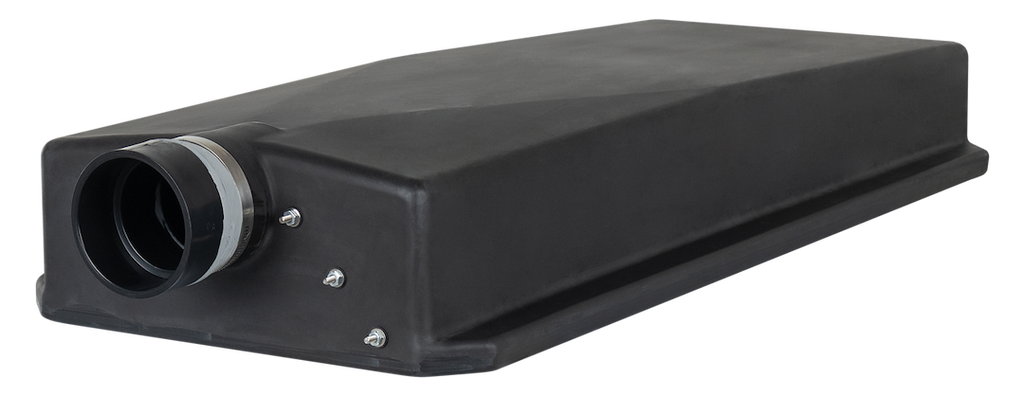

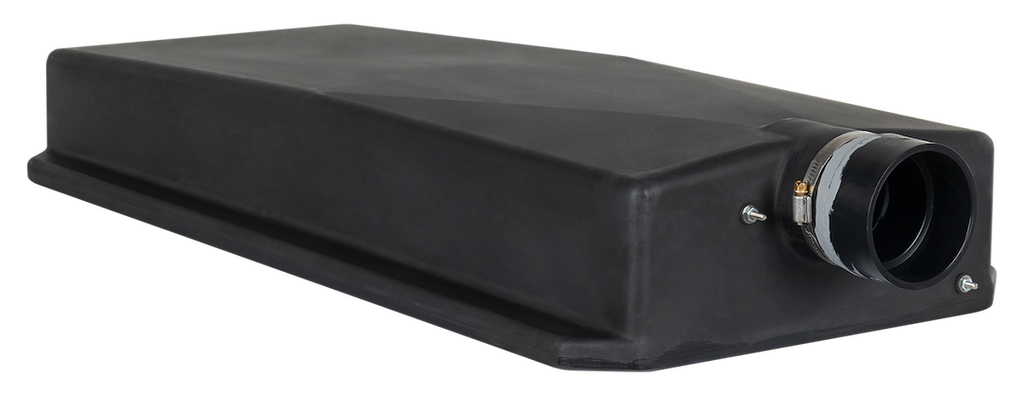

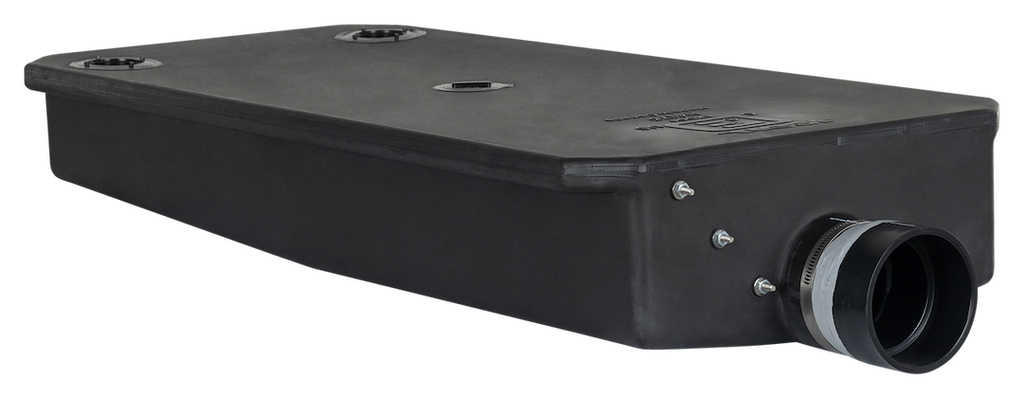

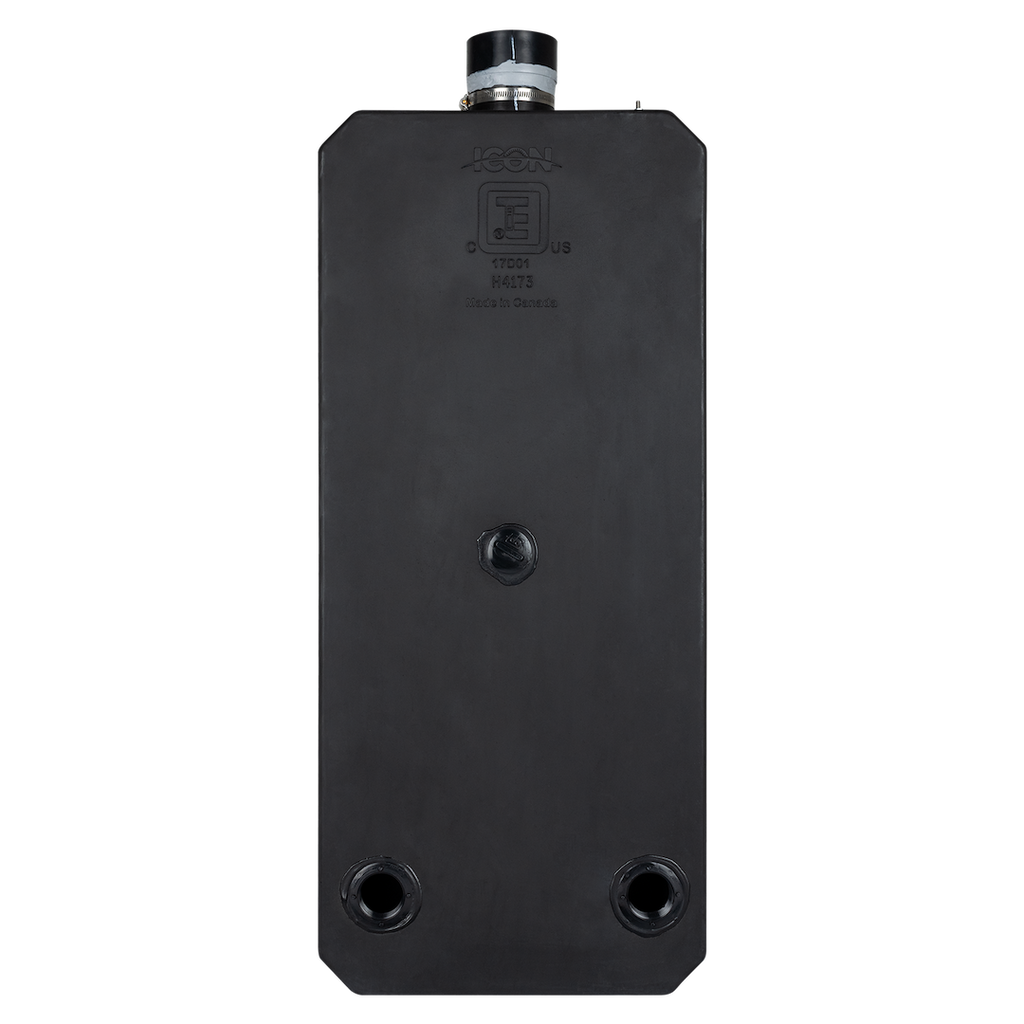

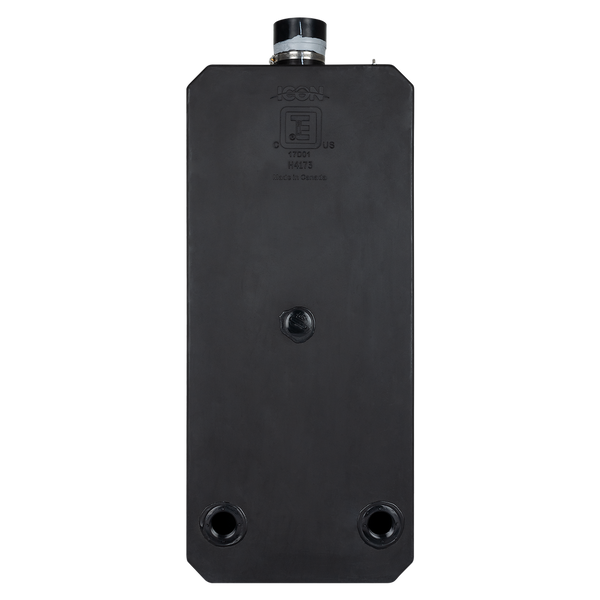

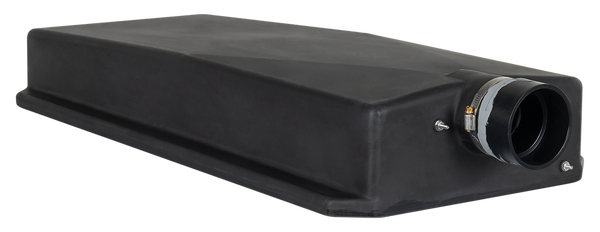

Icon Waste Holding Tank (MPN: 15187)

Durable 10 Gallon Waste Holding Tank for RVs and Trailers

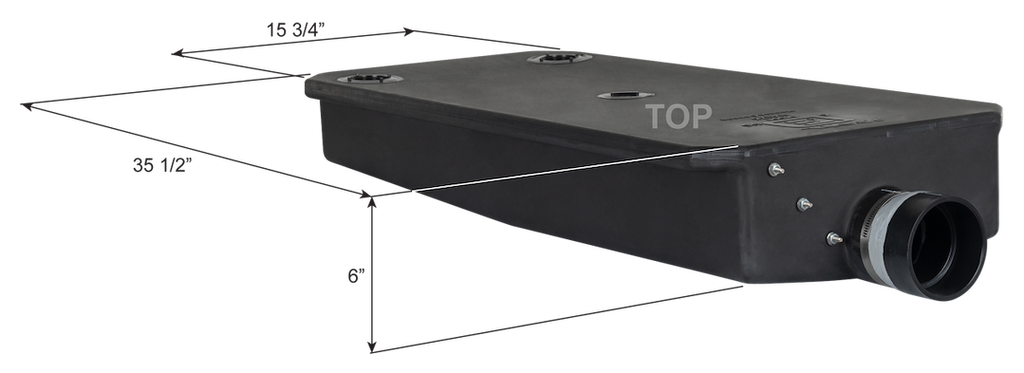

The Icon Waste Holding Tank is designed for use with RV fifth wheels, travel trailers, and campers, providing a reliable solution for waste management. With a capacity of 10 gallons, this tank measures 35-1/2 inches in length, 15-3/4 inches in width, and 6 inches in height, making it a compact yet efficient option for various RV setups. Constructed from tough ABS plastic, the tank ensures long service life and durability, capable of withstanding the rigors of travel and use.

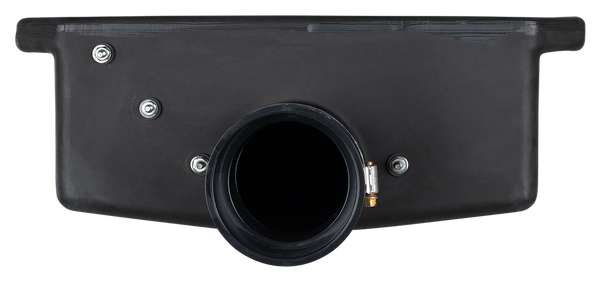

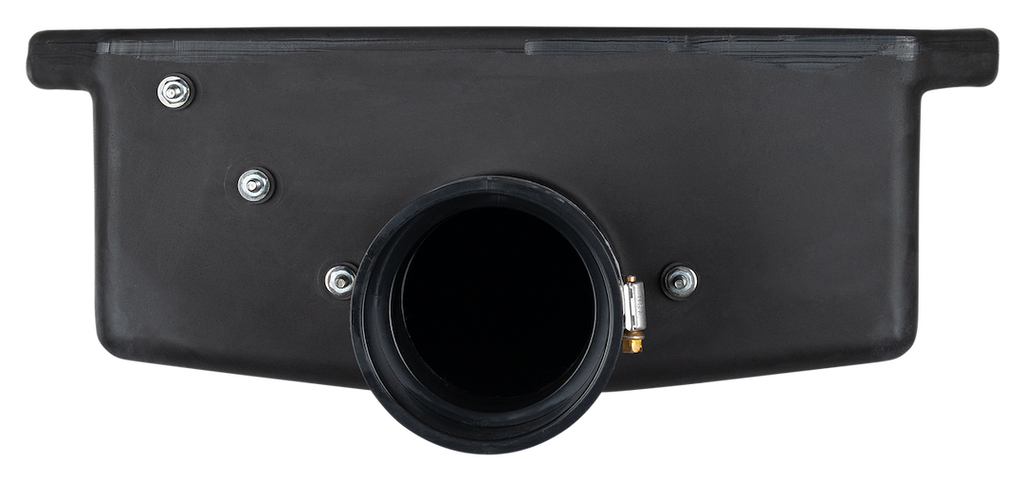

This holding tank features a center side drain location and includes a 3-inch diameter spigot fitting for easy waste disposal. The roto-molded, one-piece construction with spin welded components enhances its structural integrity, reducing the risk of leaks and damage. Additionally, the tank is equipped with two 1-1/2 inch raised threaded fittings and four tank level sensors, providing essential functionality for monitoring waste levels.

Manufactured in the USA, the Icon Waste Holding Tank is an excellent choice for those looking to replace a leaky or damaged tank or to upgrade their holding tank capacity. Its thoughtful design and robust materials make it a dependable addition to any RV waste management system.

Features

• Constructed Of Tough ABS Plastic For Long Service Life
• Roto-Molded, One Piece Construction With Spin Welded Components
• 10 Gallon Capacity - Center End Drain
• Made In USA

Specifications

• Manufacturer: Icon
• Manufacturer Part Number: 15187
• Capacity: 10 Gallon

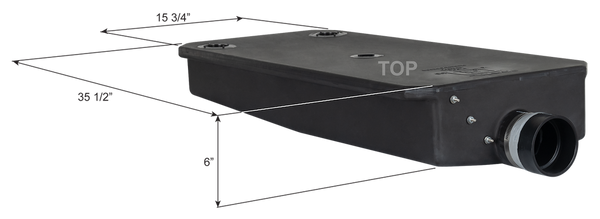

• Length: 35-1/2 Inch
• Width: 15-3/4 Inch
• Height: 6 Inch
• Outlet Size: 3 Inch
• Material: ABS Plastic
• Color: Black
• Mounting Type: Flange Mount
• With Spigot Fittings: Yes
• With Level Sensors: Yes

Technical Documents

• ICON_Product_Warranty.pdf
