Enhance your Toyota Tacoma's performance with adjustable lift and superior damping.

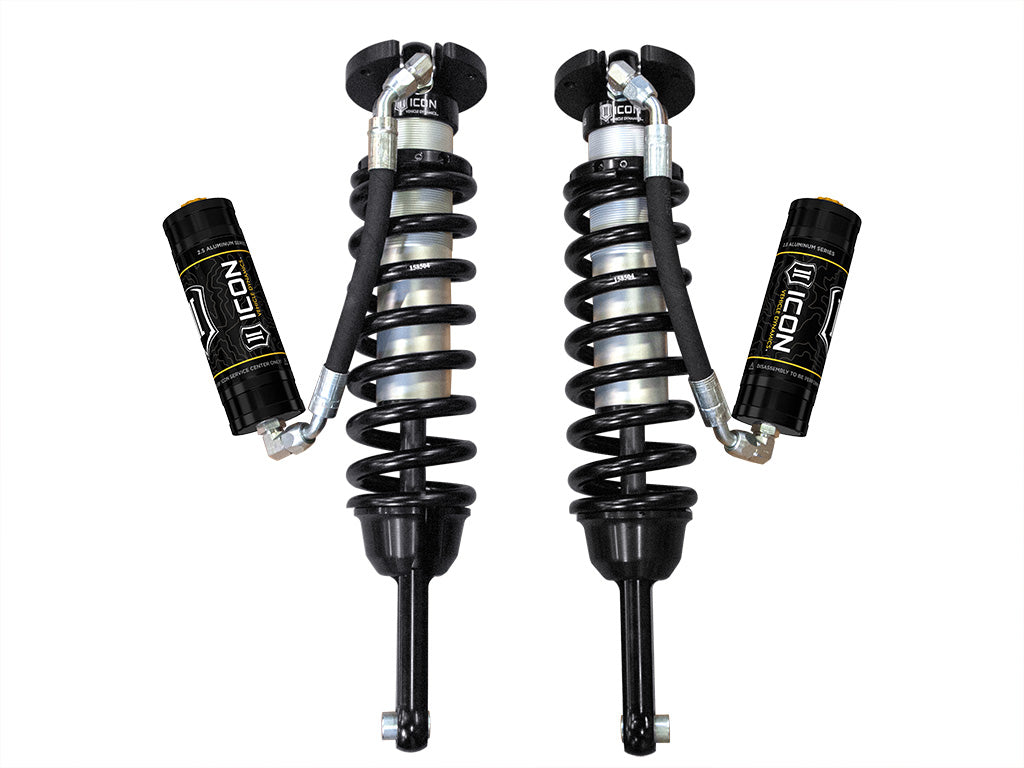

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are engineered for the 2005 to 2023 Toyota Tacoma, providing a significant enhancement to suspension performance. These coilovers offer adjustable lift heights of up to 3.5 inches for 2005 to 2015 models and 2.75 inches for 2016 to 2023 models, accommodating larger wheel and tire combinations. The design features a 2.5 inch shock body and optimized valving for improved ride quality and maximum travel, ensuring superior control both on and off-road.
The inclusion of remote reservoirs increases oil volume and enhances heat dissipation, preventing overheating during demanding conditions. This design is complemented by a CAD-plated threaded body and a billet aluminum upper mount, ensuring durability and reliability. The extended travel length necessitates the installation of aftermarket front upper control arms, which further enhances vehicle handling and stability.
These coilovers are built to be completely rebuildable, allowing for long-term use and maintenance. The gas-charged shock type and non-adjustable valving provide consistent performance, while the pigtail spring design ensures optimal support. With a sleek black and gray finish, these shocks not only perform well but also enhance the aesthetic of your Tacoma.
Features
- Height-Adjustable Coilovers Offer 0 To 3-1/2 Inch Or 0 To 2-3/4 Inch Of Lift Height Adjustment Depending On Year Model
- Vehicle Specific Tuned For Superior Shock Damping And Control
- Extended Travel Length Requires Installation Of Aftermarket Front Upper Control Arms
- CAD-Plated Threaded Body
- Billet Aluminum Upper Mount
- 5/8 Inch PTFE-Lined Spherical Bearing
- Completely Re-Buildable
- Hose Length Optimized For Increased Fluid Transfer
- External Reservoirs Ensures Maximum Cooling
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 58735
- Adjustable: No
- Upper Mounting Type: Stud
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 0 To 3 Inch Lift
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Quantity: Set Of 2
- Valving Type: Non Adjustable Valving
- Shock Type: Gas Charged
- Shock Body Color: Black/ Gray
- Shock Body Material: Aluminum
- Spring Style: Pigtail
- Spring Color: Black
- Includes Mounting Hardware: No
Compatibility / Fit
- 2005-2023 Toyota Tacoma
