Enhance your Ford Bronco's performance with adjustable lift and superior damping.

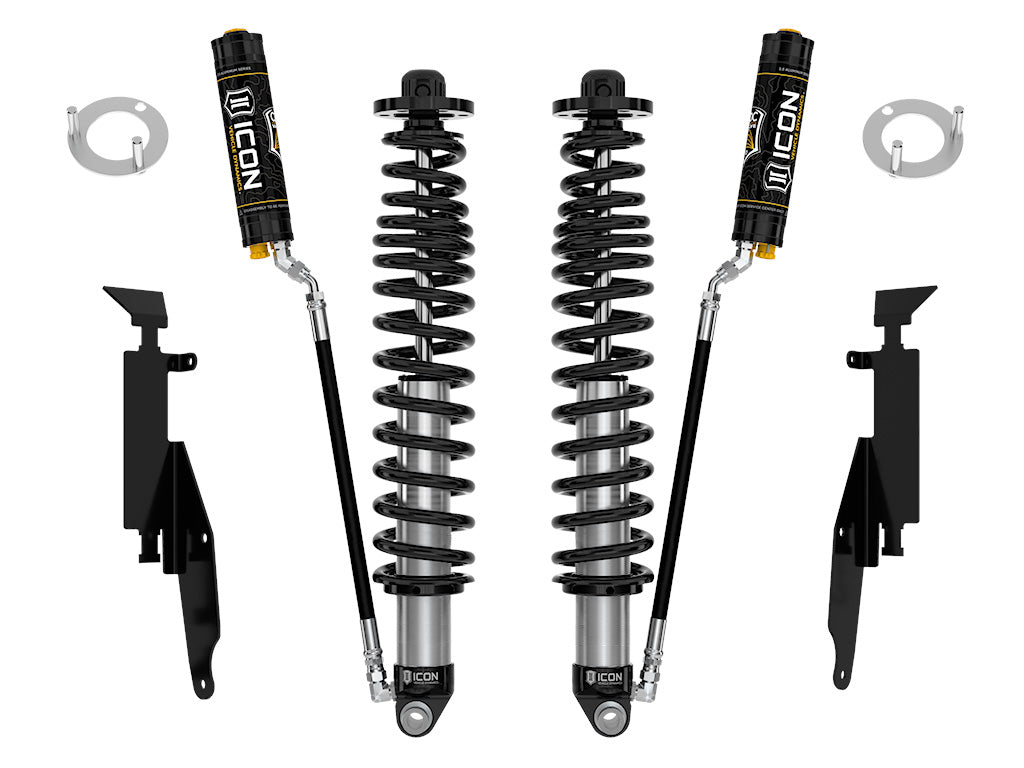

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks are engineered for the 2021 to 2023 Ford Bronco, providing significant enhancements in suspension performance. These adjustable coilovers offer a lift height range of 1-1/4 to 3 inches for non-Sasquatch models and 1-1/4 to 2-1/4 inches for Sasquatch equipped Broncos, facilitating the installation of larger wheel and tire combinations. The design features a larger 2-1/2 inch shock body and increased piston area, which contribute to improved travel and ride quality both on and off-road.
The remote reservoirs increase oil volume and heat dissipation, effectively preventing overheating and cavitation during demanding conditions. ICON's exclusive Compression Damping Control Valves allow for precise tuning of suspension performance, accommodating various driving scenarios from street use to off-road challenges. The coilovers are mounted in a shaft up orientation, featuring unique dual rate coil springs that enhance weight capacity for heavily loaded Broncos while maintaining optimal performance.
Installation is straightforward with a 100 percent bolt-on design, requiring no drilling or cutting. The shocks are constructed from corrosion-resistant materials and include FK rod end bearings for durability and minimal deflection. When paired with ICON 2.5 Series front coilovers, these rear shocks ensure balanced vehicle control, enhancing the overall driving experience.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Increased Wheel Travel Up To 14 Inch And Ride Quality Over Stock
- Vehicle Specific Tuned For Superior Shock Damping And Control
- Adjustable Up To 2 To 3 Inch Of Rear Lift Height On Non-Sasquatch Or 1-1/4 Inch To 2-1/4 Inch Of Rear Lift On Sasquatch Broncos
- Unique ICON Engineered Dual Rate Coil Springs With Increased Spring Rates For Heavier Equipped Broncos
- Corrosion Resistant CAD Plated Shock Bodies With 7/8 Inch Diameter Shaft
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- Fully Rebuildable And Re-Tunable
- 100 Percent Bolt-On: No Drilling, Cutting Or Welding Necessary For Installation
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 48711C
- Adjustable: Yes
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 1-1/4 To 3 Inch Lift
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Quantity: Set Of 2
- Valving Type: Application Specific Valving
- Shock Type: Gas Charged
- Shock Body Color: Black/ Gray
- Shock Body Material: Aluminum
- Spring Style: Pigtail Spring
- Spring Color: Black
- Spring Material: Steel
- Includes Mounting Hardware: Yes
Compatibility / Fit
- 2021-2026 Ford Bronco
