Enhance performance and handling for 2020-Up GM HD trucks.

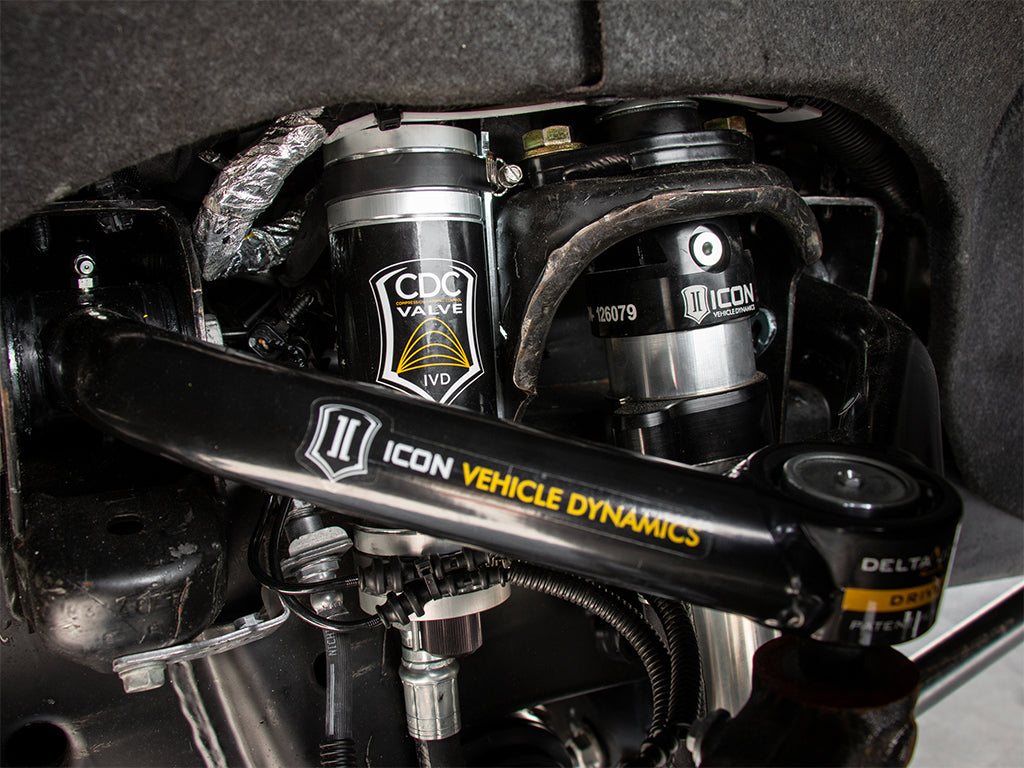

The Icon Vehicle Dynamics Tubular Upper Control Arm Kit is designed to elevate the performance of 2020-Up GM HD trucks. Constructed from CNC bent 1026 DOM steel tubing, these control arms are powder coated in a semi-gloss black finish, ensuring maximum strength and resistance to corrosion. The built-in caster correction feature optimizes alignment specifications, enhancing handling and stability during operation.

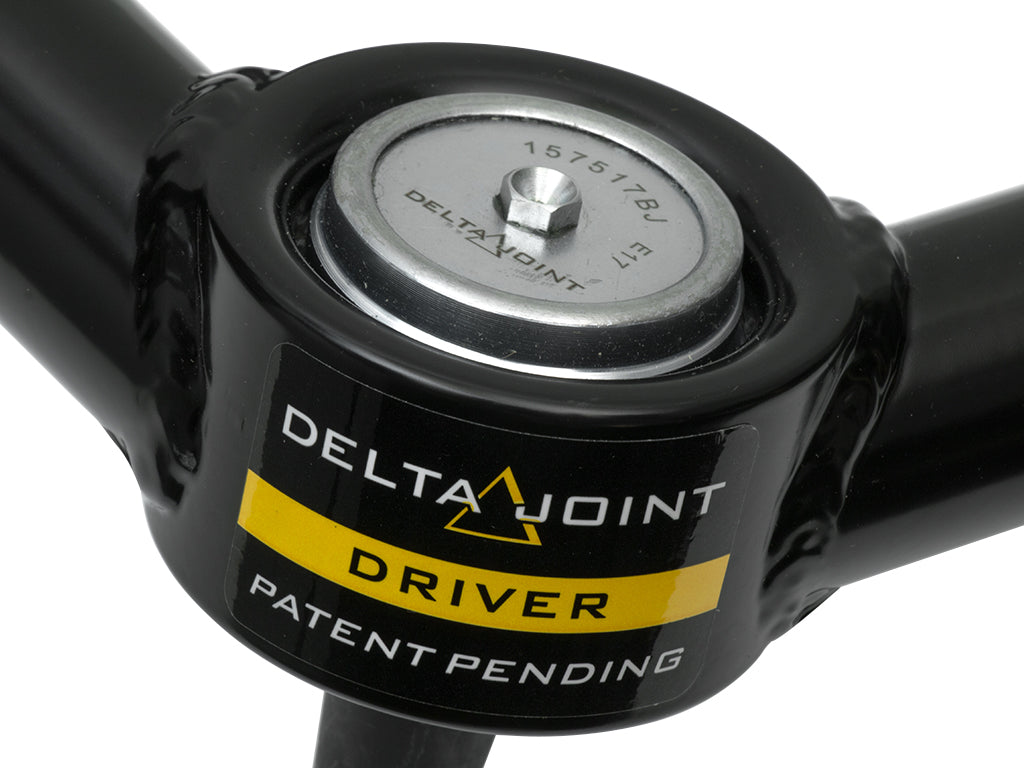

A key advantage of this kit is the increased wheel travel when paired with Icon's 2.5 series shock absorbers, resulting in superior ride quality and performance. The patented Delta Joint combines the durability of a traditional ball joint with the articulation benefits of a uniball, providing enhanced performance in daily driving conditions. The zinc plated housing and grease seal protect the joint from environmental elements, ensuring longevity and reliability.
Additional features include an internal bump zone that increases damping by 20 percent, premium grade shock oil for consistent performance across temperatures, and a robust design with 6061 aircraft grade aluminum components. This kit is fully rebuildable and revalveable, allowing for maintenance and adjustments to suit specific driving needs.
Features
- ICON's Internal "Bump Zone" Increases Damping By 20 Percent To Provide More Control As The Shock Approaches Full Compression
- Premium Grade 5WT Shock Oil For Consistent Suspension Damping Along A Wide Temperature Range
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shaft
- One-Piece Impact Extruded Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- 6061 Aircraft Grade Aluminum CNC Machined Components
- 100 Percent Rebuildable And Revalveable
- CNC Bent Tubing, Machined Bushing Housings And Sleeves
- Built-In Caster Correction

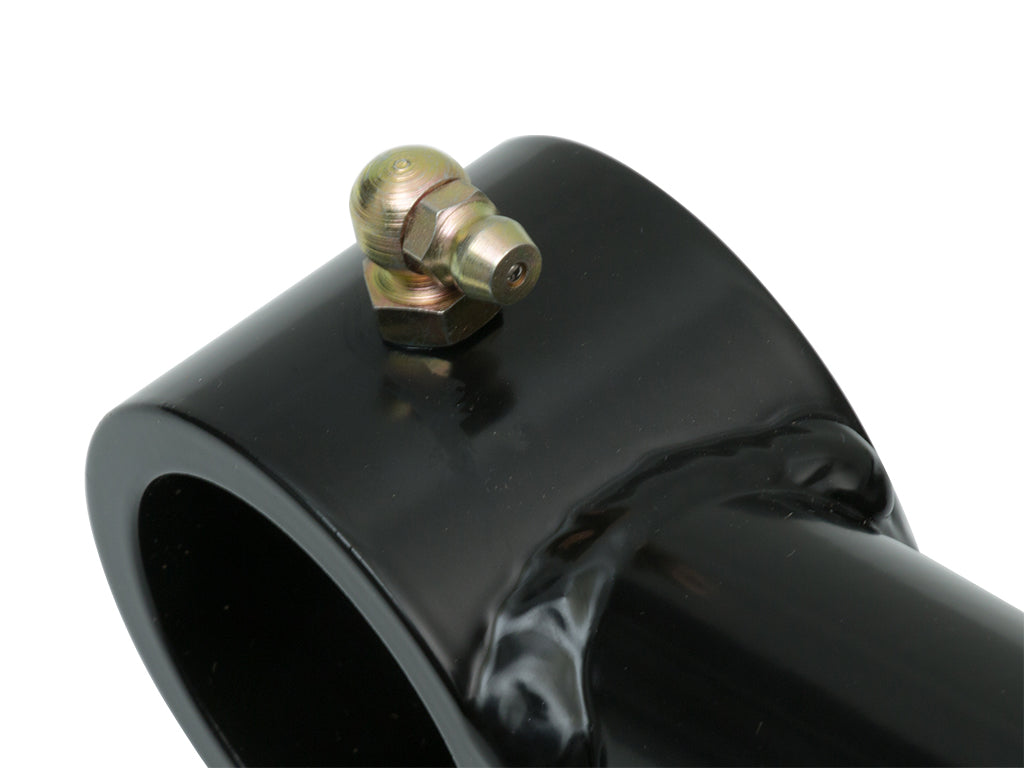

- Serviceable Dual Stage Bushings
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 78734T
- Compatibility: Component For Icon Vehicle Dynamics Lift Kit K78352T
