Icon Vehicle Dynamics Tubular Control Arm (MPN: 58451)

Enhance suspension travel with durable, greaseable control arms.

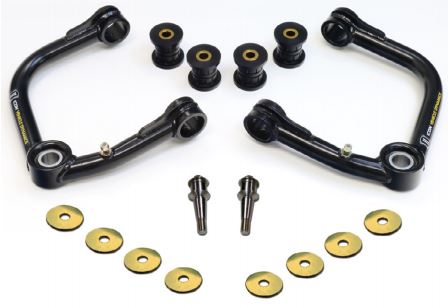

The Icon Vehicle Dynamics tubular uniball upper control arm system is engineered for the 2003 and newer Toyota 4Runner, compatible with both 2wd and 4wd models. This non-adjustable control arm is designed to address the limitations of weak OEM ball joints, which can restrict suspension travel, particularly when paired with 2.5 inch VS Series performance coil-over shocks. The use of 1 inch PTFE lined uniballs, along with 17-4 stainless taper pin adapters, significantly improves upper arm misalignment, facilitating smooth wheel travel without the risk of factory ball joint bind.

Constructed from 1026 DOM seamless tubing, these control arms feature CNC bent tubing and precision machined bushing housings and sleeves. The CNC machined uni-ball cup ensures a robust connection, while the stainless PTFE lined uniball bearings provide enhanced durability and performance. Each component is professionally precision welded to guarantee structural integrity and reliability under demanding conditions.

The powder-coated black finish not only enhances the aesthetic appeal but also provides additional protection against corrosion and wear. This set of two control arms is a critical upgrade for those looking to improve their vehicle's suspension performance and overall handling.

Features

• 1026 DOM Seamless Tubing
• CNC Bent Tubing
• CNC Machined Bushing Housings And Sleeves
• CNC Machined Uni-Ball Cup
• 1 Inch Stainless PTFE Lined Uniball Bearings
• 17-4 High Grade Stainless Steel Uni-Ball Adapter Pin
• Professionally Precision Welded

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 58451
• Type: Non-Adjustable Tubular
• With Bushing: Yes
• Finish: Powder Coated
• Color: Black
• Material: Steel
• Quantity: Set Of 2

Compatibility / Fit

• 2003-2024 Toyota 4Runner
• 2007-2014 Toyota FJ Cruiser

Technical Documents

• I58451_REVB.pdf
