Enhance your Tacoma's performance with adjustable lift and superior damping.

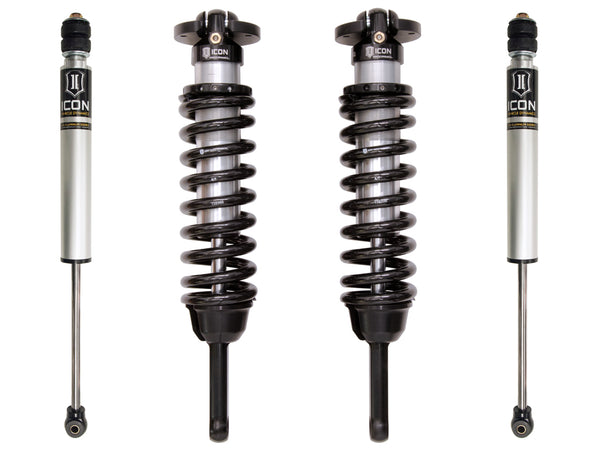

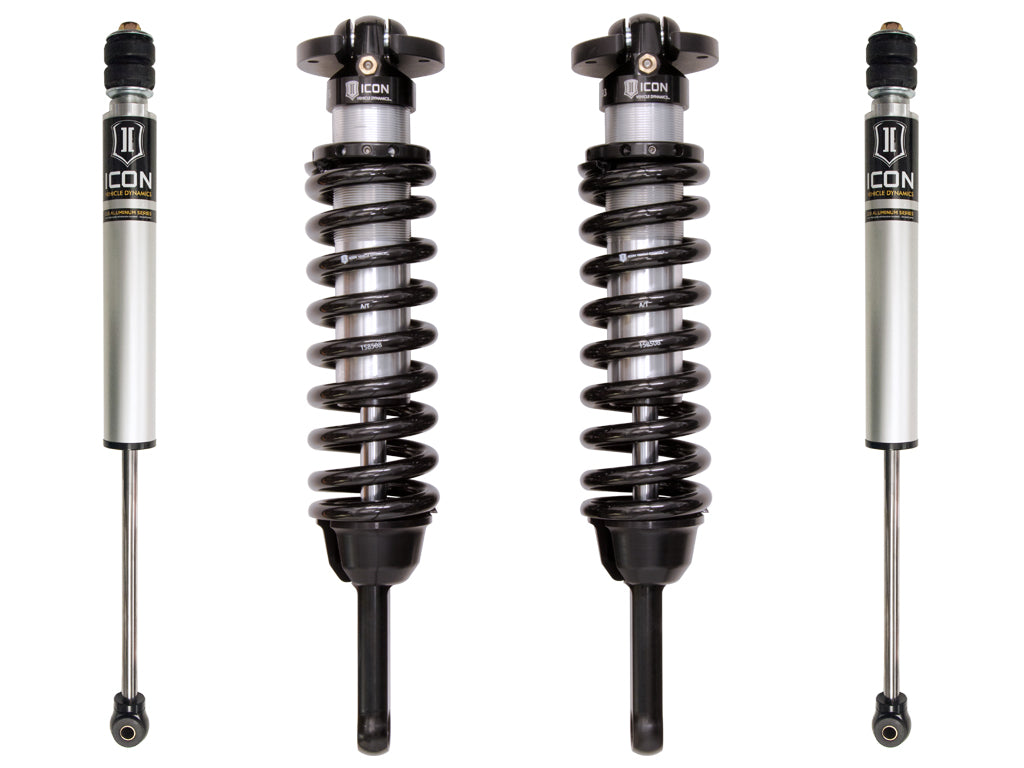

The ICON Vehicle Dynamics Toyota Tacoma suspension system is engineered for maximum performance, catering to serious drivers who demand enhanced vehicle control and ride quality. This Stage 1 system features vehicle-specific tuned 2.5 Inch coilover shocks with an internal reservoir, ensuring exceptional cooling properties and improved damping ability. The included ICON-engineered Eibach coil springs provide superior vehicle feel throughout the travel range, making it suitable for both on-road and off-road conditions.
With adjustable coilovers offering a lift height of 0 to 3.5 Inch, this suspension system allows for the installation of larger, more aggressive wheel and tire combinations, enhancing the Tacoma's off-road capabilities. The 2.0 Aluminum Series monotube rear shocks are designed with vehicle-specific valving, ensuring balanced performance from front to rear. Constructed from 6061 aircraft-grade aluminum and featuring corrosion-resistant components, this system is built for durability and longevity.
Installation is straightforward with a 100 percent bolt-on design, requiring no drilling or welding, and can be completed in approximately two hours. The ICON Vehicle Dynamics suspension system is an excellent choice for drivers looking to elevate their Toyota Tacoma's performance and versatility.
Features
- Increased Wheel Travel And Ride Quality
- Vehicle Specific Tuned Front And Rear Shocks For Superior Shock Damping And Control
- Adjustable Coilovers Provide 0-3.5 Inch Of Lift Height
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant CAD Plated Coilover Shock Body With 7/8 Inch Shaft
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- 2.0 Aluminum Series Rear IFP Shock With 5/8 Inch Shaft
- 100 Percentage Bolt-On System - No Drilling, Or Welding Necessary For Install
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53001
- Lift Height: 0 To 3-1/2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 33 x 11.50
- Includes Shock/Struts: Yes
- Wheel Backspacing (IN): 4.75
- Wheel Offset (MM): 0
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2005-2023 Toyota Tacoma
Technical Documents
Product Videos
