Enhance your Tacoma's performance with advanced suspension technology.

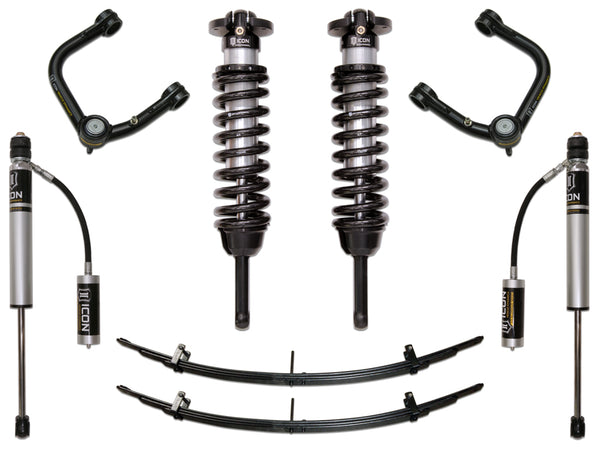

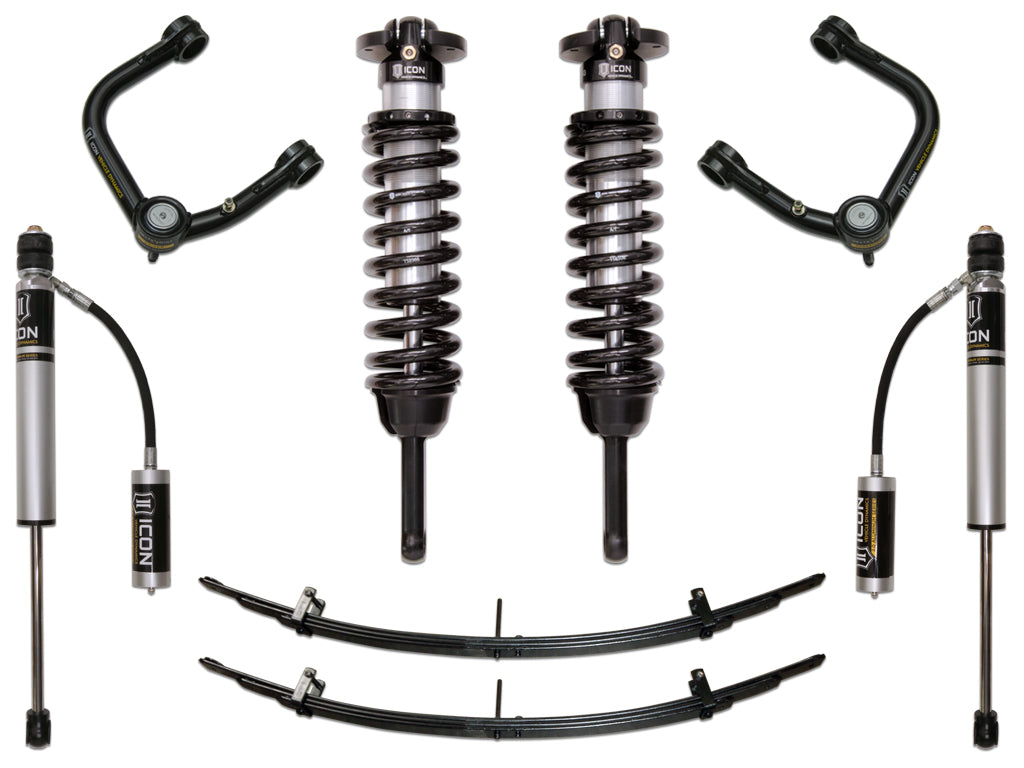

The ICON Vehicle Dynamics Toyota Tacoma Lift Kit is engineered for serious off-road enthusiasts seeking to improve their vehicle's performance. This Stage 3 suspension system offers a front lift ranging from 0 to 3-1/2 inches and a rear lift of 1-1/2 inches, allowing for the installation of larger tires and improved ground clearance. The kit includes vehicle-specific tuned coilover shocks that provide exceptional damping and control, ensuring a smooth ride on various terrains.
Featuring 6061 aircraft-grade aluminum components, this lift kit is designed for durability and longevity. The adjustable coilovers allow for customization of lift height, while the extended travel design enhances wheel articulation and overall ride quality. The inclusion of ICON's patented Delta Joint in the upper control arms combines the benefits of a ball joint with the performance of a uniball, providing superior articulation and resistance to environmental wear.
Installation is straightforward with a bolt-on design that requires no cutting or welding, making it accessible for a range of users. The ICON 2.0 Aluminum Series Remote Reservoir rear shocks are specifically valved for balanced performance, ensuring that both front and rear suspension work harmoniously. This lift kit is an excellent choice for those looking to enhance their Toyota Tacoma's capabilities on and off the road.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Increased Wheel Travel And Ride Quality Over Stock With No Change In Towing Capacity
- Vehicle Specific Tuned Front And Rear Shocks For Superior Shock Damping And Control
- Adjustable Coilovers With CDCV Provide Up To 3-1/2 Inch Of Front Lift Height On 2005 To 2015 Models And Up To 2.75 Inch On 2016-Up Models
- Extended Travel Coilovers Matched With ICON UCA Provides Increased Front Droop Travel
- Corrosion Resistant CAD Plated Coilover Shock Body With 7/8 Inch Shaft
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- 2.0 Aluminum Series Remote Reservoir Rear Shock With 5/8 Inch Shaft
- Bolt-On System Means No Cutting Or Welding Necessary For Install
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53003T
- Front Lift Amount (IN): 0 To 3-1/2 Inch
- Rear Lift Amount (IN): 1-1/2 Inch
- Maximum Tire Size: 33 x 11.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Add-A-Leaf
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 4.75
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Gray Shock Absorbers
Compatibility / Fit
- 2005-2022 Toyota Tacoma
