Enhance your 2024 Toyota Tacoma with advanced suspension technology.

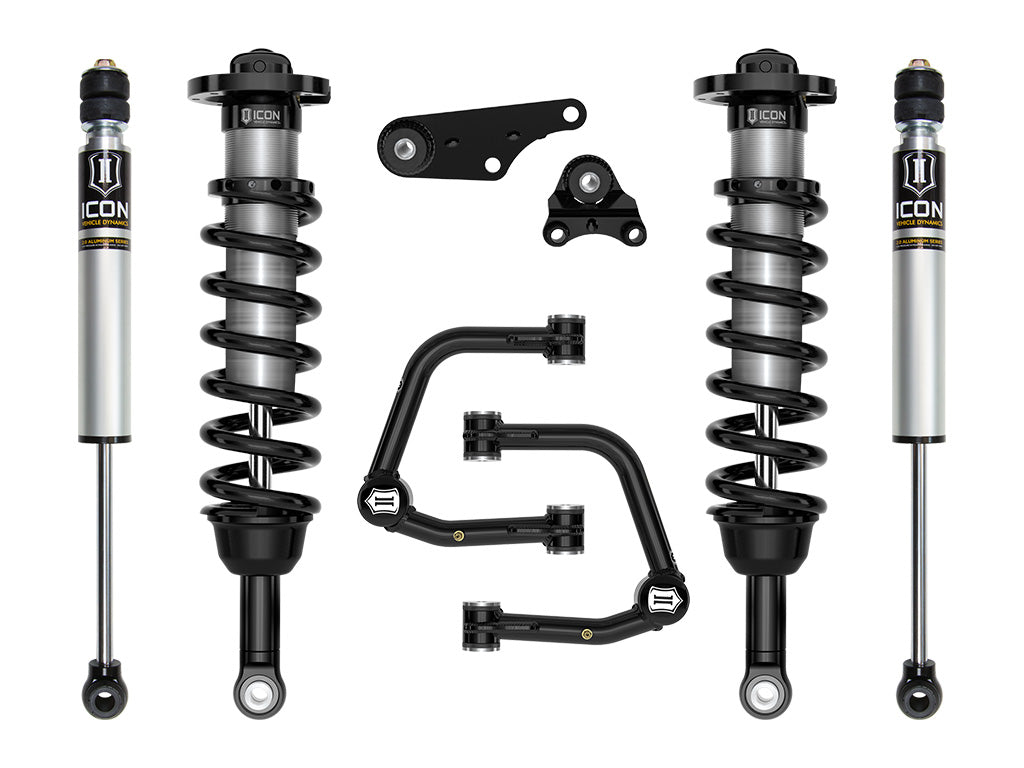

The ICON Vehicle Dynamics Stage 2 suspension system for the 2024 Toyota Tacoma is engineered for maximum performance, focusing on increased wheel travel and superior damping capabilities. This system features vehicle-specific tuned 2.5 Series coilover shocks with internal reservoirs, providing exceptional cooling and improved ride quality both on and off-road. The adjustable coilovers allow for a lift height ranging from 1-1/4 inch to 3 inch over stock, accommodating larger wheel and tire combinations for enhanced capability.
In addition to the coilovers, the system includes front differential drop brackets that optimize the operating angle for CV joints, maximizing available wheel travel on 4WD models. The ICON tubular upper control arms improve front-end geometry and suspension component clearance, while the serviceable ICON Delta Joint PRO ball joint ensures full bump and droop travel without bind. The rear shocks are designed with vehicle-specific valving to balance performance, enhancing the overall driving experience.
Constructed from 6061 aircraft-grade aluminum and featuring corrosion-resistant components, this suspension system is built for durability and longevity. The inclusion of FK rod end bearings minimizes deflection, further enhancing performance. The ICON Vehicle Dynamics Stage 2 suspension system is a comprehensive solution for drivers seeking to elevate their Tacoma's performance on various terrains.
Features
- Vehicle Specific Tuned Front And Rear Shocks For Superior Shock Damping And Control
- Increased Wheel Travel And Improved Ride Quality Over Stock
- Front Differential Drop Provides Better Maximum Operating Angle For CV Joints And Maximizes Available Wheel Travel On 4WD Models
- Adjustable Coilovers Provide 1-1/4 To 3 Inch Front Lift Height Over Stock
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Shafts
- ICON Engineered Coil Springs
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- 2.0 Aluminum Series Internal Reservoir Rear Shocks With 5/8 Inch Shafts
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53292T
- Lift Height: 1-1/4 To 3 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 33 x 11.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 25
- Color: Black Components/ Silver Shocks
- Material: Aluminum
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2024-2025 Toyota Tacoma
