Enhance your Toyota Tacoma's performance with advanced suspension technology.

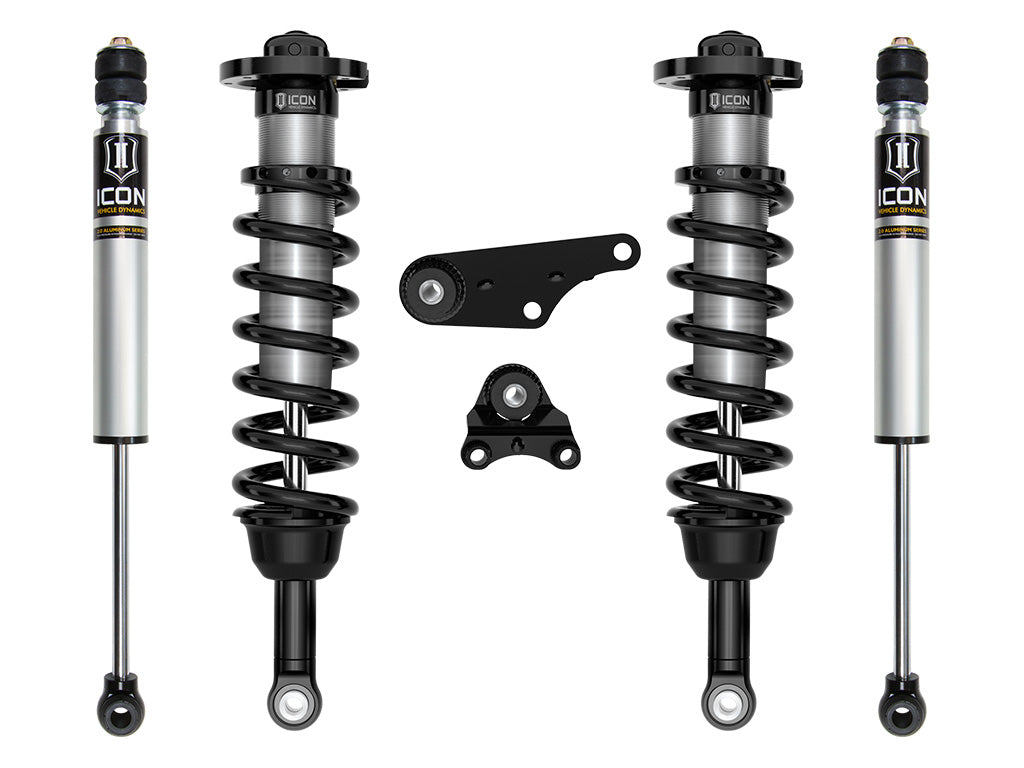

The ICON Vehicle Dynamics 2024 Toyota Tacoma suspension system is engineered for maximum performance, focusing on increased wheel travel and improved damping capabilities. This Stage 1 system features vehicle-specific tuned 2.5 Series coilover shocks with internal reservoirs, providing exceptional cooling and enhanced ride quality both on and off-road. The adjustable coilovers allow for a front lift height ranging from 1-1/4 to 3 inches over stock, accommodating larger wheel and tire combinations for improved aesthetics and functionality.
Incorporating front differential drop brackets, this suspension system maximizes available wheel travel while preventing CV joint bind, ensuring optimal performance during demanding driving conditions. The use of polyurethane differential mounting bushings enhances stability by limiting differential movement under load. Additionally, the ICON 2.0 Aluminum Series internal reservoir rear shocks are designed with vehicle-specific valving, balancing the truck's performance from front to rear for a cohesive driving experience.
Constructed from 6061 aircraft-grade aluminum and featuring corrosion-resistant CAD plated shock bodies, this suspension system is built for durability and longevity. The inclusion of FK rod end bearings further extends the lifespan of the components while minimizing deflection. The ICON Vehicle Dynamics suspension system is a robust solution for drivers seeking to elevate their Toyota Tacoma's capabilities on various terrains.
Features
- Vehicle Specific Tuned Front And Rear Shocks For Superior Shock Damping And Control
- Increased Wheel Travel And Improved Ride Quality Over Stock
- Front Differential Drop Provides Better Maximum Operating Angle For CV Joints And Maximizes Available Wheel Travel On 4WD Models
- Adjustable Coilovers Provide 1-1/4 To 3 Inch Front Lift Height Over Stock
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Shafts
- ICON Engineered Coil Springs
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- 2.0 Aluminum Series Internal Reservoir Rear Shocks With 5/8 Inch Shafts
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53291
- Lift Height: 1-1/4 To 3 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 33 x 11.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 25
- Color: Black Components/ Silver Shocks
- Material: Aluminum
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2024-2025 Toyota Tacoma
