Enhance your Toyota Tacoma's performance with advanced suspension technology.

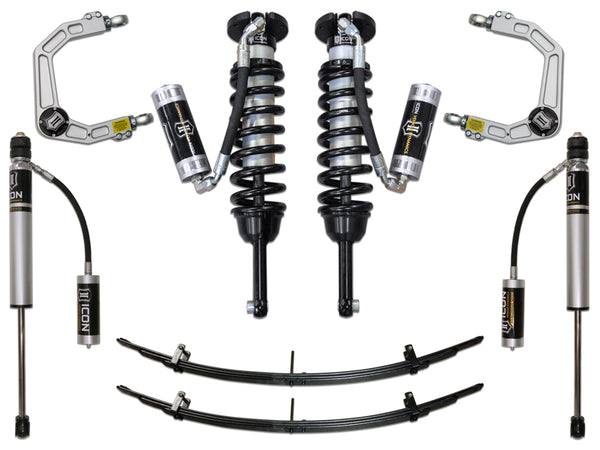

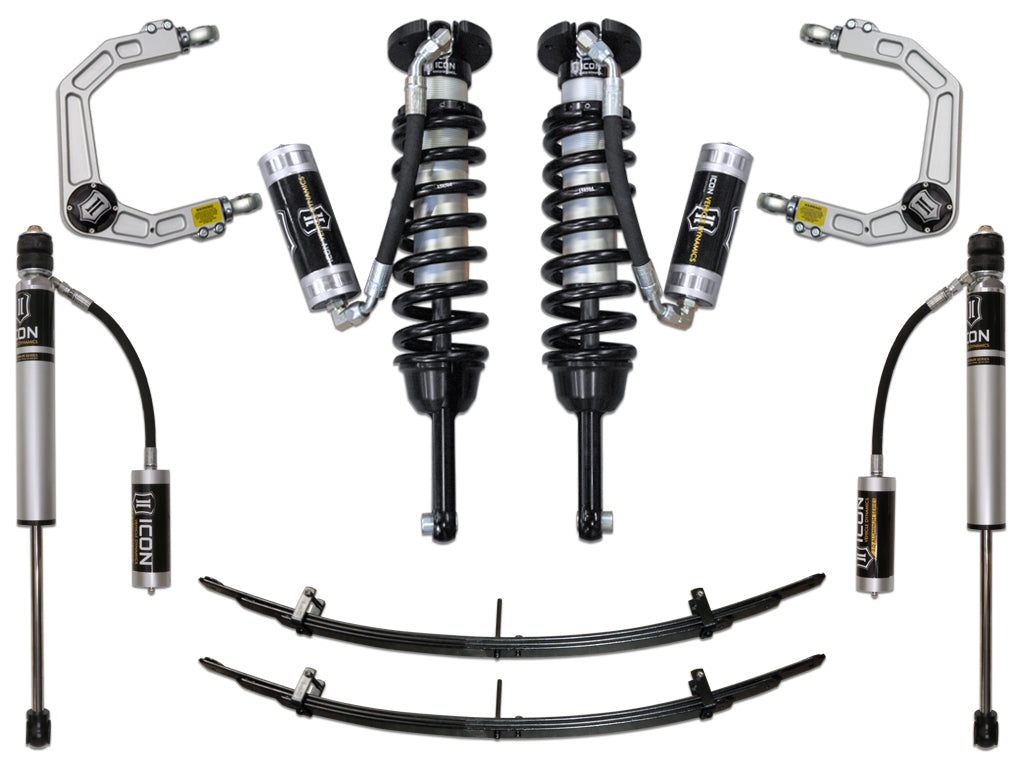

The ICON Vehicle Dynamics Stage 4 suspension system for 2005-UP Toyota Tacoma is engineered for maximum performance, focusing on increased wheel travel and improved damping capabilities. This system features vehicle-specific tuned 2-1/2 Inch extended travel coilover shocks with remote reservoirs, designed to provide exceptional cooling and superior ride quality both on and off-road. The adjustable coilovers allow for a front lift of 0 to 3-1/2 Inch on 2005-2015 models and up to 2.75 Inch on 2016-UP models, accommodating larger wheel and tire combinations.
Incorporating ICON's patented Delta Joint in the upper control arms, this suspension system combines the durability of a ball joint with the performance of a traditional uniball, ensuring enhanced articulation and protection against environmental elements. The system also includes 2.0 Aluminum Series remote reservoir rear shocks, which utilize vehicle-specific valving for balanced performance. With a bolt-on installation process, this suspension kit requires no cutting or welding, making it accessible for a wide range of users.
Constructed from 6061 aircraft-grade aluminum and featuring corrosion-resistant components, the ICON suspension system is built to withstand the rigors of both daily driving and off-road adventures. The FK rod end bearings enhance longevity and minimize deflection, ensuring a reliable and responsive driving experience. This comprehensive suspension solution is designed for serious drivers looking to elevate their Tacoma's capabilities on any terrain.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Increased Wheel Travel And Ride Quality Over Stock With No Change In Towing Capacity
- Vehicle Specific Tuned Front And Rear Shocks For Superior Shock Damping And Control
- Adjustable Coilovers With CDCV Provide Up To 3-1/2 Inch Of Front Lift Height On 2005 To 2015 Models And Up To 2.75 Inch On 2016-Up Models
- Extended Travel Coilovers Matched With ICON UCA Provides Increased Front Droop Travel
- Corrosion Resistant CAD Plated Coilover Shock Body With 7/8 Inch Shaft
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- 2.0 Aluminum Series Remote Reservoir Rear Shock With 5/8 Inch Shaft
- Bolt-On System Means No Cutting Or Welding Necessary For Install
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53004
- Front Lift Amount (IN): 0 To 3-1/2 Inch
- Rear Lift Amount (IN): 1-1/2 Inch
- Maximum Tire Size: 33 x 11.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Add-A-Leaf
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 4.75
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Gray Shock Absorbers
Compatibility / Fit
- 2005-2022 Toyota Tacoma
