Enhance your vehicle's performance with advanced lift and shock technology.

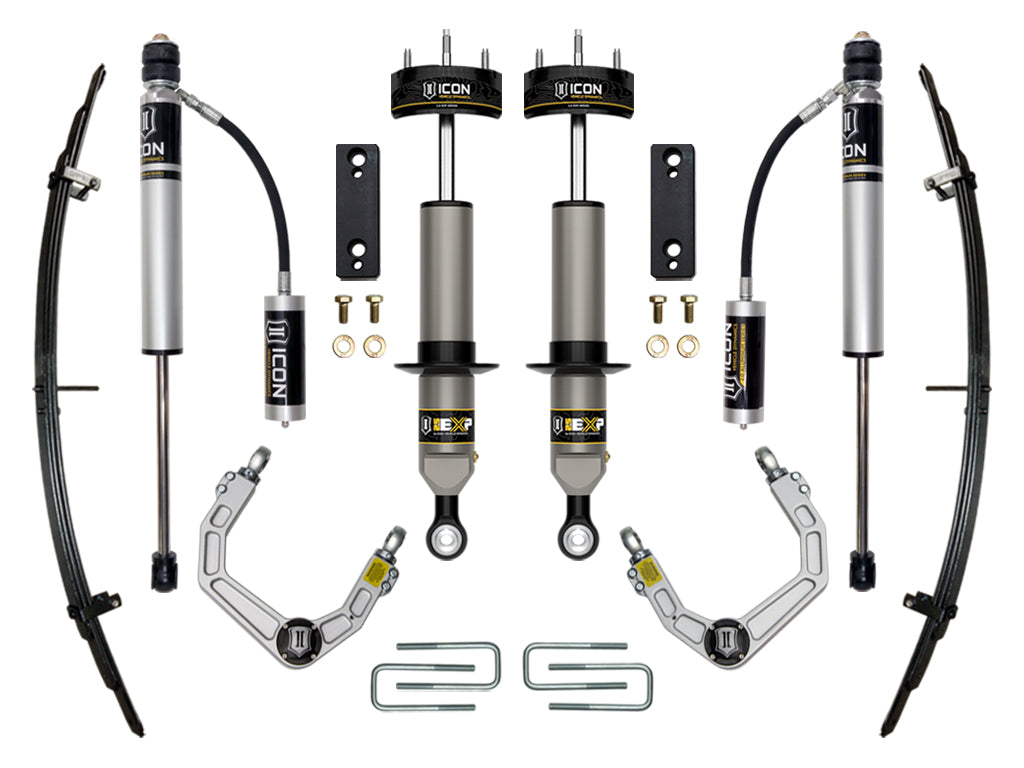

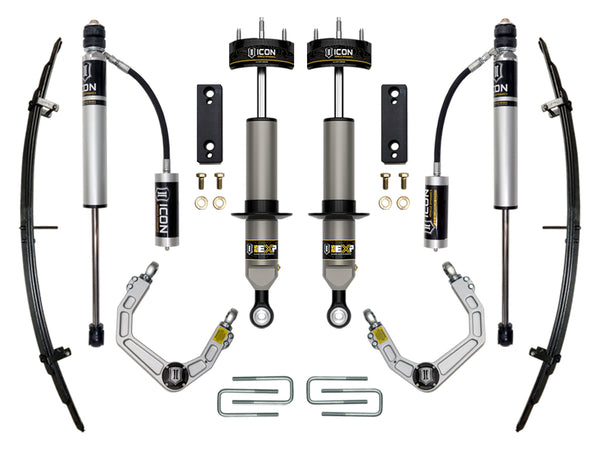

The Icon Vehicle Dynamics Stage 3 EXP suspension system is engineered to significantly improve both on-road and off-road performance while providing a lift of 0 to 2 inches in the front and 1-1/2 inches in the rear. This comprehensive kit includes 2.5 EXP series coilover shocks that utilize the factory coil and hardware, ensuring a seamless integration with existing components. The system is designed to accommodate up to 33-inch tires, enhancing the vehicle's capability and stance.
Key features of this suspension system include adjustable front ride heights, sway bar relocation brackets to minimize link bind, and ICON's billet aluminum upper control arms that enhance strength and durability. The patented Delta Joint in the upper control arms allows for improved suspension travel and longevity, while the rear add-a-leaf softens the spring rate for better ride quality. This results in a balanced performance that is suitable for various driving conditions.
The 2.0 Aluminum Series remote reservoir rear shocks are specifically tuned to work in harmony with the front coilovers, providing a cohesive suspension setup that maximizes travel and performance. All shock absorbers in this kit are fully rebuildable and re-tunable, ensuring long-term reliability and adaptability to changing driving needs. This suspension system is a robust solution for those looking to enhance their vehicle's capabilities without compromising comfort.
Features
- 2.5 EXP Series Front Shocks With Internal Reservoirs Utilize Factory Coil And Coil Hardware
- Adjustable Front Ride Heights From 0 To 2 Inch Of Front Lift Over Stock With The Use Of Snap Ring
- Sway Bar Relocation Brackets Reduce Ensure Sway Bar Clearance From EXP Coilovers
- Allows For Full Wheel Travel Without Overstressing OE Components
- Billet Aluminum UCAs For Added Strength, Durability And On-Vehicle Caster Or Camber Adjustment For Optimum Drivability
- UCAs Feature The Patented Delta Joint For Extended Longevity
- Rear Add-A-Leaf Softens Spring Rate For Improved Ride Quality While Providing 1-1/2 Inch Of Rear Lift
- 2.0 Aluminum Series Remote Reservoir Rear Shocks Provide Balanced Tune With Coilovers And Increased Performance
- All Icon Shock Absorbers Are Fully Rebuildable And Re-Tunable
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53222
- Front Lift Amount (IN): 0 To 2 Inch
- Rear Lift Amount (IN): 1-1/2 Inch
- Maximum Tire Size: 33 x 11.50
- Front Lift Type: Coil Over Shock Absorbers
- Rear Lift Type: Add-A-Leaf
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75 To 5
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Gray Shock Absorbers
Compatibility / Fit
- 2005-2022 Toyota Tacoma
Technical Documents
- I58550DJ_REVB.pdf
- I51100_REVD.pdf
- I56503R_REVD.pdf
- I611030_REVB.pdf
- I58632_REVB.pdf
- ICON_Warranty_2023_1730.pdf
