Enhance your vehicle's performance with advanced suspension technology.

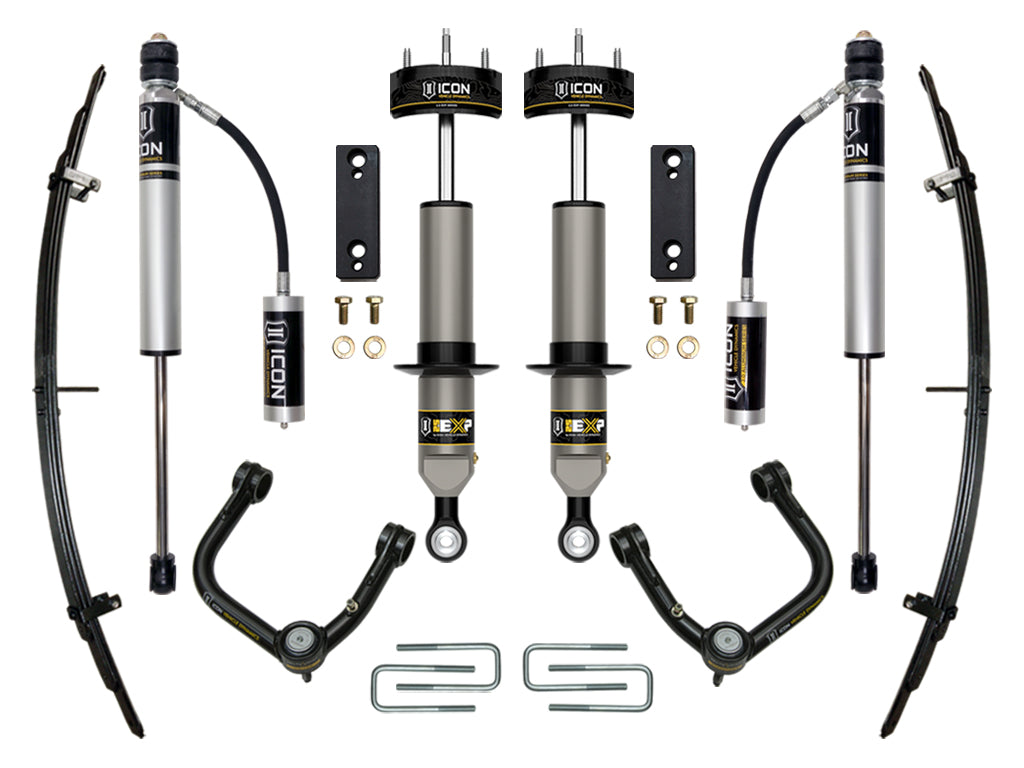

The Icon Vehicle Dynamics Stage 3 EXP suspension system is engineered to significantly improve both on-road and off-road performance while providing a lift of 1 to 2 inches in the front and 1-1/2 inches in the rear. This comprehensive kit includes 2.5 EXP series coilover shocks that utilize the factory coil and hardware, ensuring a seamless integration with existing components. The system is designed to accommodate up to 33-inch tires, enhancing the vehicle's capability and stance.
Key features of this suspension system include adjustable front ride heights, sway bar relocation brackets that minimize link bind, and ICON tubular upper control arms that enhance strength and alignment correction. The patented Delta Joint in the upper control arms allows for extended longevity and improved suspension travel, ensuring optimal performance during various driving conditions. The rear add-a-leaf spring softens the spring rate, improving ride quality while providing additional lift.
The 2.0 Aluminum Series remote reservoir rear shocks are nitrogen gas charged, offering a balanced tune that complements the front coilovers for increased performance. All shock absorbers in this kit are fully rebuildable and re-tunable, allowing for customization and maintenance over time. This suspension system is a robust solution for those seeking enhanced vehicle dynamics and improved ride quality.
Features
- 2.5 EXP Series Front Shocks With Internal Reservoirs Utilize Factory Coil And Coil Hardware
- Adjustable Front Ride Heights From 1 To 2 Inch Of Front Lift Over Stock With The Use Of Snap Ring
- Sway Bar Relocation Brackets Reduce Ensure Sway Bar Clearance From EXP Coilovers
- Allows For Full Wheel Travel Without Overstressing OE Components
- Tubular UCAs For Added Strength, Durability And Alignment Correction For Better Drivability
- UCAs Feature The Patented Delta Joint For Extended Longevity
- Rear Add-A-Leaf Softens Spring Rate For Improved Ride Quality While Providing 1-1/2 Inch Of Rear Lift
- 2.0 Aluminum Series Remote Reservoir Rear Shocks Provide Balanced Tune With Coilovers And Increased Performance
- All Icon Shock Absorbers Are Fully Rebuildable And Re-Tunable
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53222T
- Front Lift Amount (IN): 1 To 2 Inch
- Rear Lift Amount (IN): 1-1/2 Inch
- Maximum Tire Size: 33 x 11.50
- Front Lift Type: Coil Over Shock Absorbers
- Rear Lift Type: Add-A-Leaf
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75 To 5
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Gray Shock Absorbers
Compatibility / Fit
- 2005-2022 Toyota Tacoma
Technical Documents
- I58450DJ_REVE.pdf
- I51100_REVD.pdf
- I611030_REVB.pdf
- I56503R_REVD.pdf
- I58632_REVB.pdf
- ICON_Warranty_2023_1730.pdf
