Enhance your Ford Bronco's performance with adjustable lift and superior ride quality.

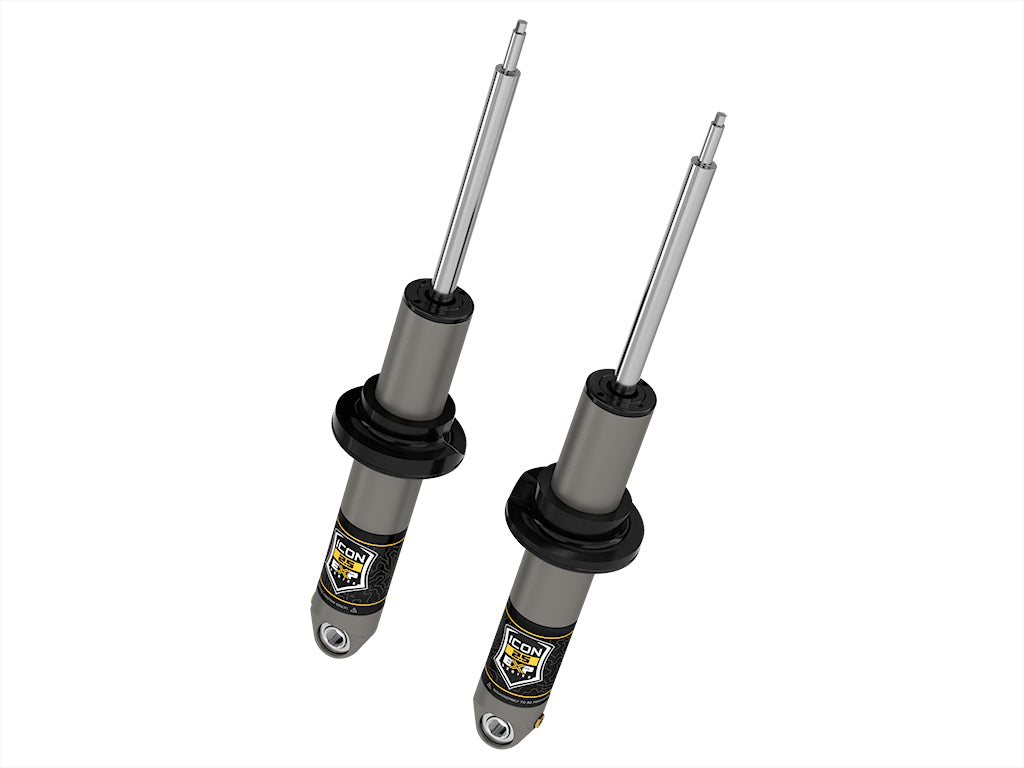

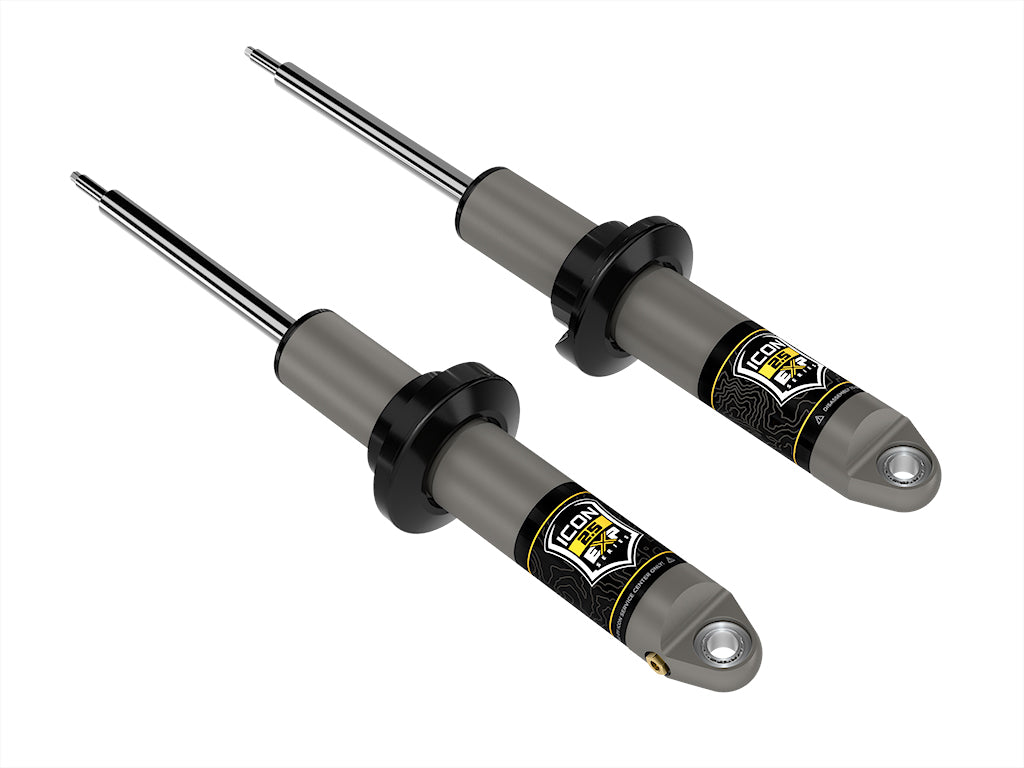

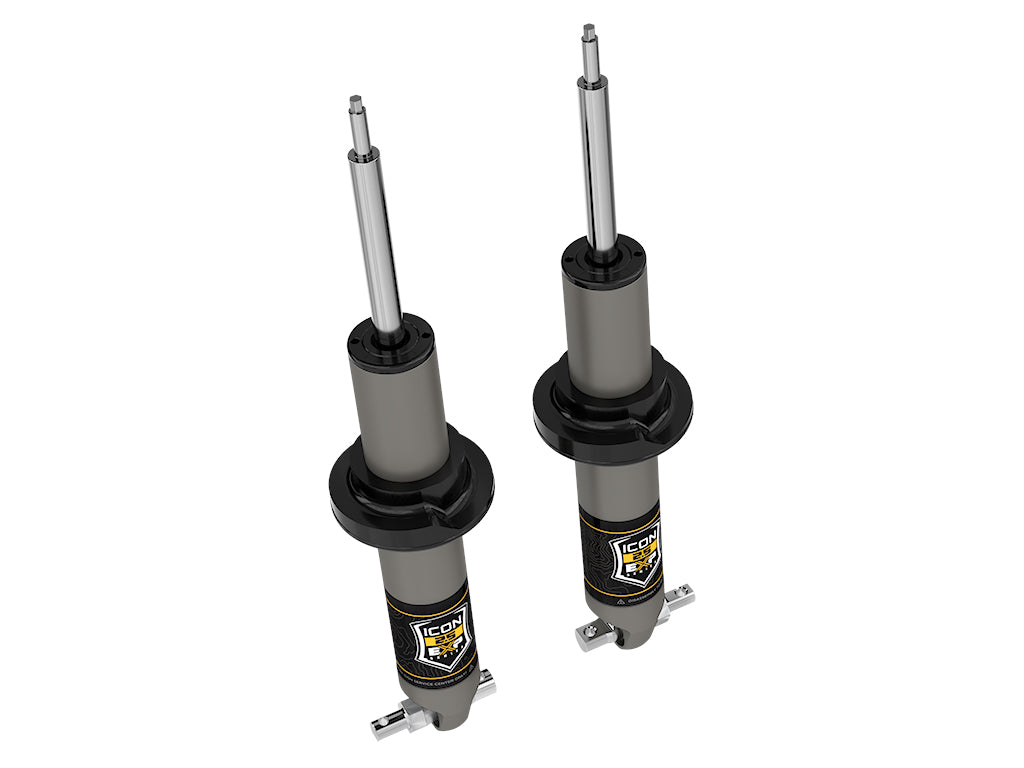

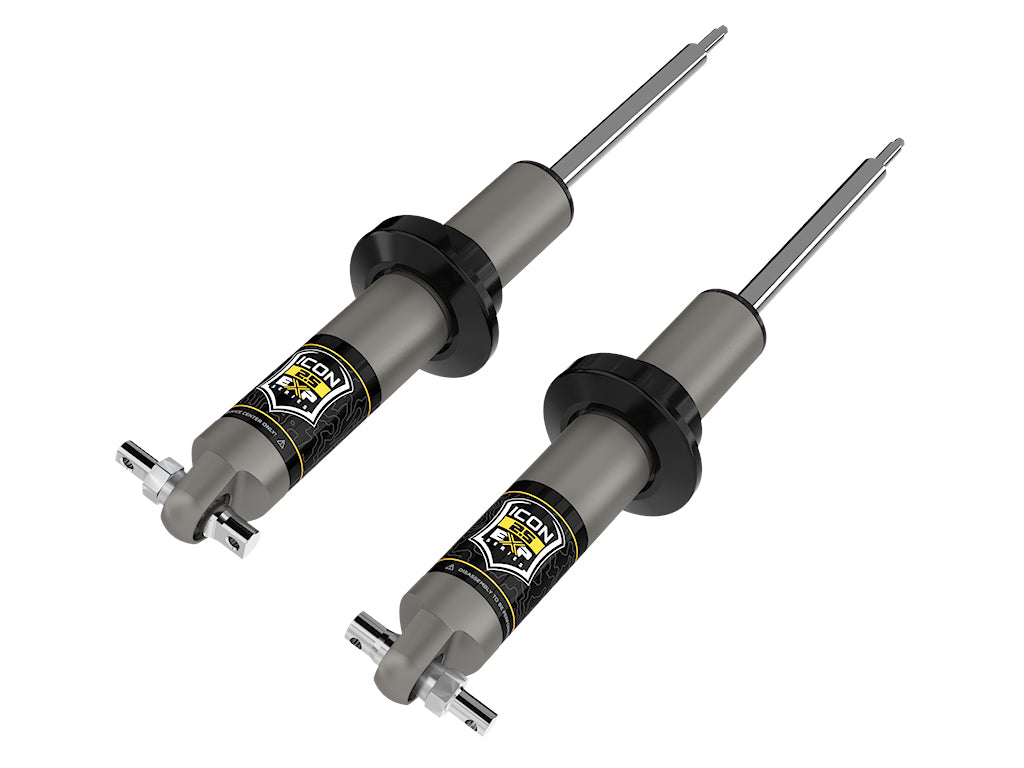

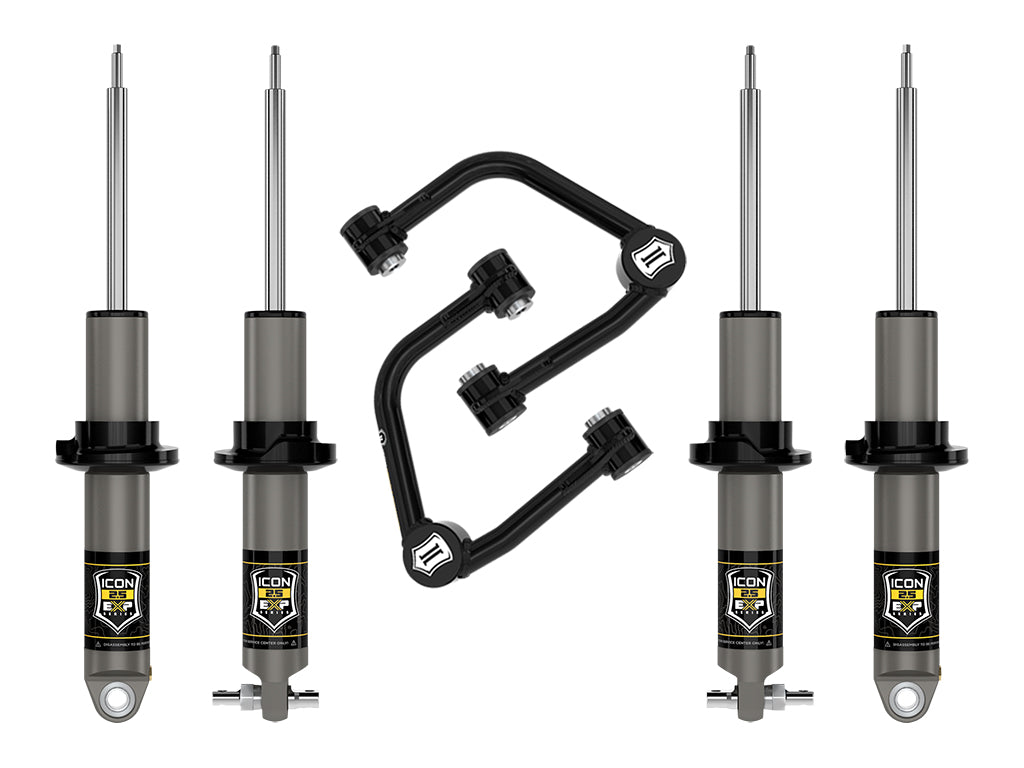

The Icon Vehicle Dynamics Stage 2 Suspension System is designed specifically for the 2021 and newer Ford Bronco equipped with the HOSS 2.0 suspension package. This system features 2.5 EXP Series coilovers that provide increased wheel travel and improved ride quality for both on-road and off-road conditions. The coilovers are engineered to be fully rebuildable and utilize the factory coil springs, ensuring a cost-effective solution without compromising performance.
With adjustable ride heights ranging from 0 to 2 inches of front lift and 0 to 1.75 inches of rear lift, this suspension system allows for customization based on user preference and driving conditions. The design incorporates CNC machined 6061 aluminum components with a black anodized finish, offering excellent corrosion resistance and durability. The inverted shaft-up design features a robust 7/8-inch diameter, induction-hardened, chrome-plated shaft that enhances longevity and performance.
Installation is straightforward with a 100 percent bolt-on design, eliminating the need for cutting or welding. The system also includes PTFE lined spherical bearings to minimize deflection and extend the lifespan of the components. This suspension system is an effective upgrade for those looking to enhance their Ford Bronco's handling and off-road capabilities.
Features
- CNC Machined 6061 Aluminum Components With A Black Anodized Finish
- One-Piece, Impact Extruded, Hard Anodized Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- Inverted Shaft Up Design Featuring 7/8 Inch Diameter, Induction Hardened, Chrome Plated Shafts
- Vehicle Specific Design For 2021-UP Ford Bronco With HOSS 2.0 Suspension Package
- Vehicle Specific Tuned Shocks For Superior Shock Damping And Vehicle Control
- Adjustable Ride Heights From 0 To 2 Inch Of Front Lift And 0 To 1-1/4 Inch Of Rear Lift Over Stock With The Use Of Snap Rings
- Utilizes Factory Coils And Coil Hardware
- PTFE Lined Spherical Bearings For Extended Longevity And Minimal Deflection
- 100 Percent Bolt-On: No Cutting Or Welding Necessary For Installation
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K40012T
- Front Lift Amount (IN): 0 To 2 Inch
- Rear Lift Amount (IN): 0 To 1-3/4 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Shock Absorbers
- Rear Lift Type: Coil Over Shock Absorber
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 5.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 25
- Shocks: With Shocks In Kit
- Color: Black/ Silver
Compatibility / Fit
- 2021-2024 Ford Bronco
