Advanced shock absorber for Toyota Tundra with adjustable lift and superior performance.

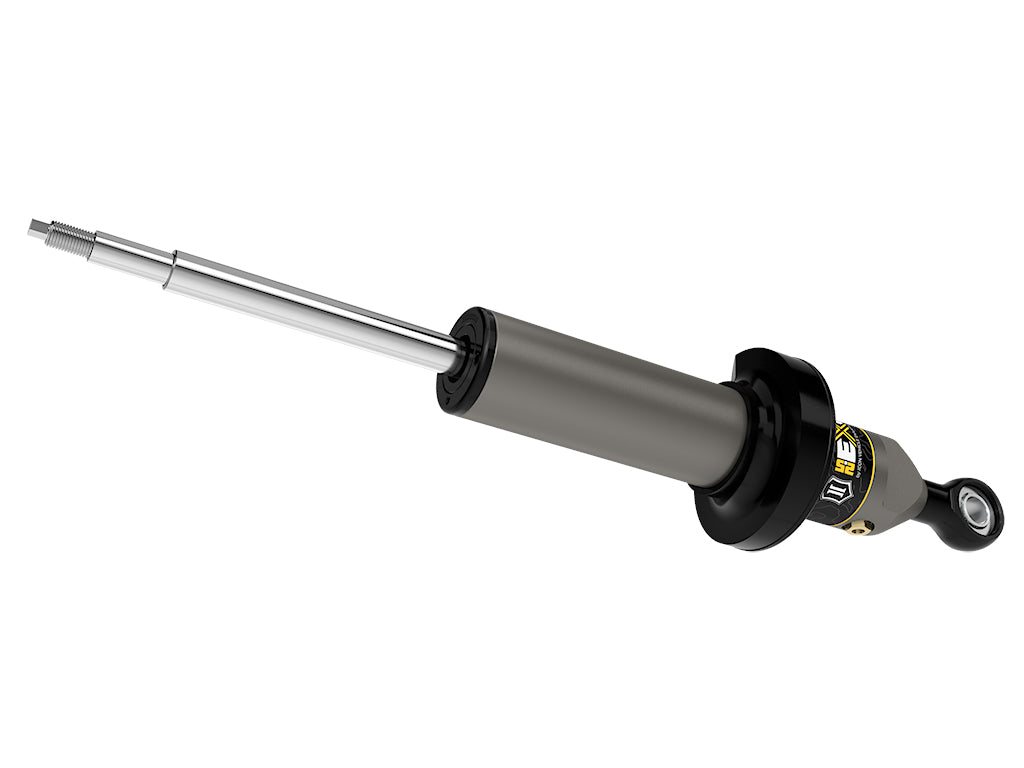

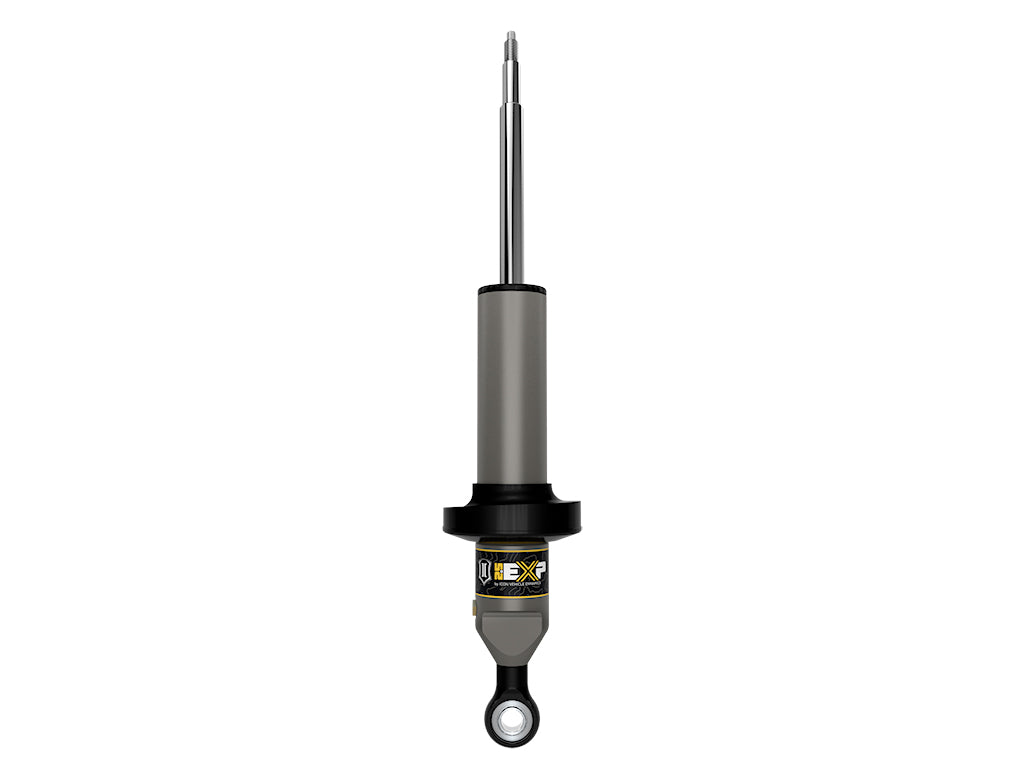

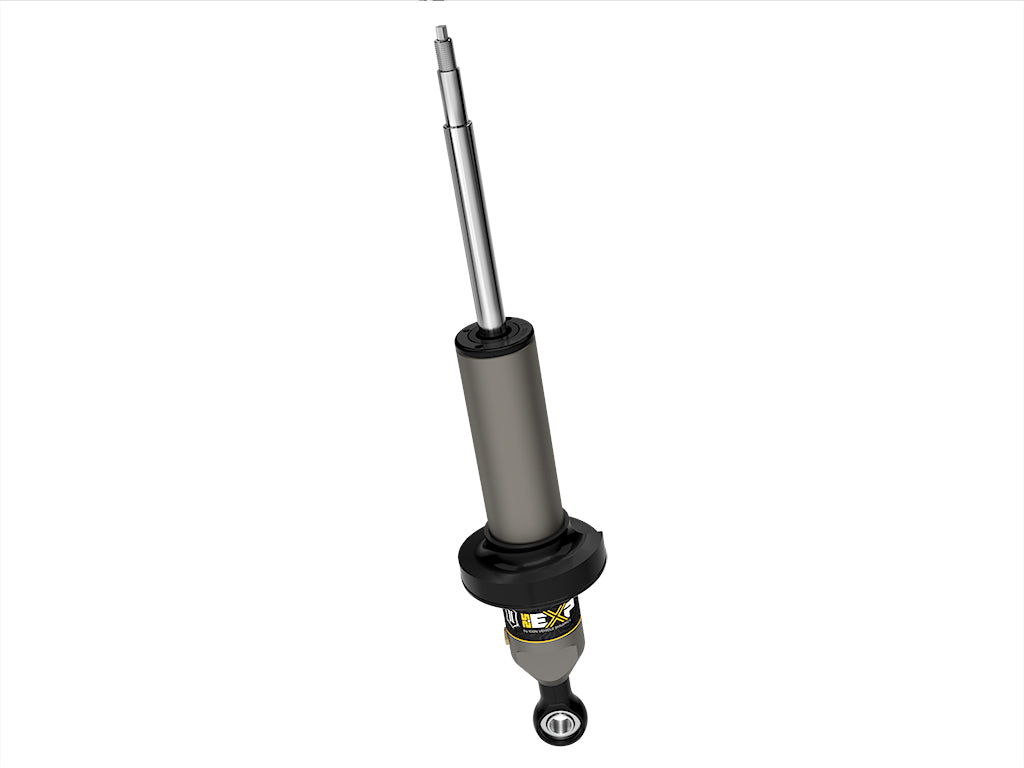

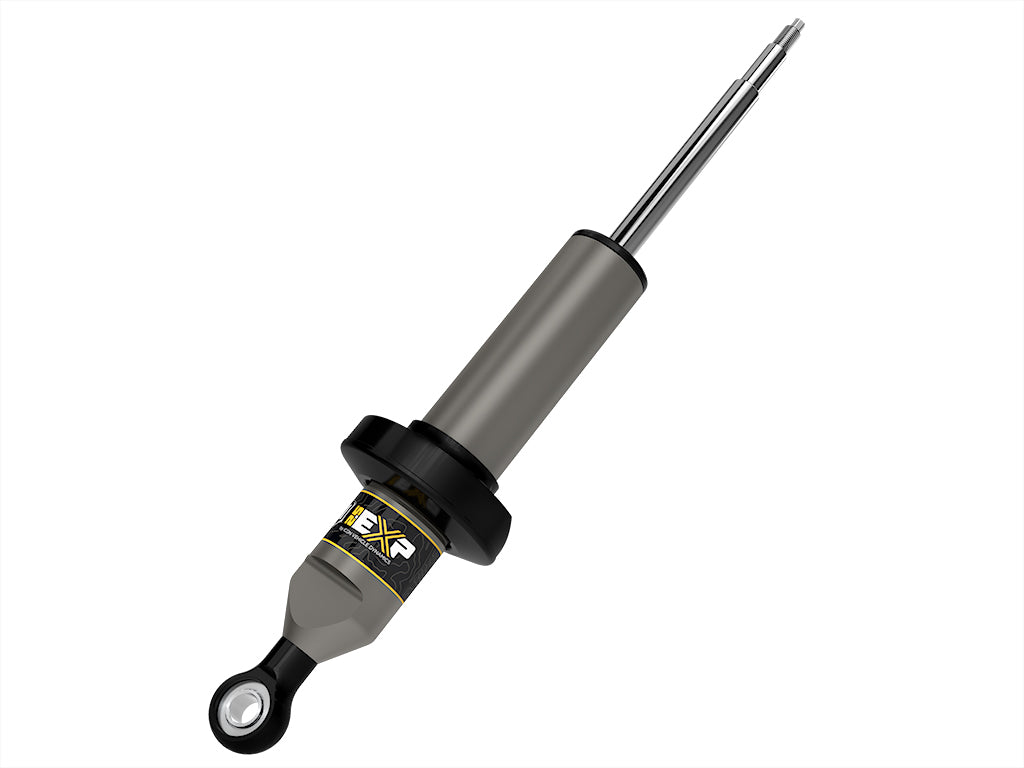

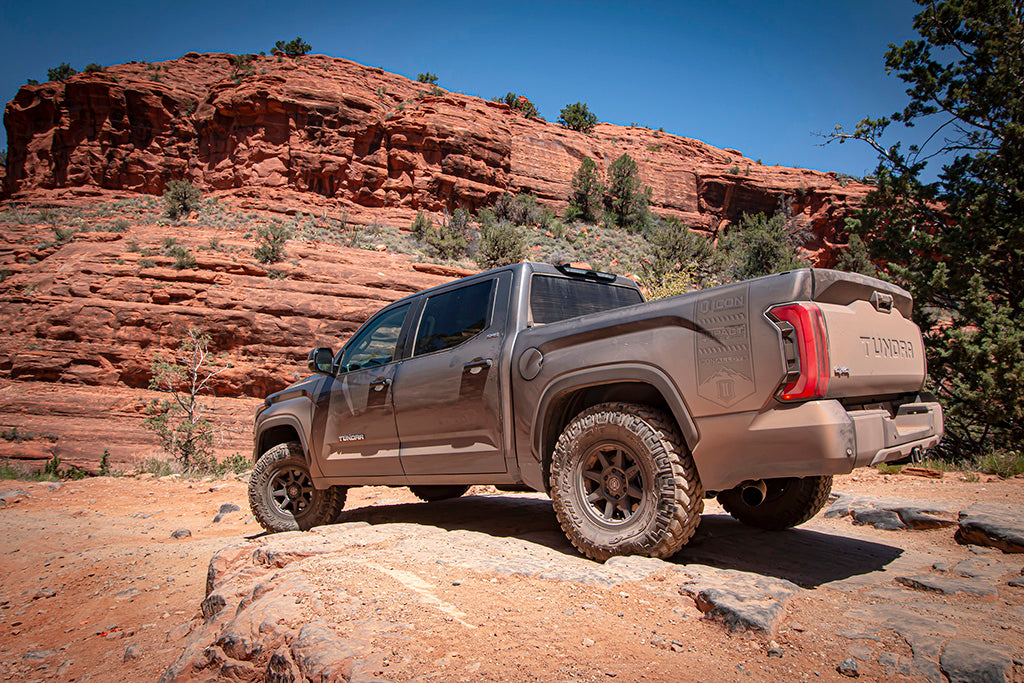

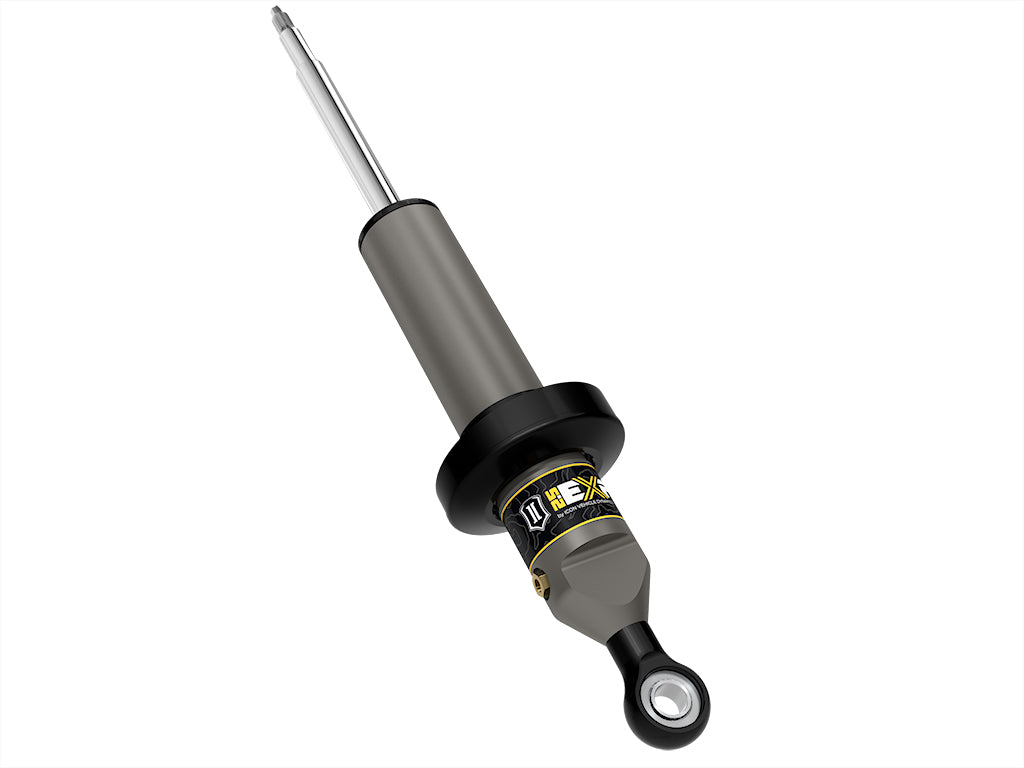

The Icon Vehicle Dynamics EXP Series front shock absorbers are engineered for the 2022 to 2023 Toyota Tundra, offering a blend of performance and practicality. These shock absorbers feature a robust 2.5 inch diameter aluminum body that is both lightweight and durable, ensuring excellent heat dissipation and longevity. Designed to utilize the factory coil spring, the EXP Series provides a suspension lift of 0 to 3 inches, allowing for enhanced ground clearance and improved off-road capability without the need for additional components.
The shock absorbers are equipped with a one-piece digressive piston design, specifically tuned for the Tundra, which maximizes damping performance and ride quality. The 7/8 inch diameter induction hardened shaft is chrome plated for added durability, while the CNC machined 6061 aluminum components feature a hard anodized finish that resists corrosion and wear. This design not only enhances the aesthetic appeal but also ensures consistent performance under various driving conditions.
For those seeking further customization, the EXP shocks are fully rebuildable and re-valvable, allowing for adjustments to be made by qualified technicians. The innovative snap-ring grooves enable easy ride height adjustments, making it simple to tailor the suspension setup to specific needs. With a focus on performance and reliability, the Icon Vehicle Dynamics EXP Series shocks are a practical choice for Tundra owners looking to enhance their vehicle's capabilities.
Features
- CNC Machined 6061 Aluminum Components With A Black Anodized Finish
- PTFE Lined Spherical Bearing For Extended Longevity And Minimal Deflection
- Impact Extruded, Hard Anodized Aluminum Cylinder Offers Excellent Corrosion Resistance And Consistent Finish
- Inverted Shaft Up Design Featuring 7/8 Inch Diameter, Induction Hardened, Chrome Plated Shaft
- Vehicle Specific Tuned For Superior Shock Damping And Control
- 2.5 Aluminum Series Shock With Internal Reservoir

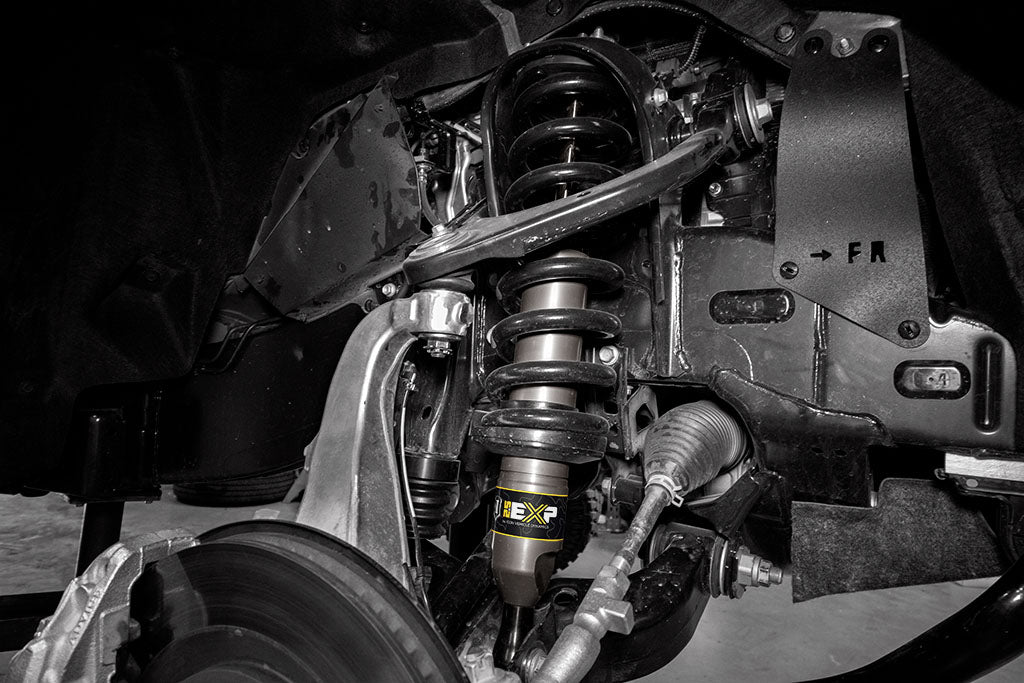

- Utilizes Factory Coil And Coil Hardware
- Adjustable Ride Heights From 0 To 3 Inch Of Front Lift Over Stock With The Use Of Snap Ring
- Fully Rebuildable And Re-Tunable
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 58671
- Adjustable: No
- Upper Mounting Type: Stud
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 0 To 3 Inch
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Quantity: Single
- Valving Type: Non Adjustable Valving
- Shock Type: Gas Charged
- Shock Body Color: Black/ Gray
- Shock Body Material: Aluminum
- Spring Style: No Spring
- Spring Color: No Spring
- Spring Material: No Spring
- Includes Mounting Hardware: No
Compatibility / Fit
- 2022-2025 Toyota Tundra
