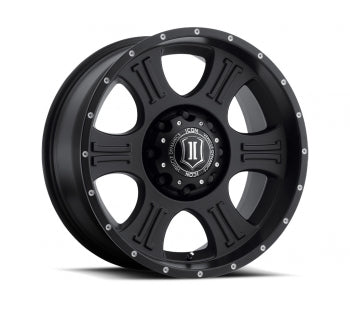

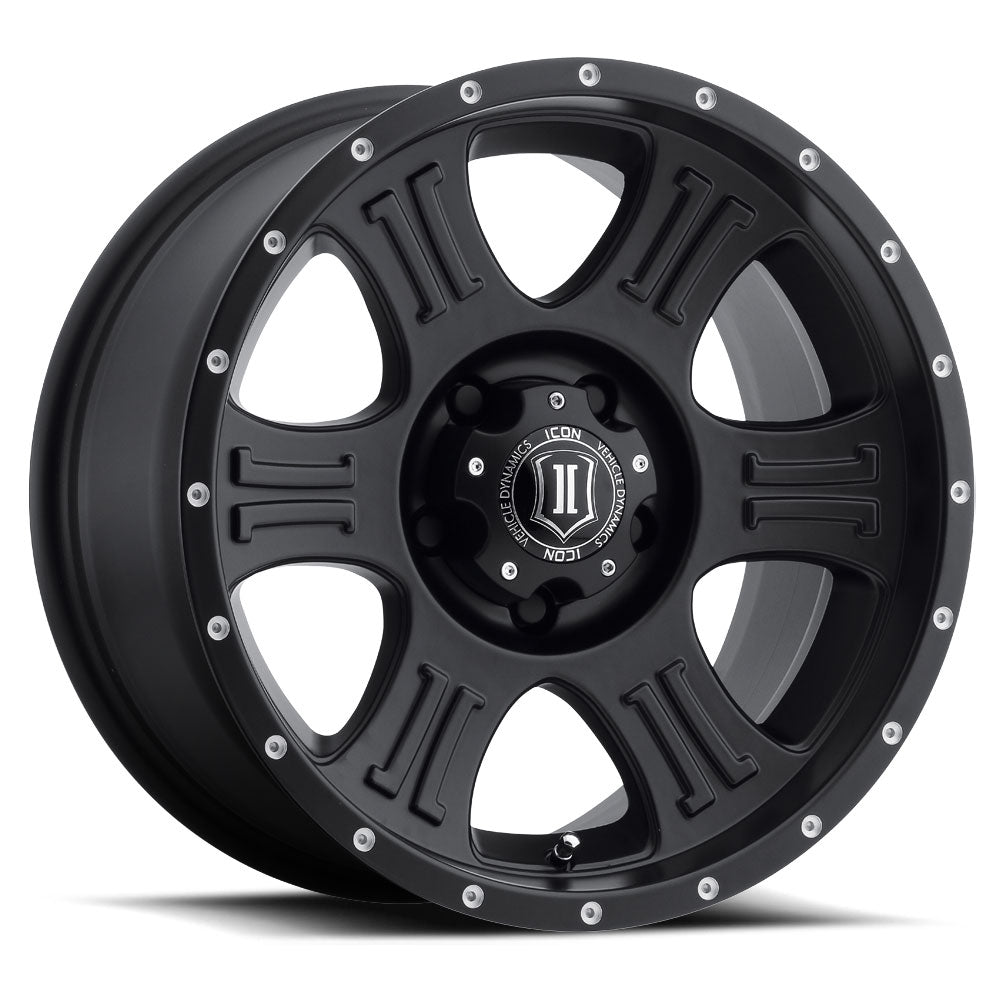

Icon Vehicle Dynamics Shield Wheel (MPN: 1020908955SB)

Engineered for optimal fit and performance in off-road applications.

The Icon Vehicle Dynamics Shield Wheel is designed to enhance vehicle dynamics while providing a robust and stylish option for off-road enthusiasts. With a diameter of 20 inches and a width of 9 inches, this wheel features a satin black finish and a one-piece cast aluminum construction that ensures durability and strength. The wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and includes an Icon Vehicle Dynamics logo center cap, making it a functional and aesthetic addition to your vehicle.

This wheel is engineered with application-specific dimensions that optimize caliper clearance and tire fitment, particularly for Ford, Toyota, and Jeep models. The 12 millimeter offset and 5.50 inch backspacing are tailored to improve suspension travel and steering function, allowing for enhanced performance both on and off the road. With a load capacity of 3700 pounds and a maximum tire diameter of 40 inches, the Shield Wheel is built to handle the demands of rugged terrain.

The 6 spoke design not only contributes to the wheel's strength but also adds a distinctive look that sets it apart from standard wheels. The aluminum alloy construction reduces unsprung weight and rotating mass, which can significantly improve vehicle handling and responsiveness. The Icon Vehicle Dynamics Shield Wheel is a reliable choice for those seeking to enhance their vehicle's performance and aesthetics.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Icon Vehicle Dynamics Logo Center Cap
• Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
• Reduced Unsprung Weight And Rotating Mass Improves On And Off-Road Vehicle Performance
• Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 1020908955SB
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 12
• Backspacing: 5.50
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 8x7.08
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 8x180
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 125.20
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Spoke
• With Inserts: No
• Load Capacity: 3700
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Icon Vehicle Dynamics Logo
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2011-2026 Chevrolet Silverado 2500 HD
• 2011-2026 Chevrolet Silverado 3500 HD
• 2016-2019 Chevrolet Suburban 3500 HD
• 2012-2026 GMC Sierra 2500 HD
• 2011-2014 GMC Sierra 3500 HD
• 2016-2026 GMC Sierra 3500 HD
