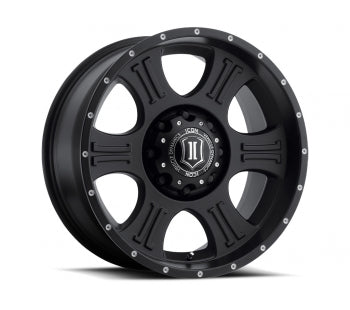

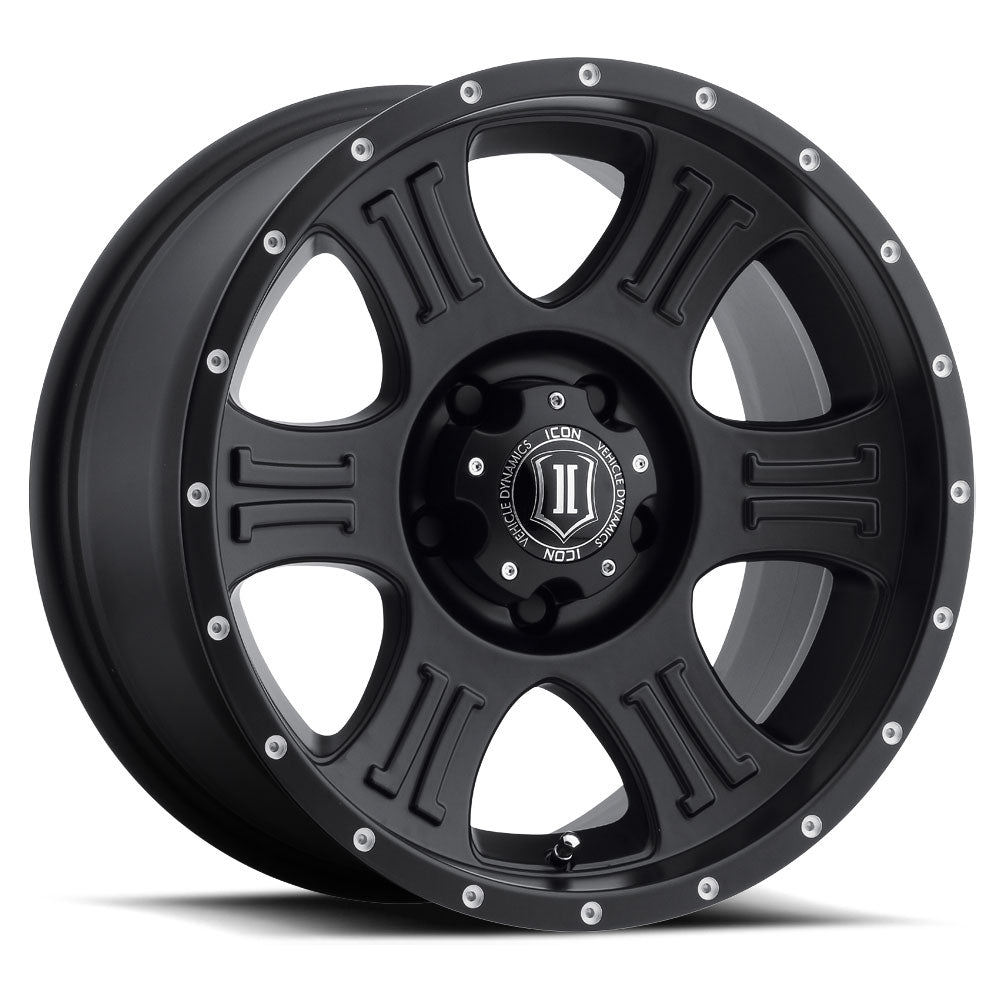

Icon Vehicle Dynamics Shield Wheel (MPN: 1020908150SB)

Engineered for optimal fit and performance in off-road applications.

The Icon Vehicle Dynamics Shield Wheel is designed to enhance vehicle dynamics while providing a robust and stylish option for off-road enthusiasts. With a diameter of 20 inches and a width of 9 inches, this wheel features a satin black finish and a 1 piece cast aluminum construction that ensures durability and strength. The wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and includes an Icon Vehicle Dynamics logo center cap, making it a functional and aesthetic addition to your vehicle.

This wheel is specifically engineered to maximize caliper clearance and optimize wheel position, allowing for un-hindered suspension travel and steering function. The application-specific dimensions are tailored for Ford, Toyota, and Jeep vehicles, ensuring a perfect fit. With a load capacity of 3700 pounds and a maximum tire diameter of 40 inches, the Shield Wheel is built to handle the demands of both on and off-road driving.

The 6 spoke design not only enhances the visual appeal but also contributes to reduced unsprung weight and rotating mass, improving overall vehicle performance. The 60 degree conical seat lug nut design and 5.00 inch backspacing further enhance the wheel's compatibility and functionality. The Shield Wheel is a reliable choice for those seeking to improve their vehicle's performance and aesthetics.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Icon Vehicle Dynamics Logo Center Cap
• Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
• Reduced Unsprung Weight And Rotating Mass Improves On And Off-Road Vehicle Performance
• Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 1020908150SB
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 0
• Backspacing: 5.00
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 8x6.69
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 8x170
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 125.20
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Spoke
• With Inserts: No
• Load Capacity: 3700
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Icon Vehicle Dynamics Logo
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2000-2005 Ford Excursion
• 1999-2026 Ford F-250 Super Duty
• 2000-2026 Ford F-350 Super Duty
