Durable 17 Inch Wheel with Advanced Bead Retention Technology

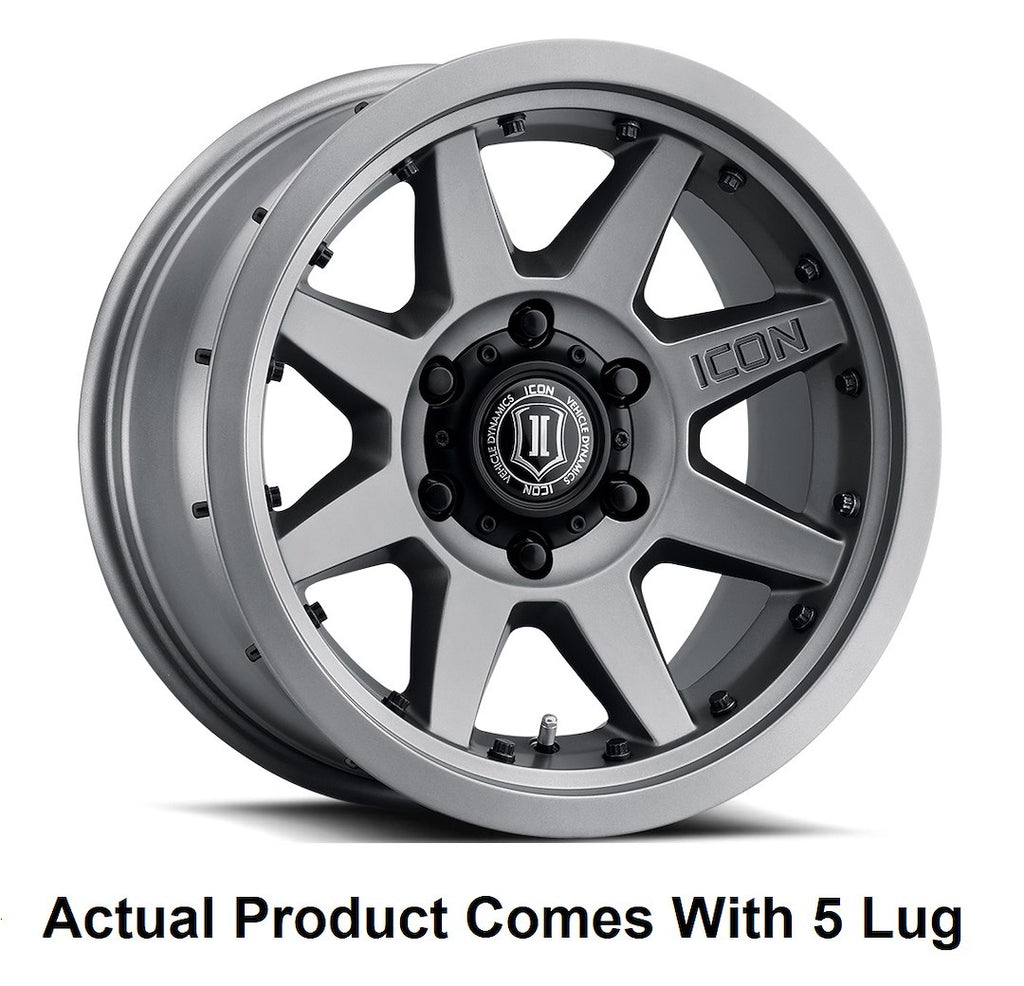

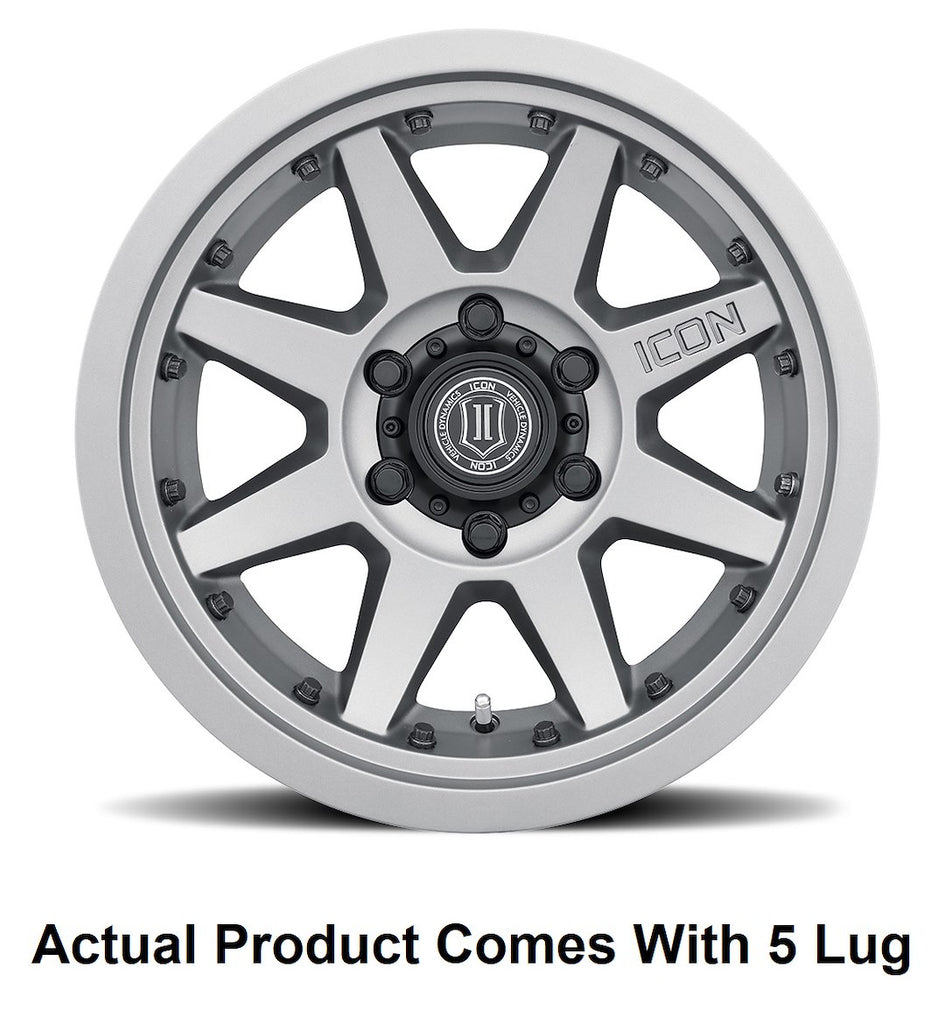

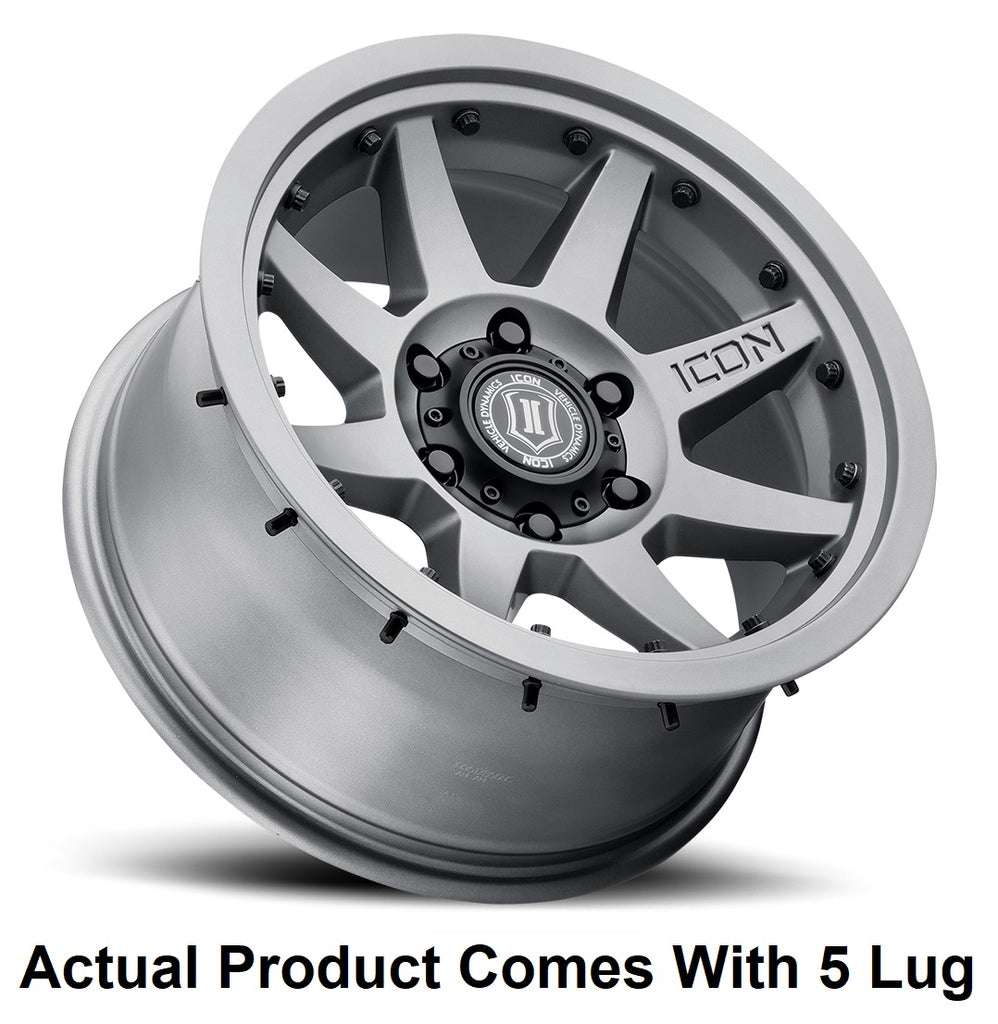

The Icon Vehicle Dynamics Rebound Wheel is engineered for both on-road safety and off-road performance, featuring a robust 17 inch diameter and 8.5 inch width. This wheel is constructed from high-strength aluminum alloy, ensuring durability and a load capacity of 2750 pounds. The patented InnerLock Technology incorporates a bead retention system that secures the tire bead to the wheel, providing confidence in various terrains and conditions.
Designed for DOT compliance, the Rebound Wheel is compatible with a wide variety of tires without the need for shims or special tools. Its strategic hardware placement maximizes protection from trail damage, while the reduced unsprung weight enhances handling characteristics. The wheel features a 60 degree conical seat lug nut design and a center bore of 71.50 millimeters, making it suitable for a range of vehicles.
With a sleek titanium finish and an 8 spoke design, the Icon Vehicle Dynamics Rebound Wheel not only performs well but also adds a modern aesthetic to your vehicle. The inclusion of the Icon Vehicle Dynamics logo center cap further emphasizes its quality and design. This single wheel is an excellent choice for those seeking reliability and performance in their off-road adventures.
Features
- Engineered For DOT Compliance And Super Strong 3200 Lbs Load Rating
- Patented InnerLock Technology Provides The Ultimate Blend Of On-Road Safety And Off-Road Performance, Ideal For The “weekend Warrior”
- Bead Retention System Features Alloy Pins That Are Removable, Reusable, And Replaceable
- Hardened Bead Retention Pins Utilize A SAE J1926 O-Ring Seal And Are Constructed From High Strength Alloy That Is Thermochemically Treated For Extreme Corrosion Resistance
- Strategically Placed Hardware For Maximum Protection From Trail Damage
- Compatible With A Wide Variety Of Tires Without The Need For Any Shims Or Special Tools
- Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
- Reduced Unsprung Weight And Rotating Mass (Compared To A Traditional Bead Lock) Improves Handling Characteristics And Vehicle Dynamics
- Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 21817857345TT
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 17
- Width: 8.5
- Offset: -6
- Backspacing: 4.50
- Finish: Powder Coated
- Color: Titanium
- Material: Aluminum
- Bolt Pattern Inch: 5x5.00
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 5x127
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 71.50
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 8 Spoke
- With Inserts: No
- Load Capacity: 2750
- Size: 17x8.5
- Max Tire Diameter: 40
- Center Cap Design: Icon Vehicle Dynamics Logo
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1959-1964 Buick Electra
- 1991-1996 Buick Roadmaster
- 1988-1992 Cadillac Brougham
- 1970-1974 Cadillac DeVille
- 1980-1990 Chevrolet Caprice
- 1970-1974 Chrysler Imperial
- 1967-1974 GMC C15/C1500 Pickup
- 1987-1987 GMC R1500
- 2020-2025 Jeep Gladiator JT
- 2026-2026 Jeep Wrangler
- 2007-2018 Jeep Wrangler JK
- 2018-2025 Jeep Wrangler JL
