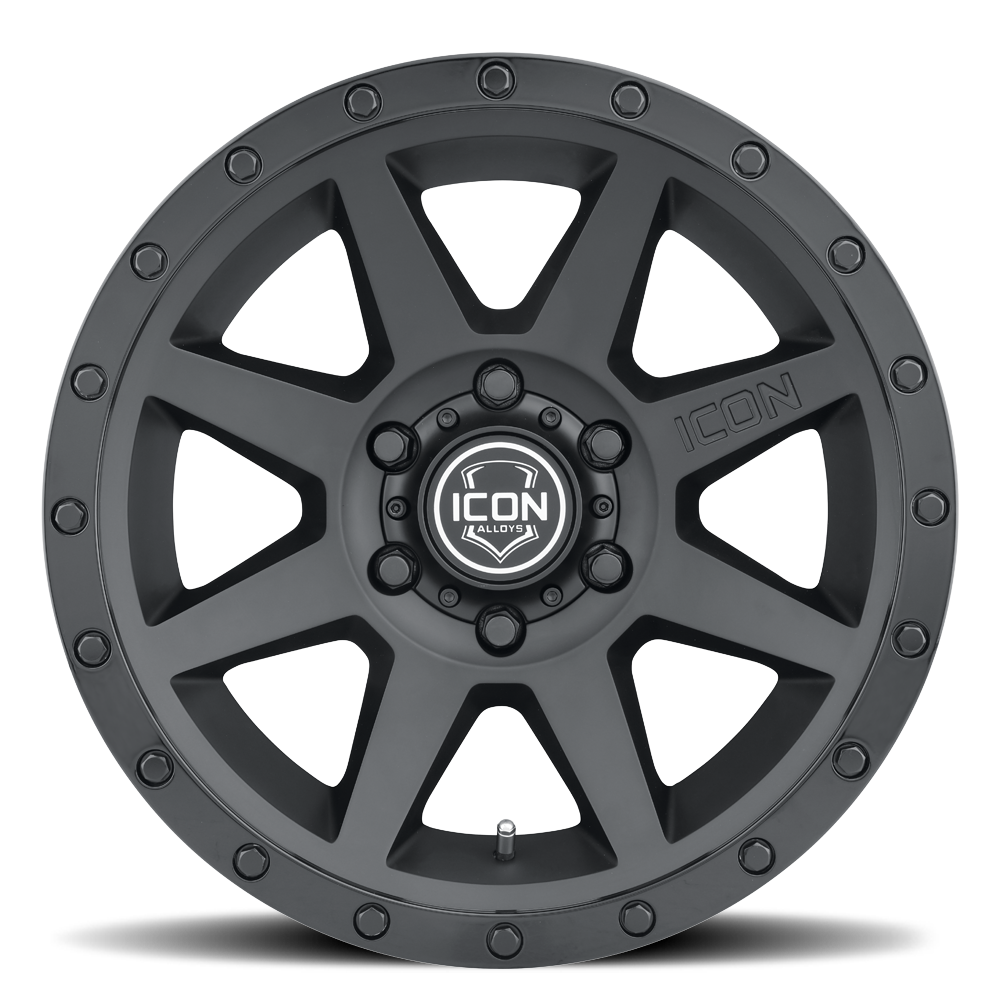

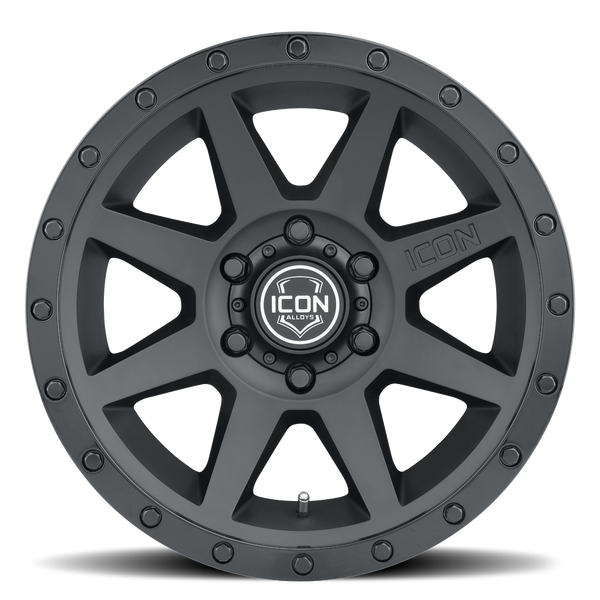

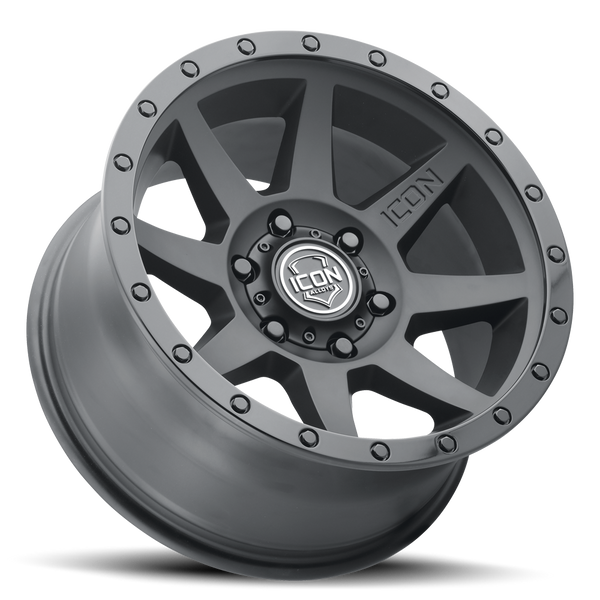

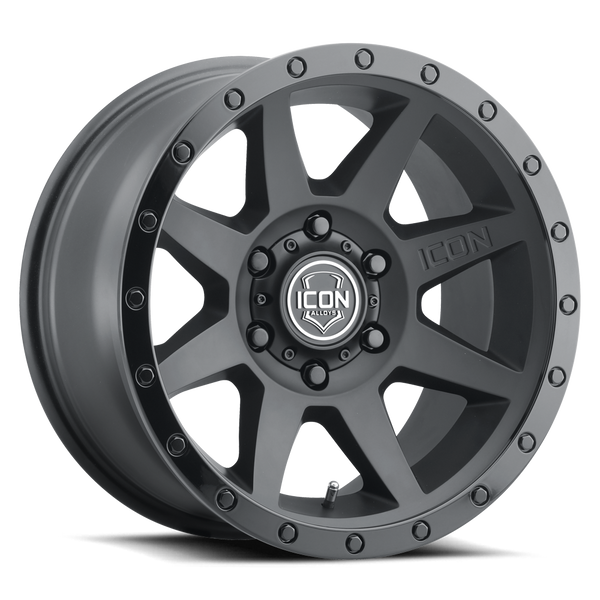

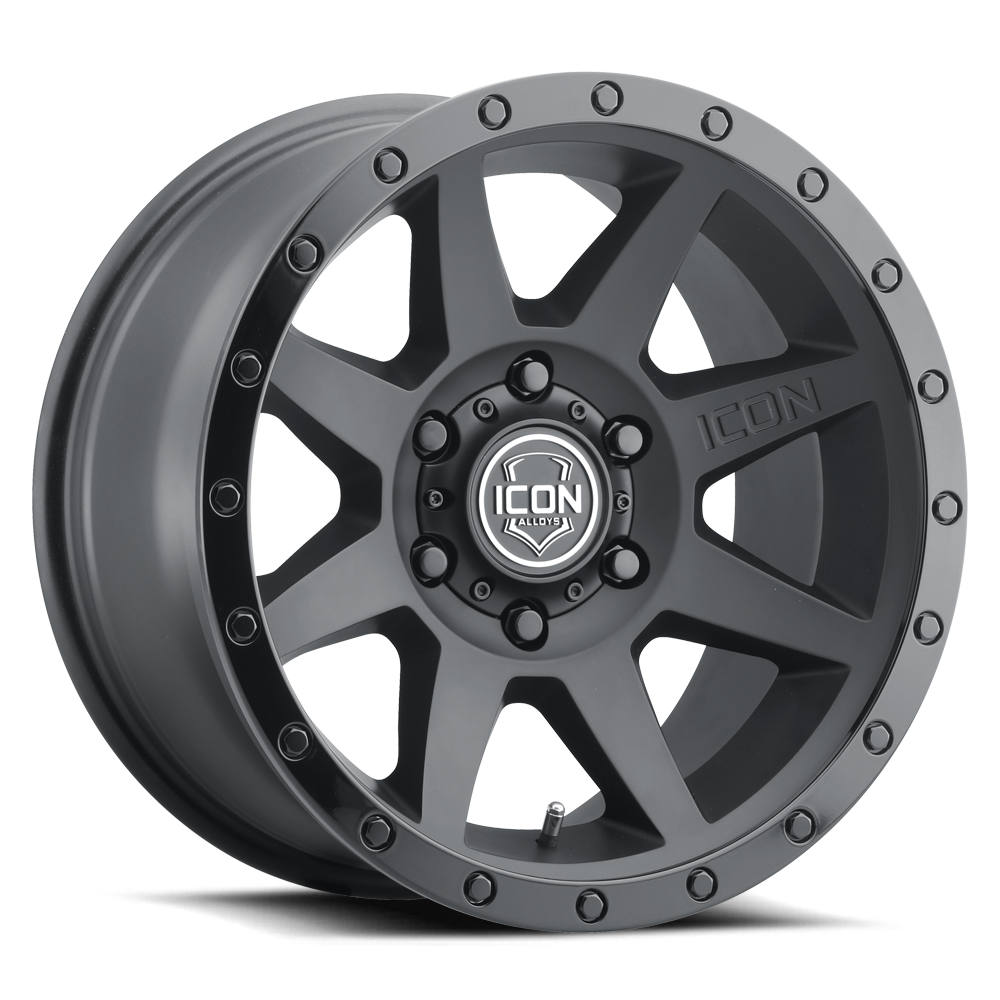

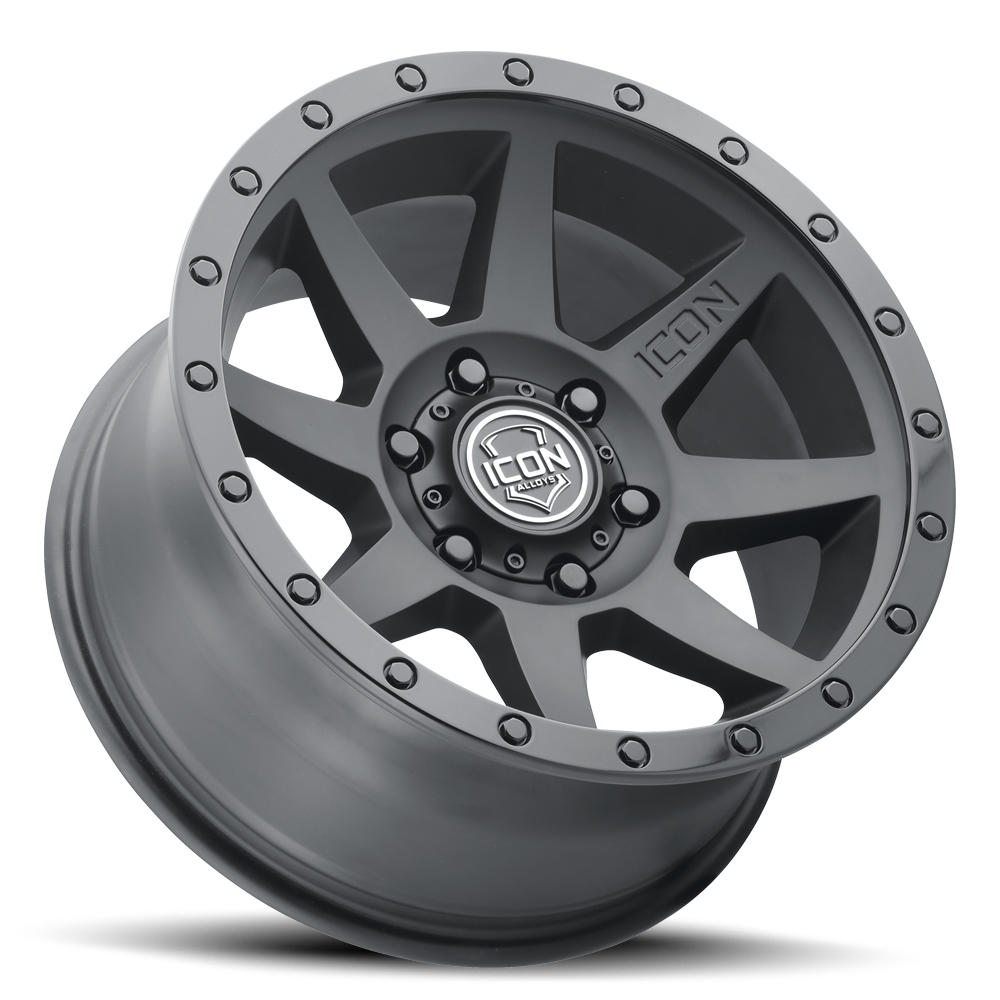

Icon Vehicle Dynamics Rebound Wheel (MPN: 1817858347DB)

Enhance your vehicle's performance and aesthetics with precision engineering.

The Icon Vehicle Dynamics Rebound Wheel is designed to elevate the performance and appearance of your Jeep, truck, or SUV. With a diameter of 17 inches and a width of 8.5 inches, this wheel features a robust 1 piece cast aluminum construction that ensures durability and strength, making it suitable for both on and off-road applications. The wheel's 8 spoke design and double black finish provide a bold aesthetic while optimizing caliper clearance and suspension travel.

Engineered with application-specific dimensions, the Rebound Wheel reduces scrub radius, enhancing handling and ride quality. It boasts a load capacity of 2750 pounds and is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring safety and performance. The 60 degree conical seat lug nut design and 106.10 millimeter center bore further contribute to its reliable fitment and functionality.

With a maximum tire diameter of 40 inches, this wheel is ideal for those looking to maximize their vehicle's capabilities. The inclusion of the Icon Vehicle Dynamics logo center cap adds a touch of branding, while the lifetime structural warranty underscores the quality and reliability of this product. The Rebound Wheel is a strategic choice for those seeking to enhance their vehicle's dynamics and aesthetics.

Features

• Double Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Icon Vehicle Dynamics Logo Center Cap
• Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
• Reduced Unsprung Weight And Rotating Mass Improves On And Off-Road Vehicle Performance
• Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 1817858347DB
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 0
• Backspacing: 4.75
• Finish: Painted
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 6x5.50
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x139.7
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 106.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 2750
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Icon Vehicle Dynamics Logo
• Finish Warranty: 2 Years
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• ICON_Warranty_2023_1730.pdf
