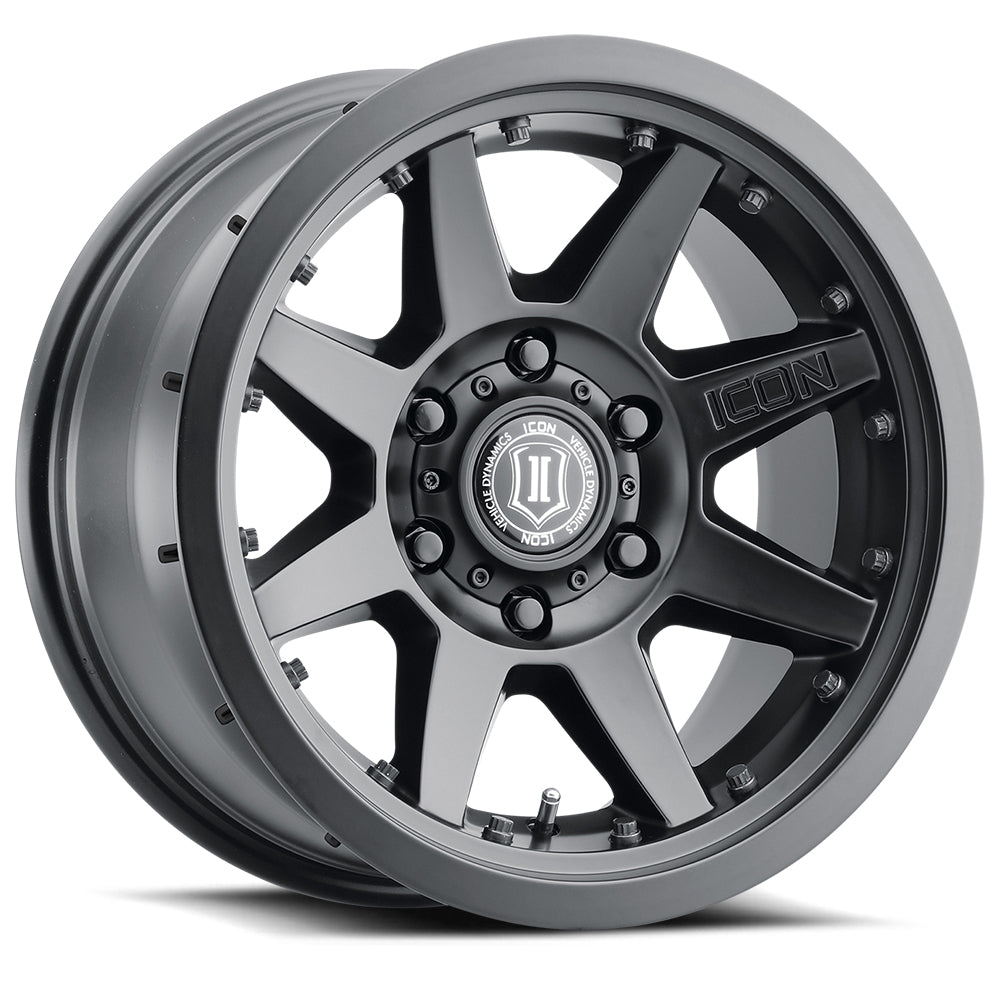

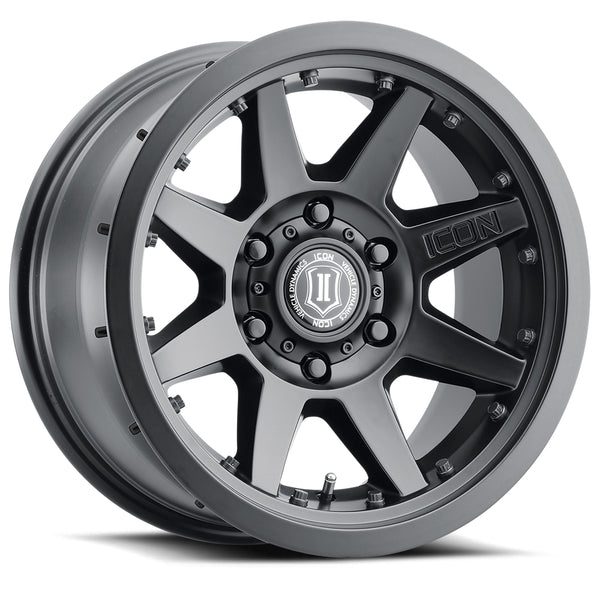

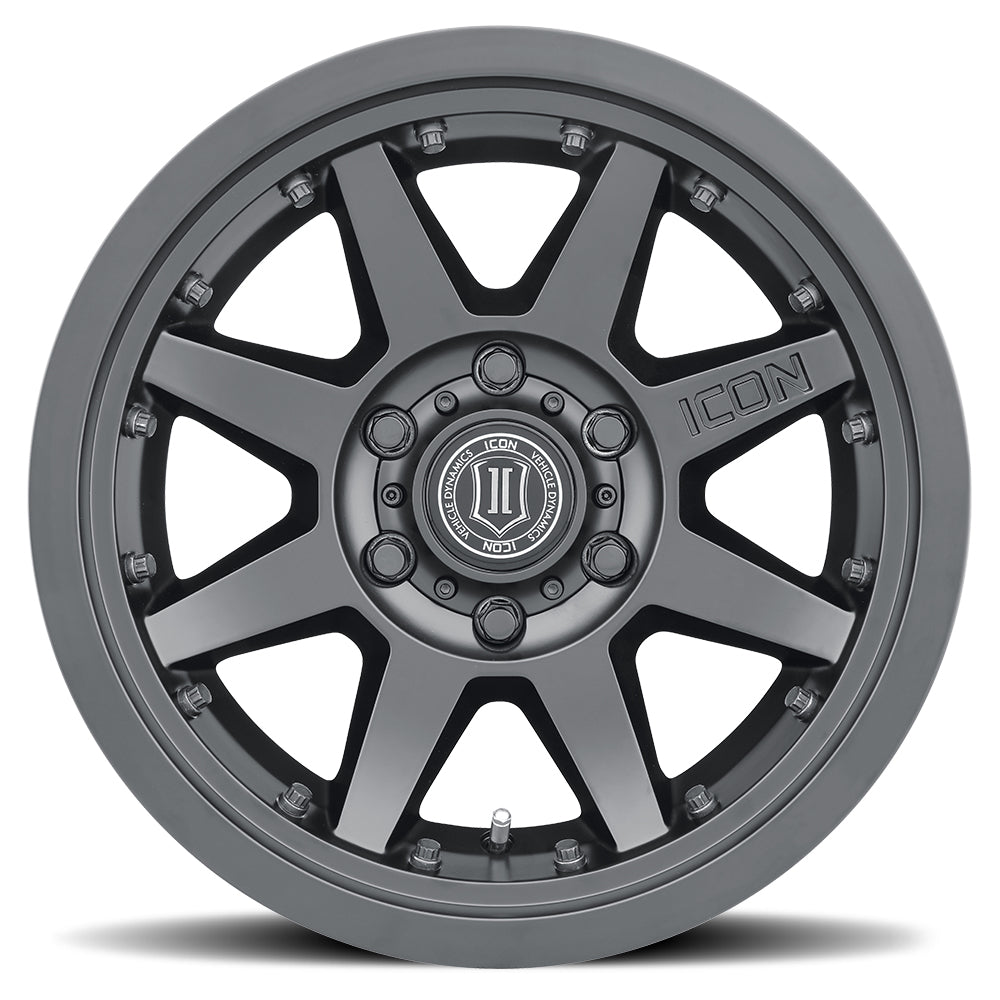

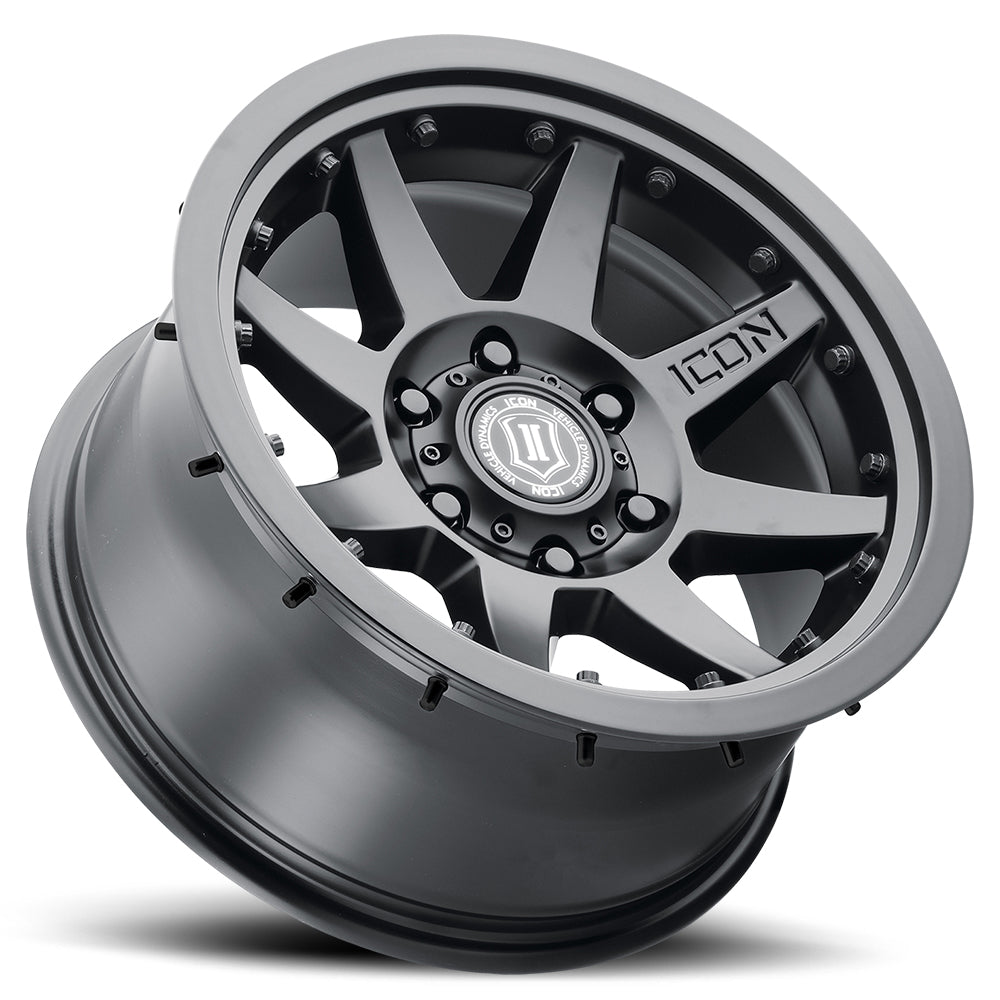

Icon Vehicle Dynamics Rebound PRO Wheel (MPN: 21817856350SB)

Advanced bead retention technology for off-road performance and safety.

The Icon Vehicle Dynamics Rebound PRO Wheel is engineered for off-road enthusiasts seeking durability and performance. With a diameter of 17 inches and a width of 8.5 inches, this wheel features a robust 6 x 135 millimeter bolt pattern and a 6 millimeter offset, ensuring compatibility with a variety of vehicles. The one-piece cast aluminum construction provides strength while maintaining a lightweight profile, enhancing vehicle dynamics and handling characteristics.

This wheel incorporates patented InnerLock technology, which offers a superior bead retention system that secures the tire bead without the need for traditional beadlock mechanisms. This innovation allows for lower tire pressures, improving ride quality and traction, while remaining fully DOT compliant for on-road use. The Rebound PRO has been rigorously tested in real-world conditions, demonstrating its ability to withstand extreme loads without de-beading the tire.

Additional features include hardened bead retention pins for enhanced corrosion resistance and a design that optimizes tire clearance and vehicle dynamics. The wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and supports a maximum tire diameter of 40 inches. With a load capacity of 3200 pounds, the Rebound PRO is built to tackle any terrain, making it a reliable choice for off-road adventures.

Features

• Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use
• Hardened Bead Retention Pins Utilize A SAE J1926 O-Ring Seal And Are Constructed From High Strength Alloy That Is Thermochemically Treated For Extreme Corrosion Resistance
• Engineered For DOT Compliance
• Bead Retention System Features Alloy Pins That Are Removable, Reusable, And Replaceable
• Patented InnerLock Technology (U.S. Patent No. 11,090,976) Provides The Ultimate Blend Of On-Road Safety And Off-Road Performance, Ideal For The Weekend Warrior
• Strategically Placed Hardware For Maximum Protection From Trail Damage
• Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
• Reduced Unsprung Weight And Rotating Mass (Compared To A Traditional Bead Lock) Improves Handling Characteristics And Vehicle Dynamics
• Compatible With A Wide Variety Of Tires Without The Need For Any Shims Or Special Tools

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 21817856350SB
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 6
• Backspacing: 5.00
• Finish: Painted Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 6x5.31
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x135
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 3200
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Icon Vehicle Dynamics Logo
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2022-2026 Ford Bronco
• 2016-2019 Ford Expedition
• 2021-2024 Ford Expedition
• 2009-2026 Ford F-150

Technical Documents

• 21817856350BR_WAR.pdf
