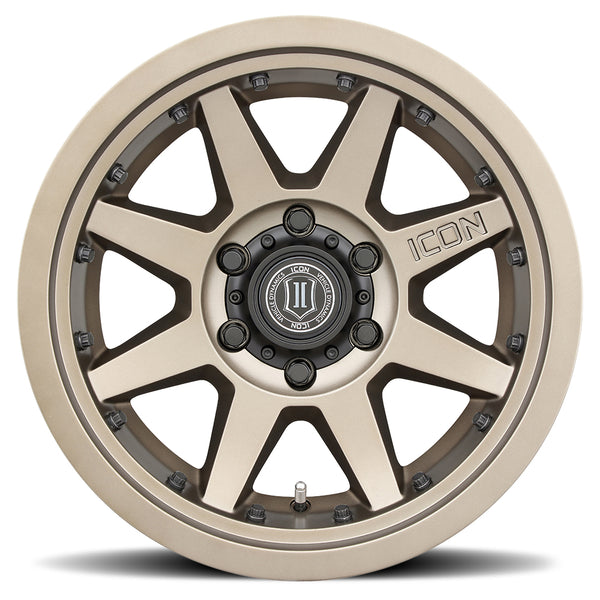

Icon Vehicle Dynamics Rebound PRO Wheel (MPN: 21817856350BR)

Advanced bead retention technology for off-road performance and safety.

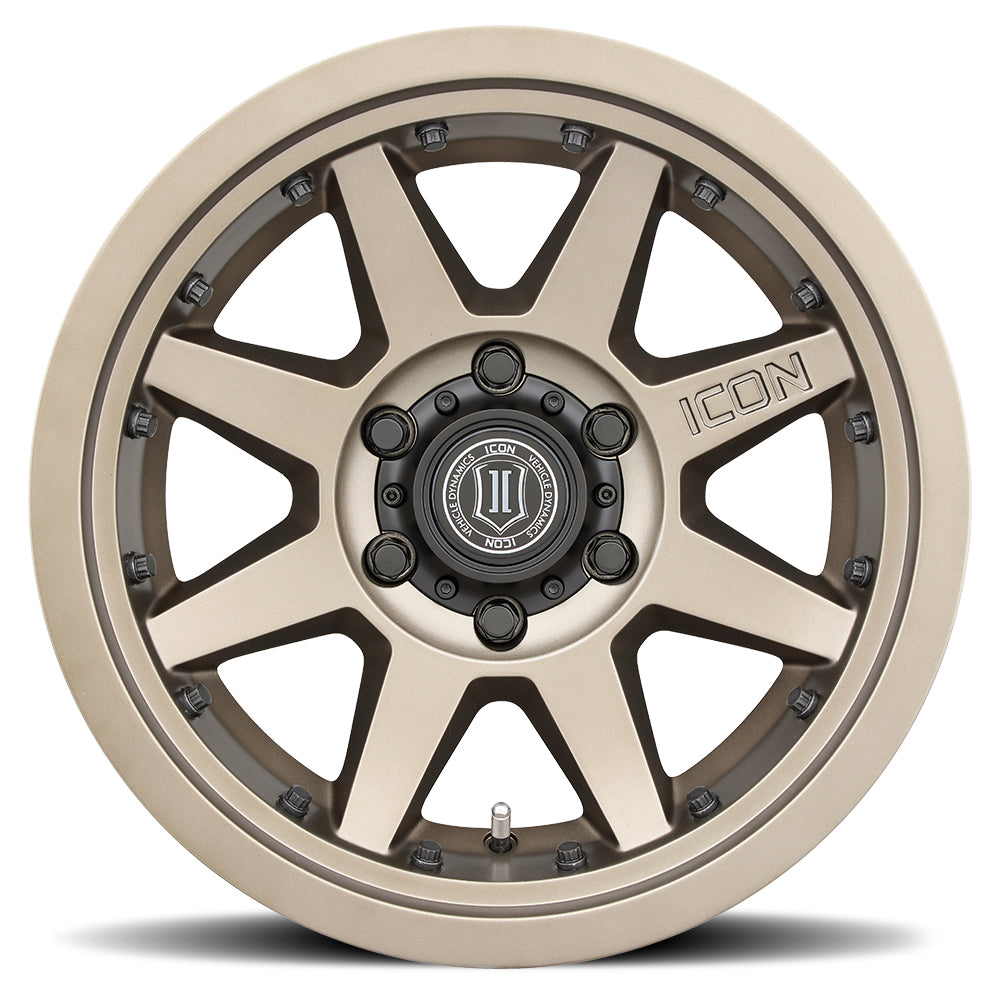

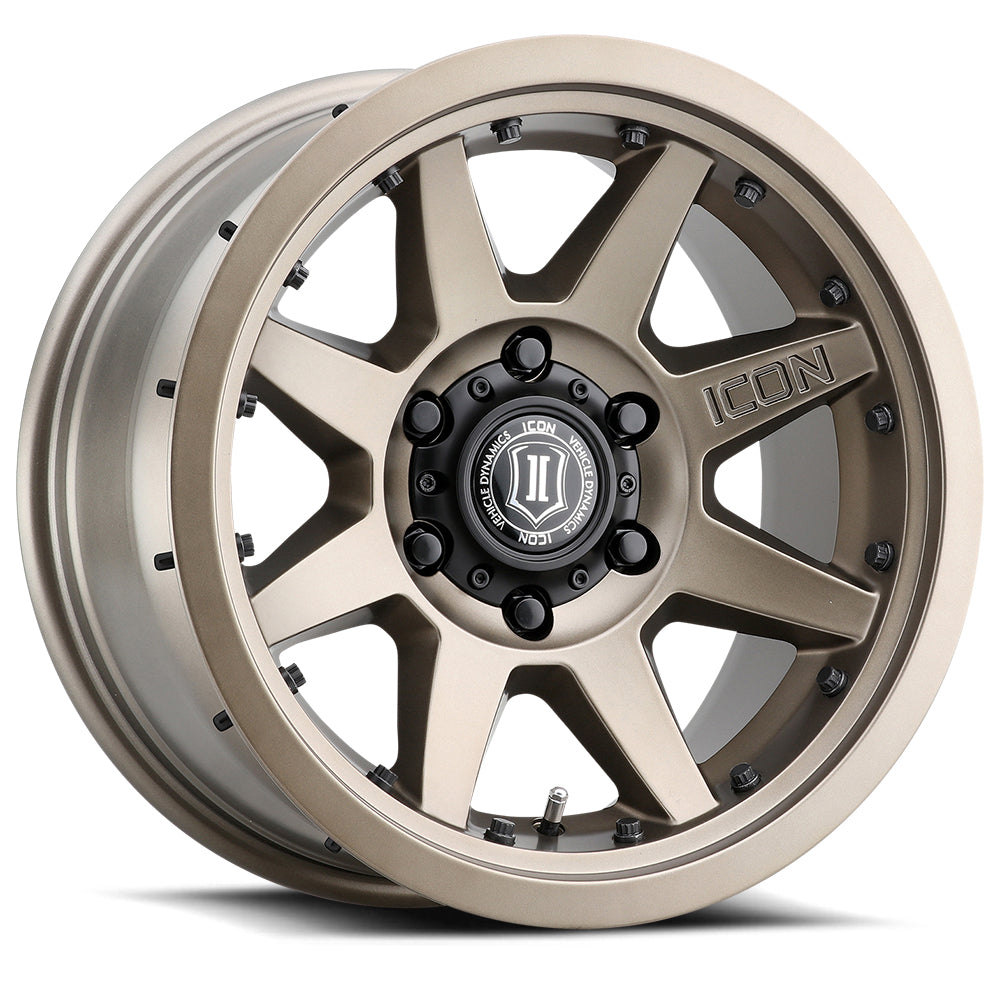

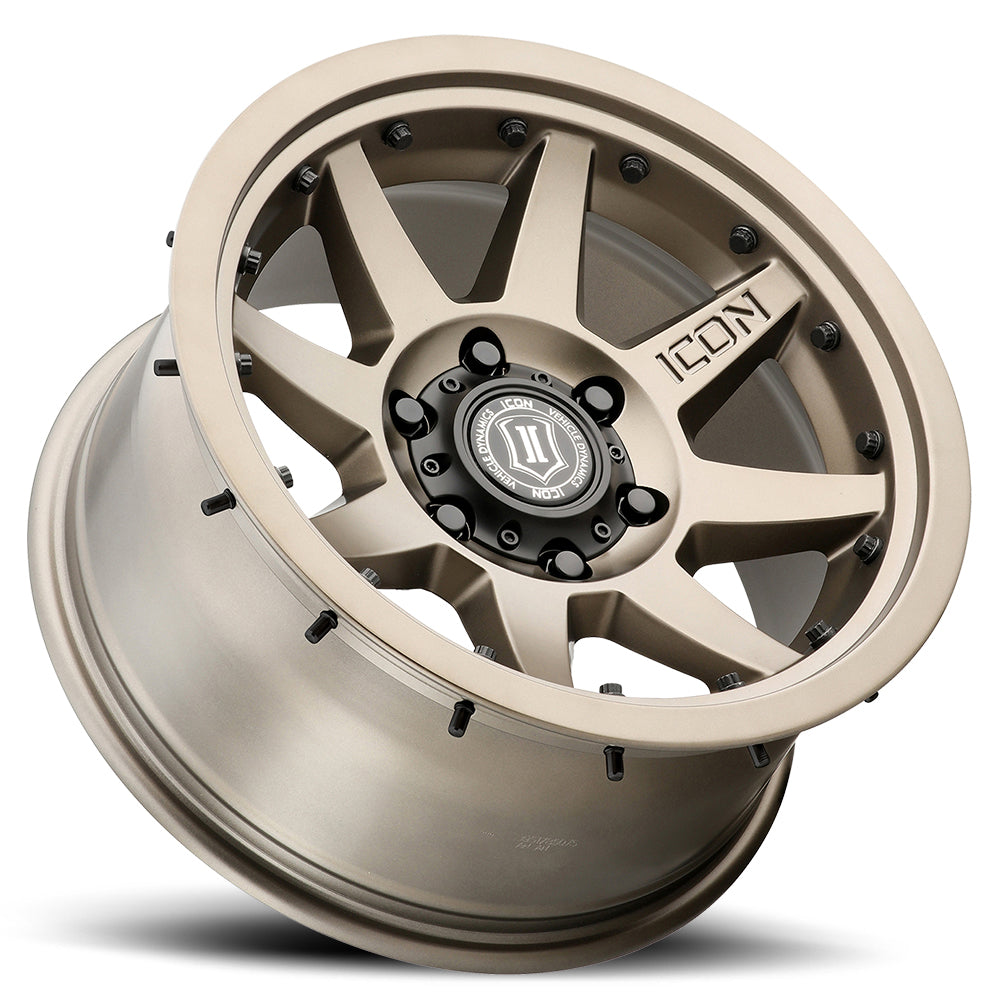

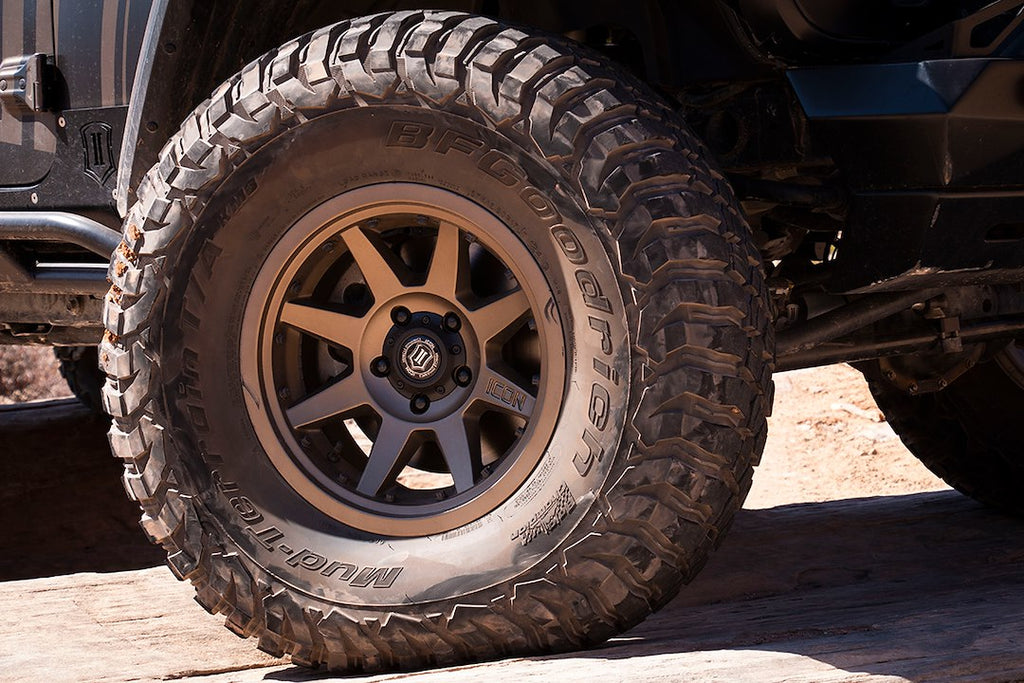

The Icon Vehicle Dynamics Rebound PRO Wheel is engineered for off-road enthusiasts seeking durability and performance. With a diameter of 17 inches and a width of 8.5 inches, this wheel features a robust 8 spoke design made from one-piece cast aluminum, ensuring strength and reliability under extreme conditions. The patented InnerLock technology provides a secure bead retention system that maintains tire integrity during aggressive driving, while remaining fully DOT compliant for on-road use.

This wheel is designed with a 6 x 135 millimeter bolt pattern and a 6 millimeter offset, making it compatible with a wide range of vehicles. The 60 degree conical seat lug nut design and 87.10 millimeter center bore enhance fitment and stability. With a load capacity of 3200 pounds and a maximum tire diameter of 40 inches, the Rebound PRO is built to handle the demands of off-road adventures.

The aluminum alloy construction not only offers strength but also reduces unsprung weight and rotating mass compared to traditional beadlock wheels, improving handling characteristics. The hardened bead retention pins are designed for extreme corrosion resistance and are removable, reusable, and replaceable, ensuring long-term performance. The Icon Vehicle Dynamics Rebound PRO Wheel is the ideal choice for those who require a reliable and high-performing wheel for both on and off-road applications.

Features

• Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use
• Hardened Bead Retention Pins Utilize A SAE J1926 O-Ring Seal And Are Constructed From High Strength Alloy That Is Thermochemically Treated For Extreme Corrosion Resistance
• Engineered For DOT Compliance
• Bead Retention System Features Alloy Pins That Are Removable, Reusable, And Replaceable
• Patented InnerLock Technology (U.S. Patent No. 11,090,976) Provides The Ultimate Blend Of On-Road Safety And Off-Road Performance, Ideal For The Weekend Warrior
• Strategically Placed Hardware For Maximum Protection From Trail Damage
• Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
• Reduced Unsprung Weight And Rotating Mass (Compared To A Traditional Bead Lock) Improves Handling Characteristics And Vehicle Dynamics
• Compatible With A Wide Variety Of Tires Without The Need For Any Shims Or Special Tools

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 21817856350BR
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 6
• Backspacing: 5.00
• Finish: Painted
• Color: Bronze
• Material: Aluminum
• Bolt Pattern Inch: 6x5.31
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x135
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Load Capacity: 3200
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Icon Vehicle Dynamics Logo
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2022-2026 Ford Bronco
• 2016-2019 Ford Expedition
• 2021-2024 Ford Expedition
• 2009-2026 Ford F-150

Technical Documents

• 21817856350BR_WAR.pdf
