Enhance your vehicle's performance with advanced suspension technology.

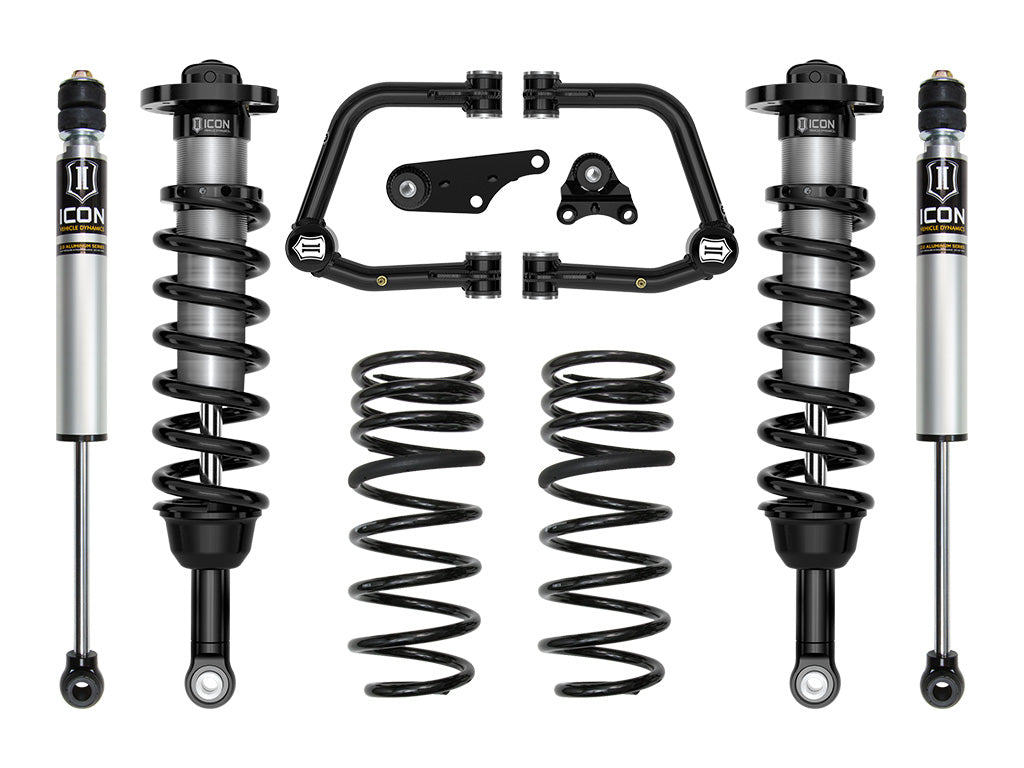

The ICON Vehicle Dynamics Lift Kit Suspension is engineered for maximum performance, focusing on increased wheel travel and improved damping ability. This Stage 2 system features vehicle-specific tuned 2.5 Series coilover shocks with internal reservoirs, providing exceptional cooling and superior ride quality both on and off-road. The adjustable coilovers allow for a front lift height of 1-1/4 to 3 inches, accommodating larger wheel and tire combinations while maintaining optimal suspension travel and preventing CV bind.
Incorporating a combination of front differential drop brackets and ICON's specifically designed coilover lengths, this suspension system maximizes front suspension travel. The kit includes polyurethane differential mounting bushings that replace the original equipment bushings, limiting differential movement under load. The billet aluminum upper control arms enhance performance by correcting front-end geometry and allowing for increased camber and caster adjustments.
The rear suspension features a triple-rate coil design that balances on-road comfort with off-road performance, providing excellent bottoming resistance. The ICON 2.0 Aluminum Series rear shocks utilize vehicle-specific valving to ensure balanced performance from front to rear. This comprehensive suspension system is designed for serious drivers looking to enhance their pickup's capabilities on various terrains.
Features
- Vehicle Specific Tuned Front And Rear Shocks For Superior Shock Damping And Control
- Increased Wheel Travel And Improved Ride Quality Over Stock
- Front Differential Drop Provides Better Maximum Operating Angle For CV Joints
- Adjustable Coilovers Provide 1-1/4 To 3 Inch Front Lift Height Over Stock
- Billet Aluminum UCAs For Added Strength, Durability, And On-Vehicle Caster And Camber Adjustment For Optimum Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degree Of Total Articulation
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Shafts
- ICON Engineered Front And Rear Coil Springs
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53292TS
- Front Lift Amount (IN): 1-1/4 To 3 Inch
- Rear Lift Amount (IN): 1/2 Inch
- Maximum Tire Size: 33 x 11.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Shock Type: Nitro Gas Charged
- Wheel Backspacing (IN): 5.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 25
- Shocks: With Front Coil Over Shock Absorbers And Rear Shock Absorbers In Kit
- Color: Black/ Silver Components
Compatibility / Fit
- 2024-2025 Toyota Tacoma
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
