Enhance your vehicle's performance with adjustable lift and improved handling.

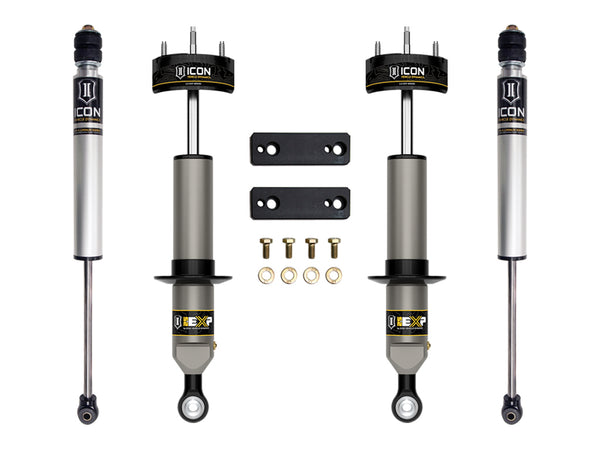

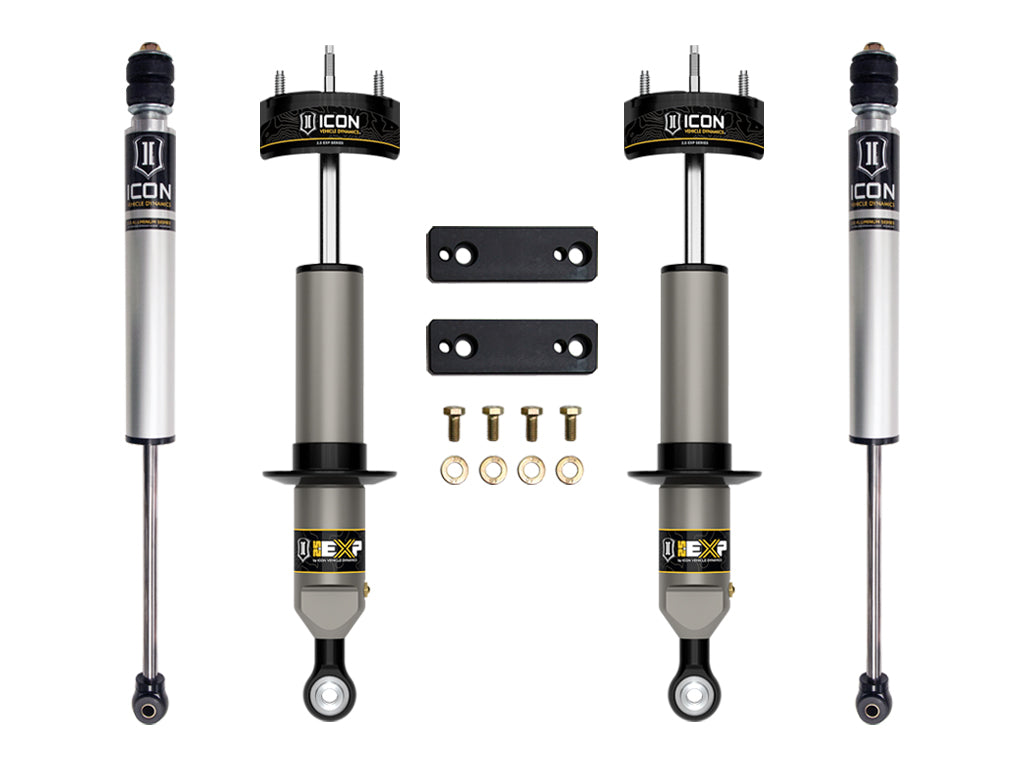

The Icon Vehicle Dynamics Stage 1 EXP suspension system is designed to enhance both on-road and off-road performance while providing a front-end lift for a proper stance. This entry-level performance suspension system allows for a lift of 0 to 2 inches, accommodating up to 33-inch tires. It features the innovative 2.5 EXP series coilover shocks, which utilize the factory coil spring and hardware, ensuring a cost-effective solution without compromising on quality.
The system includes 2.0 Aluminum Series rear shock absorbers that are specifically tailored to work in conjunction with the front coilovers, delivering balanced vehicle control and improved driving dynamics. The sway bar relocation brackets included in the kit help maintain sway bar clearance from the coilovers, allowing for full wheel travel without overstressing original equipment components. This design promotes a smoother ride and better handling both on and off the road.
All shock absorbers in the Icon lineup are fully rebuildable and re-tunable, providing flexibility for future adjustments and maintenance. The combination of adjustable ride heights and high-quality materials ensures that this suspension system meets the demands of everyday driving as well as more adventurous off-road excursions.
Features
- 2.5 EXP Series Front Shocks With Internal Reservoirs Utilize Factory Coil And Coil Hardware
- Adjustable Front Ride Heights From 0 To 2 Inch Of Front Lift Over Stock With The Use Of Snap Ring
- Sway Bar Relocation Brackets Reduce Ensure Sway Bar Clearance From EXP Coilovers
- Allows For Full Wheel Travel Without Overstressing OE Components
- 2.0 Aluminum Series Rear Shocks Provide Balanced Tune With Coilovers And Increased Performance
- All Icon Shock Absorbers Are Fully Rebuildable And Re-Tunable
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53220
- Lift Height: 0 To 2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 33 x 11.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 4.75 To 5
- Wheel Offset (MM): 0
- Color: Black Components/ Silver Shocks
- Material: Aluminum
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2005-2023 Toyota Tacoma
