Enhance your Toyota Tundra's performance with adjustable lift and damping control.

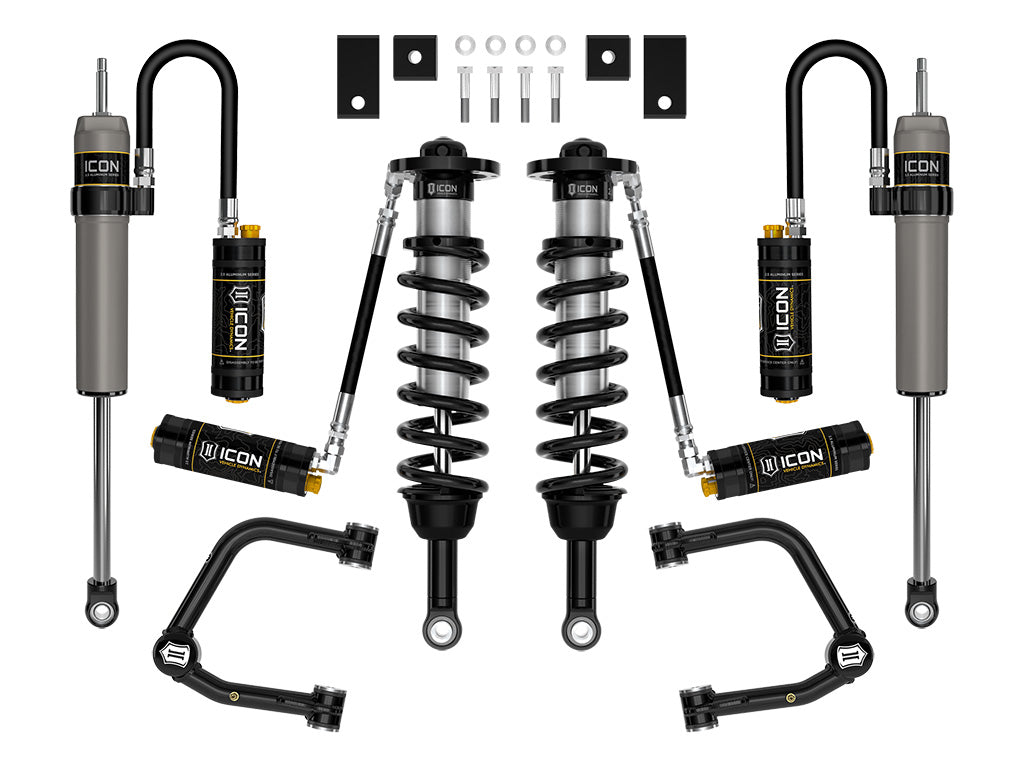

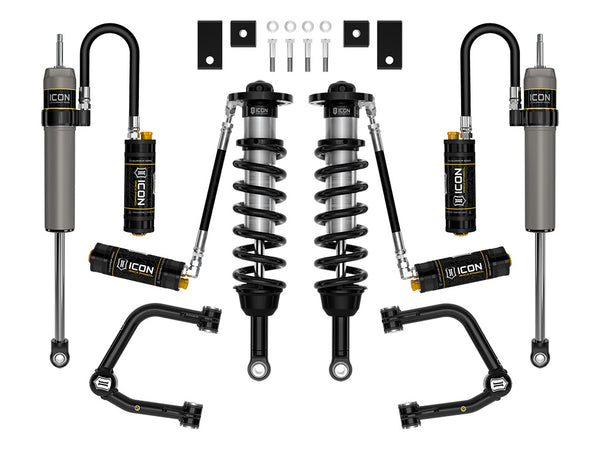

The Icon Vehicle Dynamics Stage 9 complete suspension system is designed for the 2022 to 2023 Toyota Tundra, providing a significant upgrade to both front and rear shock absorbers. This system features Compression Damping Control Valves (CDCV) that allow for precise tuning of suspension performance, making it suitable for various driving conditions, from street use to off-road adventures. With adjustable compression damping and an increased front-end lift height range, this suspension kit accommodates larger tire sizes up to 35 inches, ensuring optimal fitment and stance.
The Stage 9 system includes 2.5 Series remote reservoir coilovers and rear shocks, which enhance ride quality and performance. The larger shock body and increased piston area contribute to a maximum travel increase of up to 40 percent over stock components, providing superior handling and comfort. Additionally, the included billet front upper control arms and sway bar drop brackets improve alignment and reduce binding, further enhancing drivability.
This suspension kit is engineered for durability and performance, featuring fully rebuildable and re-tunable shock absorbers. The adjustable front ride heights range from 1-1/4 to 3-1/2 inches over stock, allowing for customization based on user preference. The system is designed to resist overheating and cavitation, ensuring consistent performance under demanding conditions.
Features
- 2.5 Series Front Coilovers With Remote Reservoirs For Superior Damping And Vehicle Control Along With Improved Shock Cooling
- Adjustable Front Ride Heights From 1-1/4 To 3-1/2 Inch Of Front Lift Over Stock When Used With Provided Billet Aluminum UCAs
- All Shock Absorbers Equipped With CDC Valves For 10 Settings Of Compression Damping Adjustment, From Soft To Hard
- Tubular UCAs For Added Strength, Durability, And Alignment Correction For Better Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degrees Of Total Articulation
- Provided Sway Bar Drop Brackets Reduce Bind In OE Sway Bar Links
- Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- 2.5 Aluminum Series Rear Remote Reservoir Shocks Provide Increased Performance And Balanced Tune With Coilovers
- All ICON Shock Absorbers Are Fully Rebuildable And Re-Tunable
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53199T
- Lift Height: 2 To 3-1/2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Material: Aluminum
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2022-2025 Toyota Tundra
