Enhance your Toyota Tundra's performance with adjustable lift and superior damping.
The Icon Vehicle Dynamics Stage 9 complete suspension system is designed for the 2022 to 2023 Toyota Tundra, providing a comprehensive upgrade to both front and rear shock absorbers. This system features Compression Damping Control Valves (CDCV) that allow for precise tuning of suspension performance, enhancing both on-road and off-road capabilities. With adjustable compression damping, users can optimize their ride for various driving conditions, from street driving to rugged terrain.
This suspension kit offers a lift height adjustability ranging from 1-1/4 to 3-1/2 inches, accommodating larger tire sizes up to 35 inches. The inclusion of billet aluminum front upper control arms ensures added strength and durability, while also allowing for caster and camber adjustments to improve drivability. The remote reservoir design of the shocks increases oil volume and heat dissipation, preventing overheating during intense use.
The Stage 9 system is engineered to provide up to a 40 percent increase in front wheel travel compared to stock components, ensuring superior ride quality and performance. Each shock absorber is equipped with externally adjustable CDC valves, offering ten settings for compression damping to suit individual preferences. This complete kit is fully rebuildable and re-tunable, ensuring long-lasting performance and adaptability for various driving conditions.
Features

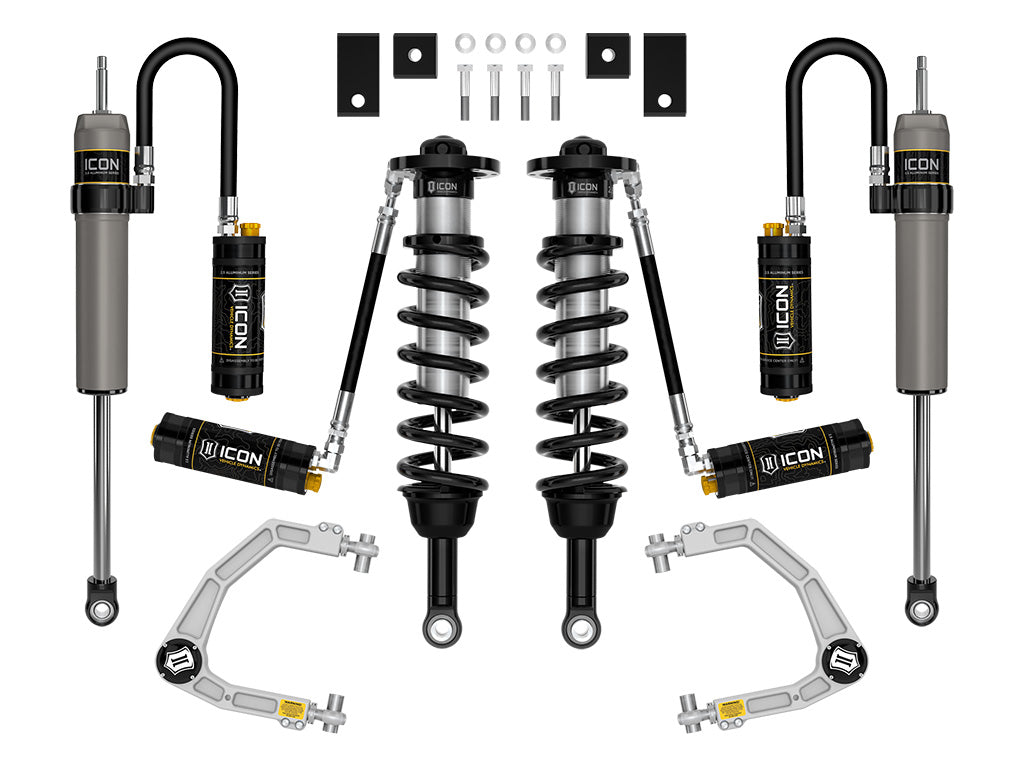

- 2.5 Series Front Coilovers With Remote Reservoirs For Superior Damping And Vehicle Control Along With Improved Shock Cooling
- Adjustable Front Ride Heights From 2 To 3-1/2 Inch Of Front Lift Over Stock When Used With Provided Billet Aluminum UCAs
- All Shock Absorbers Equipped With CDC Valves For 10 Settings Of Compression Damping Adjustment, From Soft To Hard
- Billet Aluminum UCAs For Added Strength, Durability, And On-Vehicle Caster Or Camber Adjustment For Optimum Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degrees Of Total Articulation
- Provided Sway Bar Drop Brackets Reduce Bind In OE Sway Bar Links
- Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- 2.5 Aluminum Series Rear Remote Reservoir Shocks Provide Increased Performance And Balanced Tune With Coilovers
- All ICON Shock Absorbers Are Fully Rebuildable And Re-Tunable
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53199
- Lift Height: 1-1/4 To 3-1/2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Material: Aluminum
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2022-2025 Toyota Tundra
