Enhance your Toyota Tundra's performance with adjustable lift and superior damping.

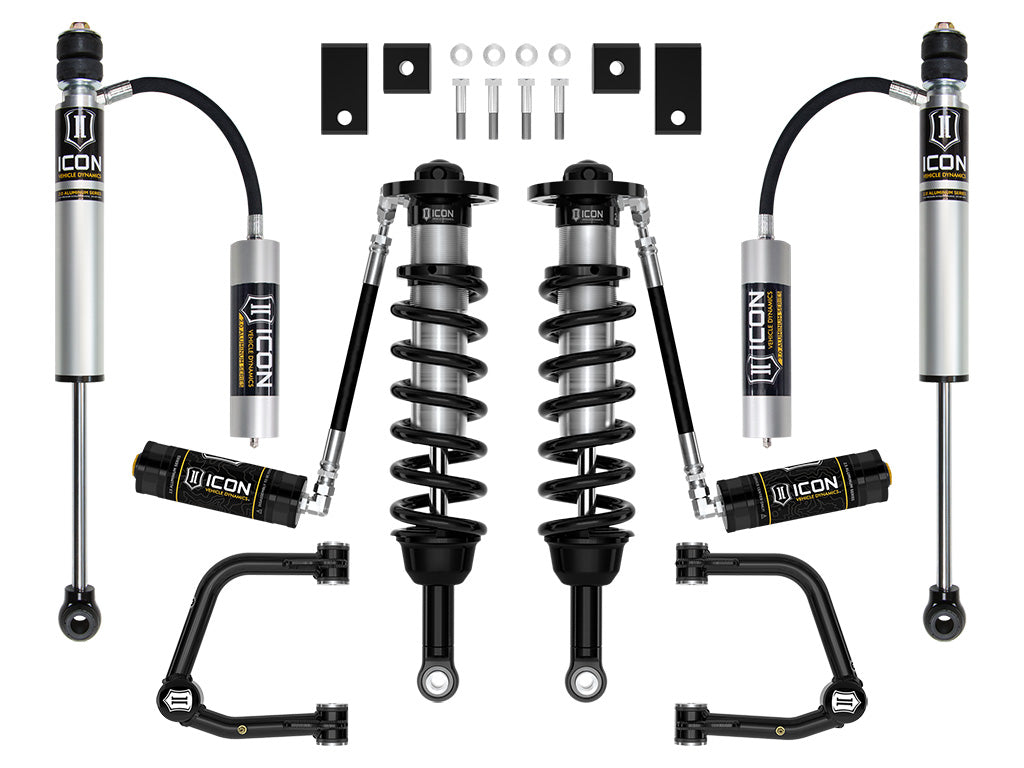

The Icon Vehicle Dynamics Stage 5 complete suspension system is designed for the 2022 to 2023 Toyota Tundra, offering a comprehensive upgrade to enhance both on- and off-road performance. This system features 2.5 Series front coilovers with remote reservoirs, providing superior damping and improved shock cooling, which is essential for maintaining vehicle control under various driving conditions. The adjustable front ride heights allow for a lift of 2 to 3-1/2 inches over stock, accommodating larger wheel and tire combinations up to 35 inches.
In addition to the front coilovers, the system includes 2.0 Aluminum Series rear remote reservoir shocks that are tuned to work in harmony with the front components, ensuring balanced performance and increased heat dissipation. The tubular upper control arms (UCAs) enhance strength and durability while allowing for better alignment correction, which contributes to improved drivability. The patented Delta Joint Pro in the UCAs offers 90 degrees of articulation, further enhancing suspension flexibility.
This fully bolt-on system requires no drilling, cutting, or welding for installation, making it accessible for a range of users. With a maximum front wheel travel increase of up to 40 percent over stock, the suspension system is engineered to provide superior ride quality and performance, whether navigating rugged terrains or cruising on highways.
Features
- 2.5 Series Front Coilovers With Remote Reservoirs For Superior Damping And Vehicle Control Along With Improved Shock Cooling
- Adjustable Front Ride Heights From 2 To 3-1/2 Inch Of Front Lift Over Stock When Used With Provided Billet Aluminum UCAs
- Tubular UCAs For Added Strength, Durability, And Alignment Correction For Better Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degrees Of Total Articulation
- Provided Sway Bar Drop Brackets Reduce Bind In OE Sway Bar Links
- Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- 2.0 Aluminum Series Rear Remote Reservoir Shocks Provide Balanced Tune With Coilovers And Increased Performance
- All ICON Shock Absorbers Are Fully Rebuildable And Re-Tunable
- 100 Percent Bolt-On System: No Drilling, Cutting, Or Welding Necessary For Install
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53196T
- Lift Height: 2 To 3-1/2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 25
- Color: Silver
- Material: Aluminum
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2022-2025 Toyota Tundra
