Enhance your Toyota Tundra's performance with advanced suspension technology.

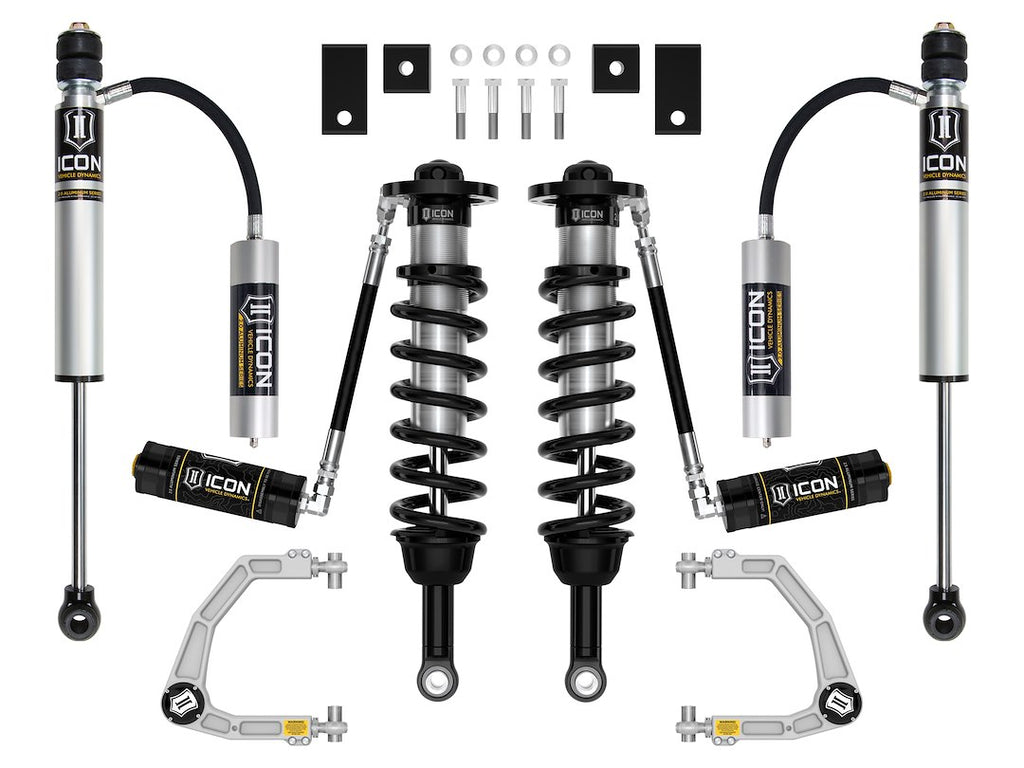

The Icon Vehicle Dynamics Stage 5 complete suspension system is designed specifically for the 2022 to 2023 Toyota Tundra, offering a comprehensive upgrade to your vehicle's suspension capabilities. This system features remote reservoir rear shocks that enhance on- and off-road performance by improving heat dissipation and alignment specifications. With an adjustable lift height ranging from 1-1/4 to 3-1/2 inches, this kit allows for the installation of larger tires up to 35 inches, ensuring a proper stance and fitment.
Included in the Stage 5 system are 2.5 Series internal reservoir front coilover shocks and billet aluminum front upper control arms, which provide increased strength and durability. The adjustable coilovers allow for precise tuning of ride height, while the patented Delta Joint Pro in the upper control arms offers superior articulation. The sway bar drop brackets included in the kit help reduce binding in the original equipment sway bar links, further enhancing vehicle handling.
This fully bolt-on system requires no drilling, cutting, or welding for installation, making it accessible for a wide range of users. All components are designed to work together seamlessly, providing a balanced performance that maximizes travel and ride quality. With a 40 percent increase in front wheel travel over stock, the Icon Vehicle Dynamics Stage 5 suspension system is engineered for those seeking to elevate their driving experience.
Features
- 2.5 Series Front Coilovers With Remote Reservoirs For Superior Damping And Vehicle Control Along With Improved Shock Cooling
- Adjustable Front Ride Heights From 1-1/4 To 3-1/2 Inch Of Front Lift Over Stock When Used With Provided Billet Aluminum UCAs
- Billet Aluminum UCAs For Added Strength, Durability, And On-Vehicle Caster Or Camber Adjustment For Optimum Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degrees Of Total Articulation
- Provided Sway Bar Drop Brackets Reduce Bind In OE Sway Bar Links
- Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- 2.0 Aluminum Series Rear Remote Reservoir Shocks Provide Balanced Tune With Coilovers And Increased Performance
- All ICON Shock Absorbers Are Fully Rebuildable And Re-Tunable
- 100 Percent Bolt-On System: No Drilling, Cutting, Or Welding Necessary For Install
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53196
- Lift Height: 1-1/4 To 3-1/2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 25
- Color: Silver
- Material: Aluminum
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2022-2025 Toyota Tundra
