Enhance your vehicle's performance with adjustable lift and superior components.

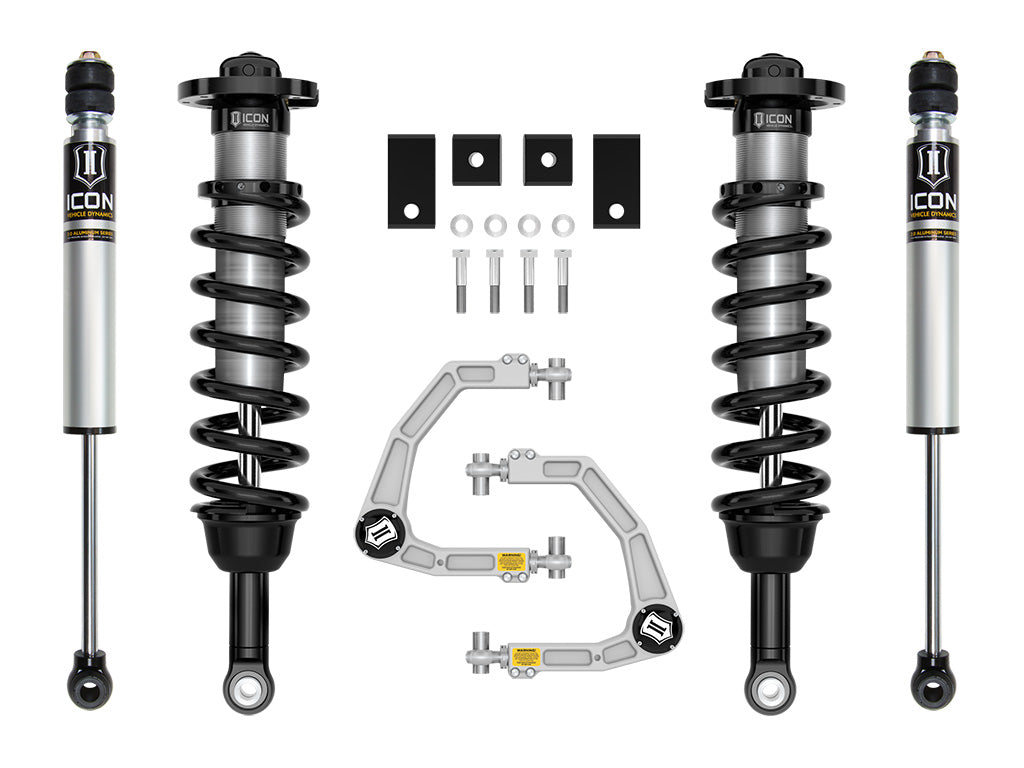

The Icon Vehicle Dynamics Stage 4 complete suspension system is engineered to provide significant improvements in both on-road and off-road performance. This system features the advanced ICON threaded-body V.S. 2.5 Series Coilovers, which include adjustable lift heights ranging from 1-1/4 to 3-1/2 inches over stock. The addition of adjustable billet aluminum front upper control arms enhances alignment specifications and allows for the fitment of larger tires up to 35 inches, ensuring a proper stance and improved handling.
This suspension kit includes a sway bar drop kit to minimize link bind and enhance suspension travel. The rear is complemented by 2.0 nitrogen charged monotube shocks with internal reservoirs, designed to work in harmony with the front coilovers for balanced performance. The larger shock body and increased piston area provide up to a 40 percent increase in wheel travel compared to stock components, resulting in superior ride quality and handling.
The ICON billet aluminum upper control arms are designed for strength and durability, featuring the patented Delta Joint PRO for enhanced articulation. This system is fully bolt-on, requiring no drilling or cutting for installation, making it accessible for a wide range of users. With all components being rebuildable and re-tunable, this suspension system is built for longevity and adaptability.
Features
- 2.5 Series Front Coilovers With Internal Reservoirs For Superior Damping And Vehicle Control
- Adjustable Front Ride Heights From 1-1/4 To 3-1/2 Inch Of Front Lift Over Stock When Used With Provided Billet UCAs
- Billet Aluminum UCAs For Added Strength, Durability And On-Vehicle Caster Or Camber Adjustment For Optimum Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degree Of Total Articulation
- Sway Bar Drop Brackets Reduce Bind In OE Sway Bar Links
- Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- 2.0 Aluminum Series Rear Shocks Provide Balanced Tune With Coilovers And Increased Performance
- All Icon Shock Absorbers Are Fully Rebuildable And Re-Tunable
- 100 Percent Bolt-On System: No Drilling, Cutting Or Welding Necessary For Install
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53194
- Lift Height: 1-1/4 To 3-1/2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 25
- Color: Black Components/ Silver Shocks
- Material: Aluminum
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2022-2025 Toyota Tundra
