Enhance your vehicle's performance with a complete suspension system.

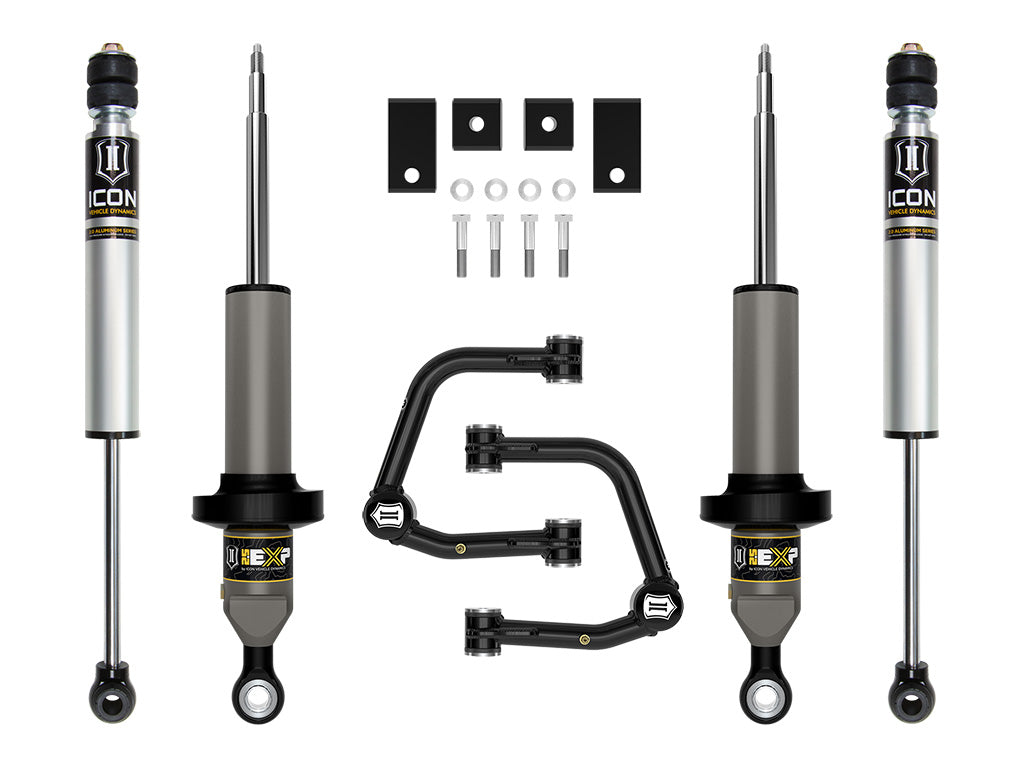

The Icon Vehicle Dynamics Stage 2 complete suspension system is engineered to elevate your vehicle's performance and stance. This system builds upon the 2.5 EXP Shock Kit, incorporating tubular front upper control arms that ensure proper alignment at increased ride heights. Designed for vehicles accommodating up to 35 inch tires, this kit enhances both on-road and off-road capabilities while providing a balanced lift of 2 to 3 inches.
Featuring advanced 2.5 EXP series coilover shocks, the system utilizes factory coil springs for cost-effective performance without compromising quality. The innovative design bridges the gap between spacer lifts and threaded bodied coilovers, delivering custom-tuned performance and maximum travel. The included tubular upper control arms improve front-end geometry and suspension component clearance, while the serviceable ICON Delta Joint PRO ball joint allows for full suspension travel without bind.
The sway bar drop brackets included in the kit minimize link bind, facilitating smooth suspension movement and maximizing wheel travel. Additionally, the V.S. 2.0 Aluminum Series rear shocks are tailored to complement the front coilovers, providing a balanced tuning for enhanced performance. This fully bolt-on system requires no drilling, cutting, or welding, making installation straightforward and efficient.
Features
- 2.5 EXP Series Front Shocks With Internal Reservoirs Utilize Factory Coil And Coil Hardware
- Adjustable Front Ride Heights From 2 To 3 Inch Of Front Lift Over Stock With The Use Of Snap Ring And Provided Tubular UCAs
- Tubular UCAs For Added Strength, Durability And Alignment Correction For Better Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degree Of Total Articulation
- Sway Bar Drop Brackets Reduce Bind In OE Sway Bar Links
- Allows For Full Wheel Travel Without Overstressing OE Components
- 2.0 Aluminum Series Rear Shocks Provide Balanced Tune With Coilovers And Increased Performance
- All Icon Shock Absorbers Are Fully Rebuildable And Re-Tunable
- 100 Percent Bolt-On System: No Drilling, Cutting Or Welding Necessary For Install
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53192T
- Lift Height: 2 To 3 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 25
- Color: Black Components/ Silver Shocks
- Material: Aluminum
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2022-2025 Toyota Tundra
