Enhance your vehicle's performance with adjustable lift and control arms.
The Icon Vehicle Dynamics Stage 2 complete suspension system is engineered to provide a lift of 0 to 3 inches, enhancing both on-road and off-road performance. This system incorporates the advanced 2.5 EXP series coilover shocks, which utilize the factory coil spring for improved ride quality and performance. The addition of billet front upper control arms ensures proper alignment and allows for fitment of larger tires up to 35 inches, optimizing the vehicle's stance and handling characteristics.
This suspension kit features a fully bolt-on design, eliminating the need for drilling or cutting during installation. The included sway bar drop brackets minimize bind in the OE sway bar links, allowing for full wheel travel without overstressing factory components. The 2.0 aluminum series rear shocks complement the front coilovers, providing balanced vehicle control and enhancing overall driving experience.
The innovative Delta Joint PRO in the upper control arms offers 90 degrees of articulation, improving suspension travel and performance. With all components being fully rebuildable and re-tunable, this suspension system is designed for durability and long-term use. The Icon Vehicle Dynamics Leveling Kit is a comprehensive solution for those seeking to enhance their vehicle's capabilities.
Features

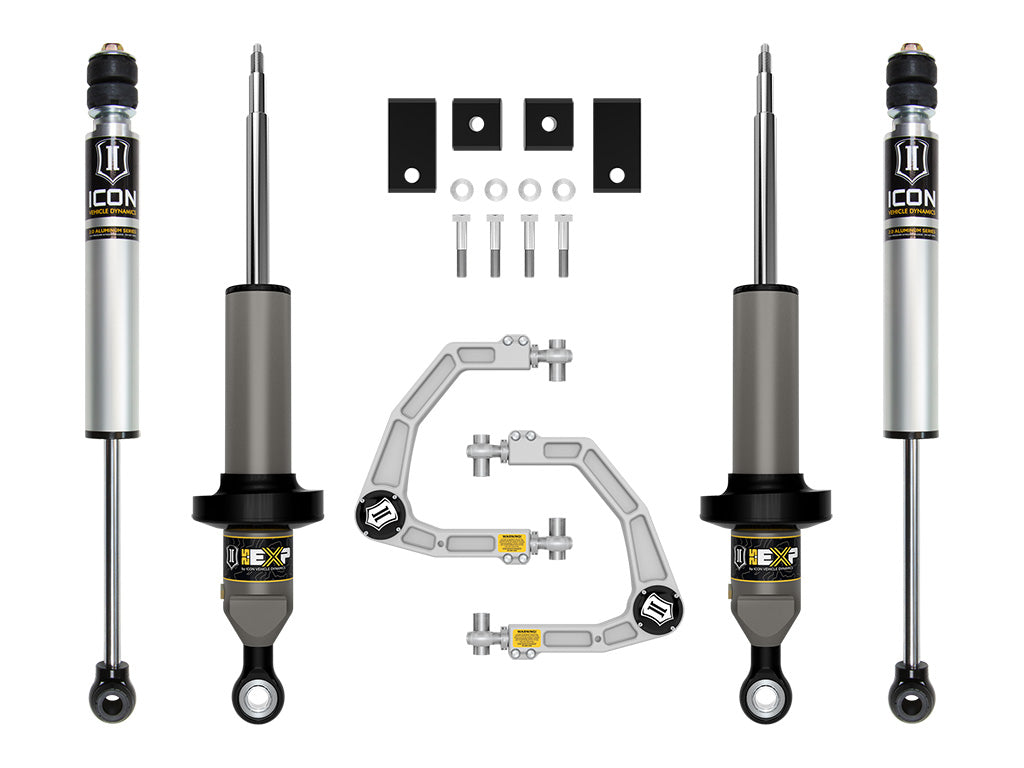

- 2.5 EXP Series Front Shocks With Internal Reservoirs Utilize Factory Coil And Coil Hardware
- Adjustable Front Ride Heights From 0 To 3 Inch Of Front Lift Over Stock With The Use Of Snap Ring And Provided Billet UCAs
- Billet Aluminum UCAs For Added Strength, Durability And On-Vehicle Caster Or Camber Adjustment For Optimum Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degree Of Total Articulation
- Sway Bar Drop Brackets Reduce Bind In OE Sway Bar Links
- Allows For Full Wheel Travel Without Overstressing OE Components
- 2.0 Aluminum Series Rear Shocks Provide Balanced Tune With Coilovers And Increased Performance
- All Icon Shock Absorbers Are Fully Rebuildable And Re-Tunable
- 100 Percent Bolt-On System: No Drilling, Cutting Or Welding Necessary For Install
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: K53192
- Lift Height: 0 To 3 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 25
- Color: Black Components/ Silver Shocks
- Material: Aluminum
- Estimated Install Time (Hours): 2
Compatibility / Fit
- 2022-2025 Toyota Tundra
