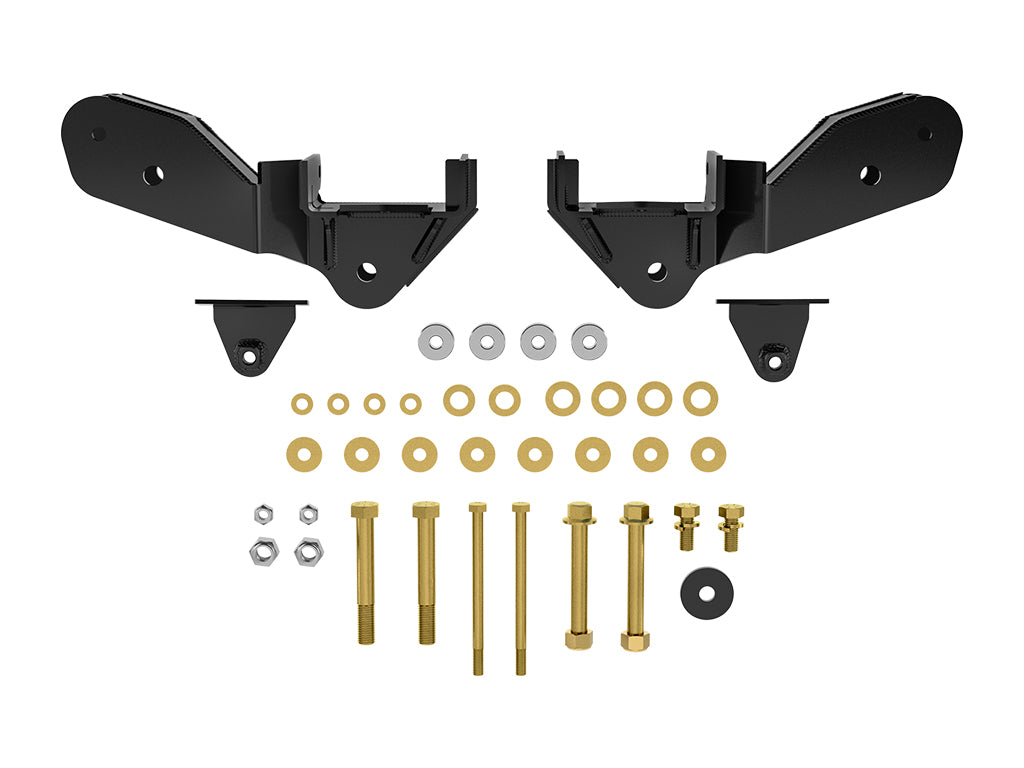

Icon Vehicle Dynamics Four Link Suspension Bracket (MPN: 64053)

Enhance your truck's handling and articulation with this robust suspension solution.

The Icon Vehicle Dynamics Four Link Suspension Bracket is a critical component designed for the 4-Link Conversion System, specifically compatible with 2023-2024 Ford F-250/F-350 Super Duty 4WD models. This system significantly improves front suspension articulation by eliminating bushing bind, which in turn enhances overall handling and maintains consistent caster angles throughout the suspension travel range.

Constructed from CNC laser cut and brake-formed steel plate, these brackets feature a corrosion-resistant semi-gloss black powder coat finish, ensuring durability and longevity under various driving conditions. The design allows for on-vehicle caster adjustment through ICON double adjusters in the lower links, simplifying the front-end alignment process.

This 100 percent bolt-on system requires no cutting or welding for installation, making it accessible for a range of users. The 4-link brackets are sold separately from the upper and lower links, allowing for customization based on specific vehicle requirements.

Features

• 4-Link System Maintains Consistent Caster Angles Through Suspension Travel For Superior Handling Characteristics
• Improves Front End Articulation And Overall Drivability
• Allows On-Vehicle Caster Adjustment Via ICON Double Adjusters In Lower Links
• Brackets Are Fabricated From CNC Laser Cut And Brake-Formed Steel Plate
• Corrosion Resistant Semi-Gloss Black Powder Coat Finish
• 100 Percent Bolt-On System - No Cutting Or Welding Necessary For Install

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 64053
• Compatibility: 2023-2024 Ford F-250/F-350 Super Duty 4WD 4-Link Frame
• Type: Frame
• Color: Black
• Material: Steel
• Quantity: Set Of 2

Compatibility / Fit

• 2023-2026 Ford F-250 Super Duty
• 2023-2026 Ford F-350 Super Duty

Technical Documents

• ICON_Warranty_2023_1730.pdf
