Icon Vehicle Dynamics Compression Wheel (MPN: 2017857345SB)

Enhance your vehicle's performance and style with advanced engineering.

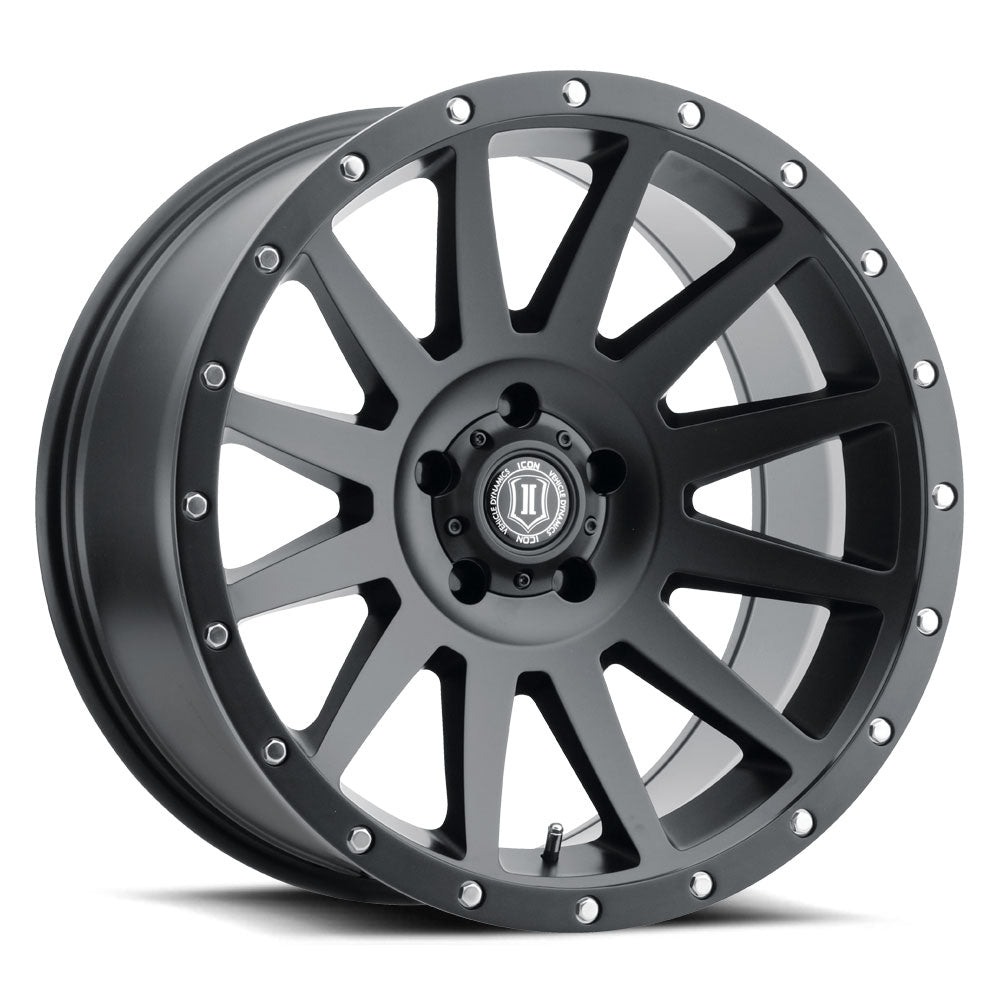

The Icon Vehicle Dynamics Compression Wheel is designed to elevate both the aesthetics and functionality of your Jeep, truck, or SUV. With a diameter of 17 inches and a width of 8.5 inches, this wheel features a 12 spoke design that combines a sleek satin black finish with robust one-piece cast aluminum construction. Engineered for optimal caliper clearance, the Compression Wheel ensures unimpeded suspension travel and steering function, making it a practical choice for off-road enthusiasts.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and boasts a load capacity of 2750 pounds, making it suitable for various driving conditions. The -6 millimeter offset and 4.50 inch backspacing have been meticulously calculated to reduce scrub radius, enhancing overall handling and ride quality. Additionally, the aluminum alloy construction provides strength and durability, ensuring reliable performance in demanding environments.

The Compression Wheel also features an Icon Vehicle Dynamics logo center cap, adding a touch of branding to its functional design. With a maximum tire diameter of 40 inches, this wheel is tailored to optimize vehicle dynamics and tire clearance, making it an excellent addition to any vehicle equipped with an Icon Vehicle Dynamics suspension system.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Icon Vehicle Dynamics Logo Center Cap
• Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
• Reduced Unsprung Weight And Rotating Mass Improves On And Off-Road Vehicle Performance
• Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 2017857345SB
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: -6
• Backspacing: 4.50
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 12 Spoke
• With Inserts: No
• Load Capacity: 2750
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Icon Vehicle Dynamics Logo
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1970-1974 Chrysler Imperial
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
