Enhance off-road performance with adjustable valving and increased stability.

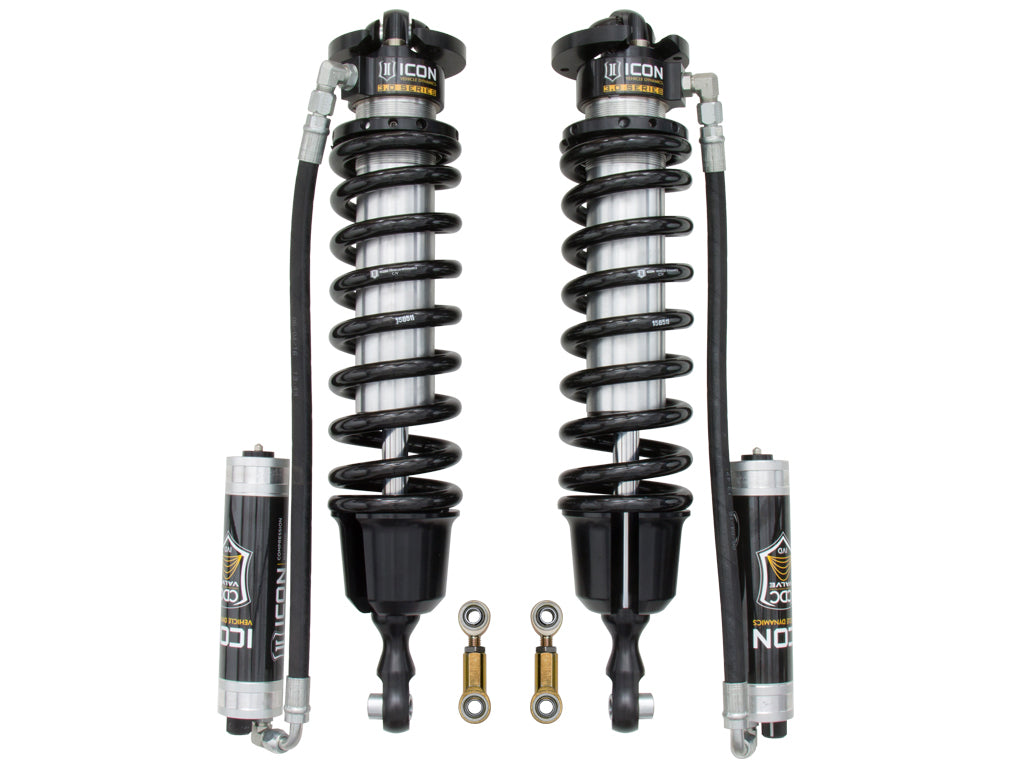

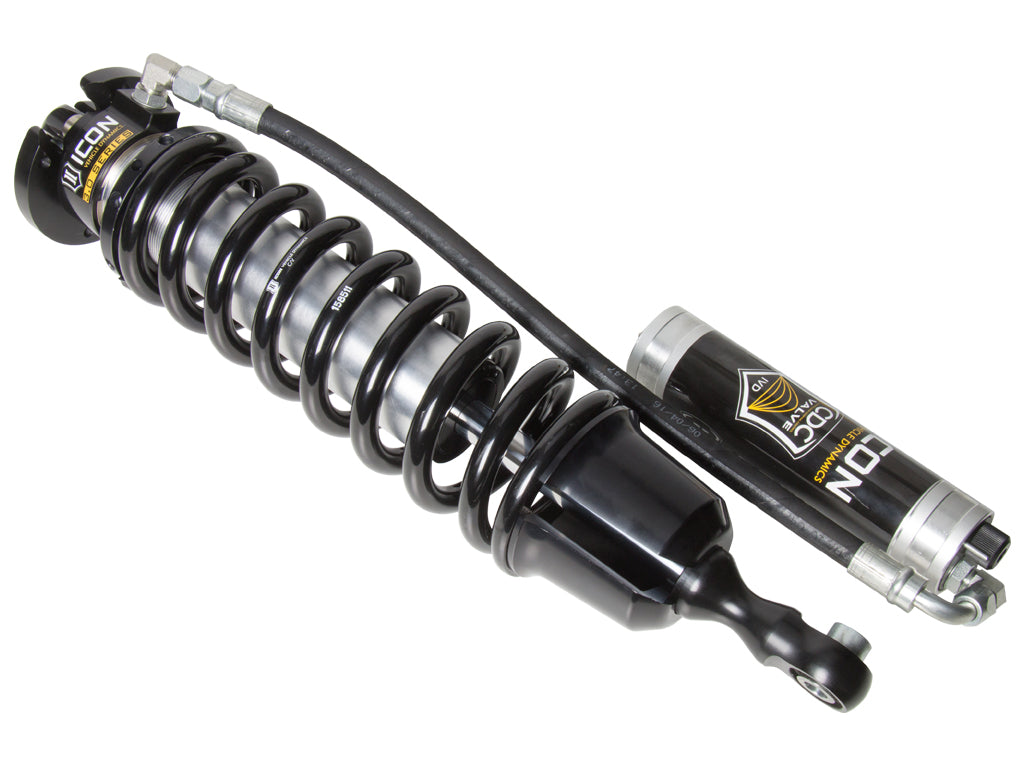

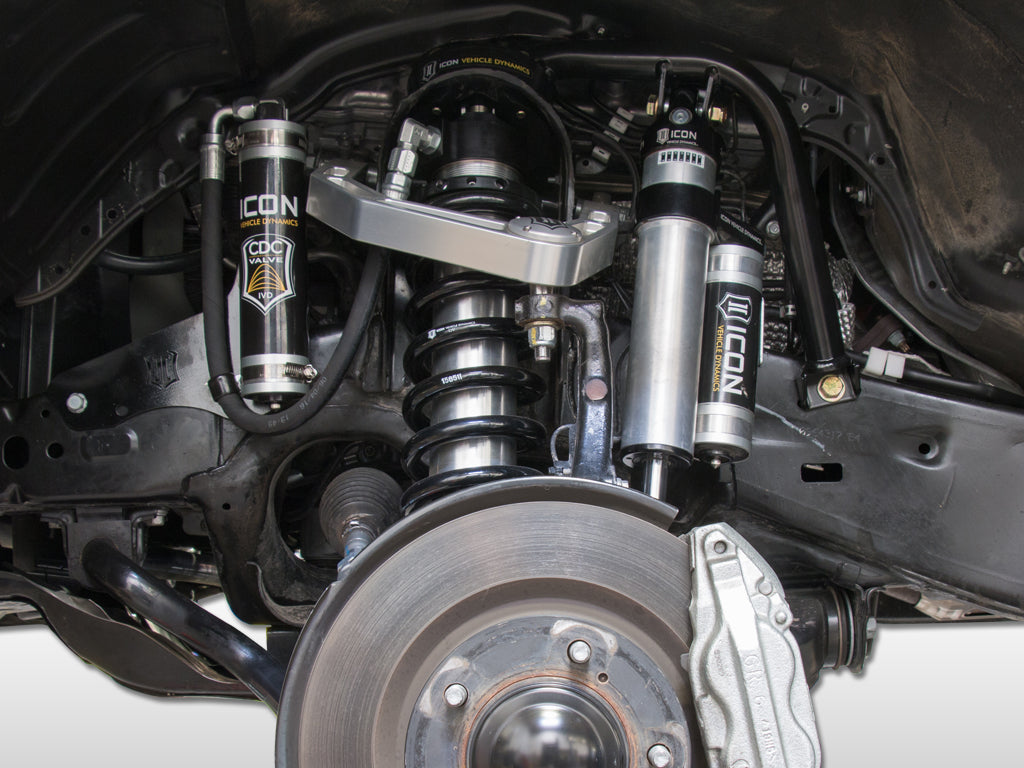

The Icon Vehicle Dynamics 2007-UP Toyota Tundra 3.0 Series Coilover Kit is engineered to elevate the off-road capabilities of the Toyota Tundra. This kit features a significant increase in damping ability, providing enhanced performance in extreme off-road conditions. With a 50 percent increase in piston surface area in the ride zone and a 100 percent increase in the bump zone, these coilovers ensure improved stability and vehicle control during challenging terrains and on-road driving alike.
Designed for adjustable lift, the coilovers allow for a front lift height ranging from 1.63 to 3.5 inches, accommodating various driving preferences and conditions. The multi-stage hydraulic bump zone is a key feature, exponentially increasing bottom-out resistance during the last 40 percent of compression travel, which is crucial for maintaining vehicle dynamics when encountering hard hits or unexpected obstacles.
Constructed with high-quality materials, the kit includes 10-inch aluminum reservoirs that provide ample oil and nitrogen volume for consistent damping performance, even with temperature fluctuations. The use of ICON-engineered Eibach springs, PTFE lined COM12 spherical bearings, and heavy-duty CNC machined shock shafts further enhances the durability and performance of this coilover system.
Features
- Significant Increase In Damping Ability For Excellent Performance In Extreme Off-Road Conditions
- Increased Wheel Travel And Vehicle Specific Valving Provides Comfortable And Consistent Ride Quality On And Off-Road
- Adjustable Coilovers Provide 1.63 To 3.5 Inch Of Front Lift Height
- ICON’s Multi-Stage, Tuneable Hydraulic “Bump Zone” Exponentially Increases Bottom-Out Resistance In The Last 40 Percentage Of Compression Travel
- 10 Inch Aluminum Reservoirs Provide Generous Oil And Nitrogen Volume For Consistent Damping With Temperature Increase
- High Quality ICON-Engineered Eibach Springs Offer Increased Travel And Performance
- PTFE Lined COM12 Spherical Bearings Ensure Maximum Strength And Durability
- Heavy Duty 1 Inch CNC Machined Shock Shafts
- Multi Stage CAD Plated Shock Body With Hard Anodized Piston And Top Cap
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 58755
- Adjustable: Yes
- Upper Mounting Type: Eyelet
- Lower Mounting type: Strut
- Front/Rear Drop (IN): 0 To 3 Inch Lift
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Quantity: Set Of 2
- Valving Type: Application Specific Valving
- Shock Type: Gas Charged
- Shock Body Color: Black/ Gray
- Shock Body Material: Aluminum
- Spring Style: Pigtail
- Spring Color: Black
- Includes Mounting Hardware: Yes
Compatibility / Fit
- 2007-2019 Toyota Tundra
