Advanced electronic adjustable shocks for enhanced performance and control.

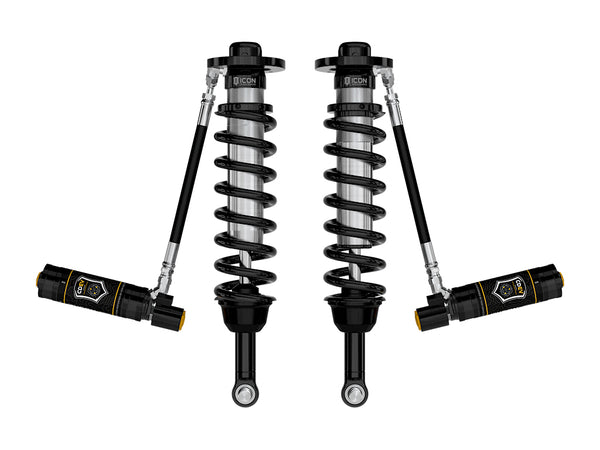

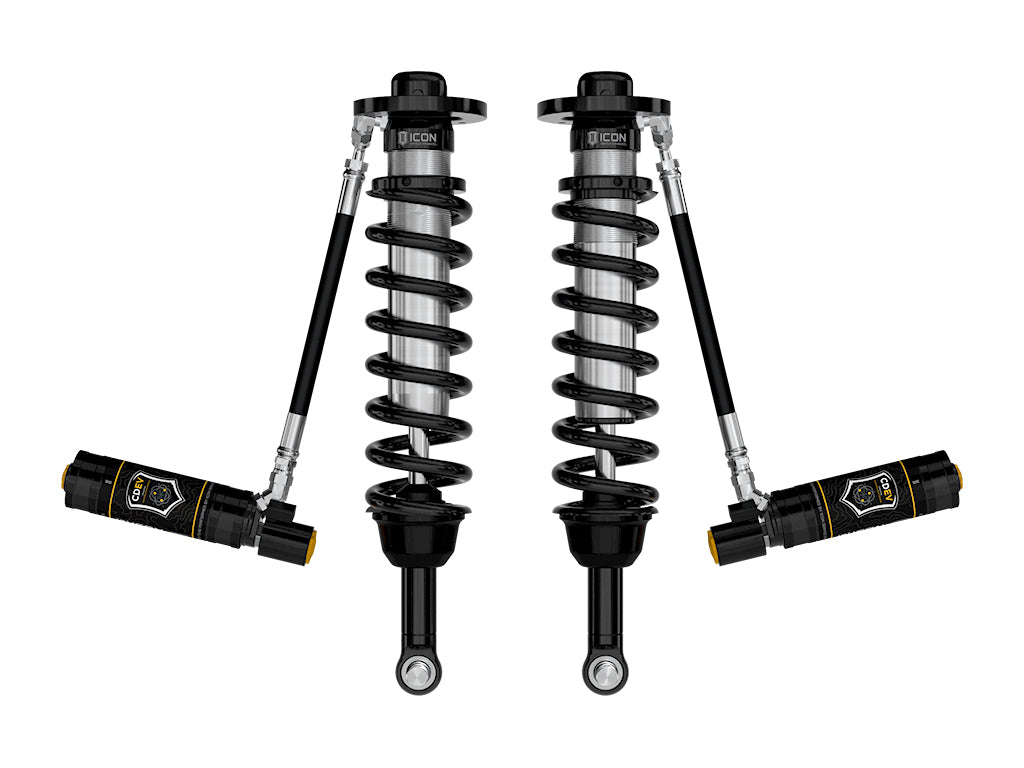

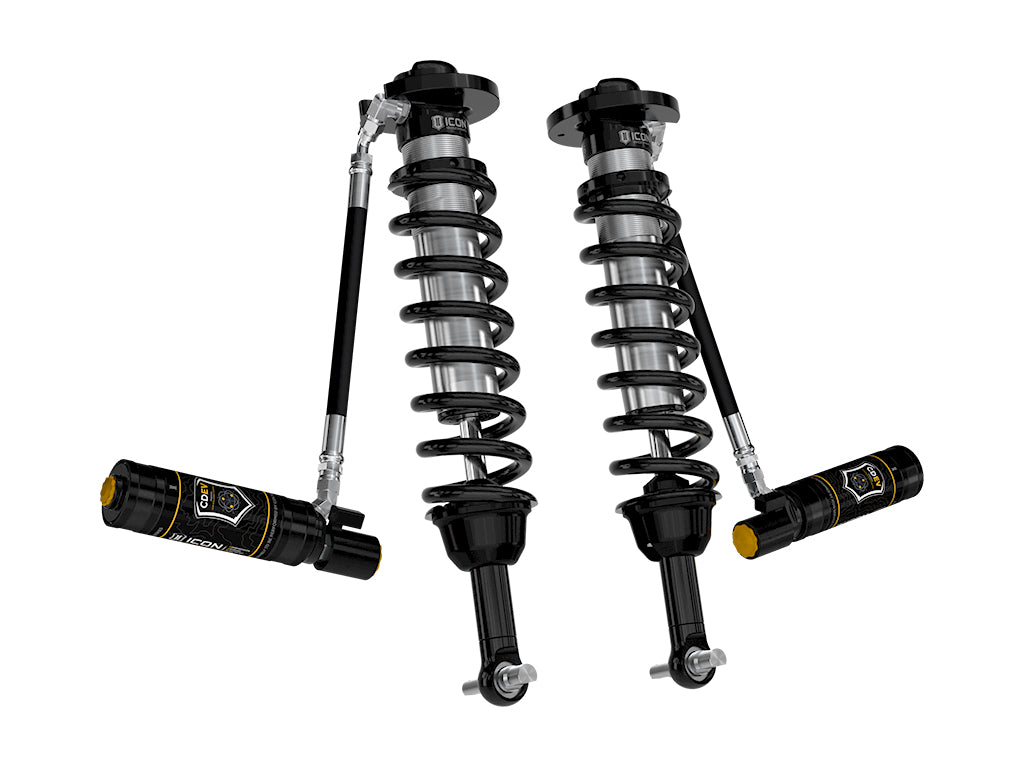

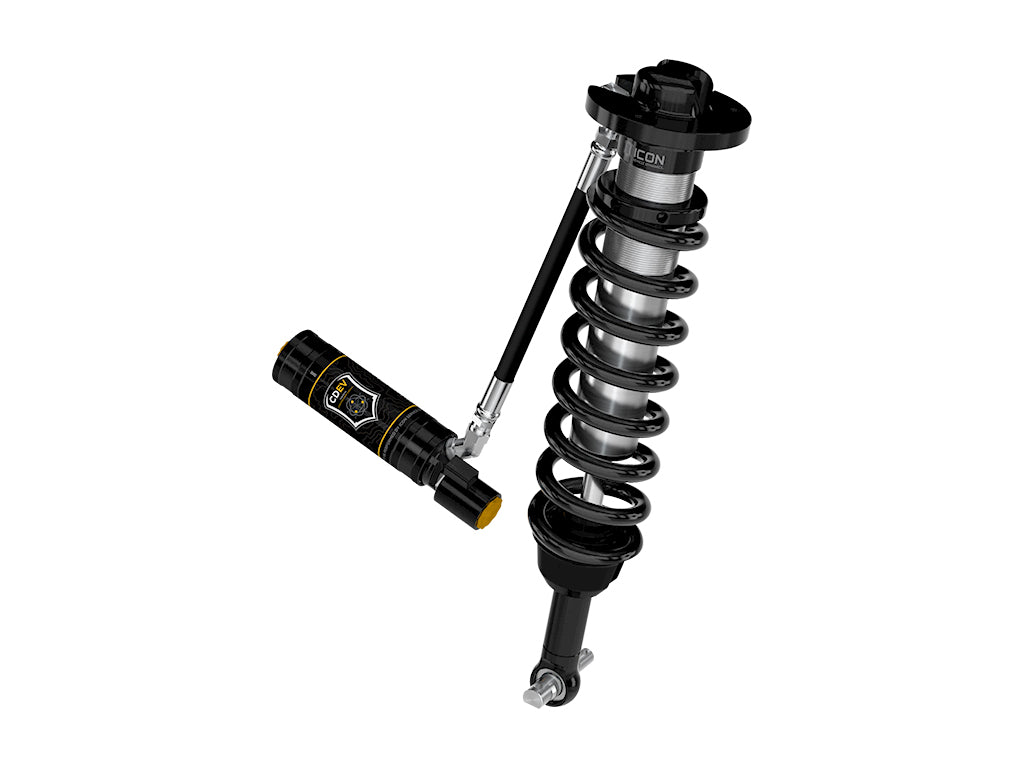

The ICON Vehicle Dynamics V.S. Series 2-1/2 Inch coilover shocks are engineered for the 2021 to 2023 Ford F-150 4WD trucks, providing a significant enhancement to the vehicle's suspension system. With a lift height adjustability ranging from 2-3/4 to 3-1/2 inches, these shocks accommodate larger wheel and tire combinations while maintaining optimal ride quality. The 2-1/2 inch shock body and increased piston area deliver superior damping capabilities, ensuring a smooth ride across diverse terrains.
Equipped with remote reservoirs, these shocks maintain consistent damping performance and cooler operating temperatures during extended off-road use. The ICON CDE Valve upgrade allows for electronic adjustment of the ride characteristics from within the vehicle, utilizing a Compression Damping Electronic Valve (CDEV) that reacts in less than 40 milliseconds. This system is tailored to each vehicle application, providing precise adjustments for varying terrain conditions.
The ICON Intelligent Control system, paired with a proprietary mobile app, leverages data from onboard sensors to optimize shock settings dynamically. This integration ensures balanced vehicle control when paired with ICON rear 2.5 Aluminum Series CDEV shocks, enhancing the overall driving experience for F-150 owners.
Features
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Increased Wheel Travel And Ride Quality Over Stock
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- Vehicle Specific Tuned For Superior Shock Damping And Control
- Remote Reservoir To Attain Cooler Operating Temperatures During Extended Off-Road Use
- ICON CDCV Equipped For 10 Settings Of External Compression Damping Adjustment
- Corrosion Resistant CAD Plated Shock Bodies With 7/8 Inch Diameter Shaft
- High Strength Alloy CNC Machined Lower Bar Pin
- 100 Percent Bolt-On: No Drilling, Cutting Or Welding Necessary For Installation
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 91825E
- Adjustable: Yes
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 2-3/4 To 3-1/2 Inch Lift
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Quantity: Set Of 2
- Valving Type: Electronic Adjustable Valving
- Shock Type: Gas Charged
- Shock Body Color: Black/ Gray
- Shock Body Material: Aluminum
- Spring Style: Pigtail Spring
- Spring Color: Black
- Spring Material: Steel
- Includes Mounting Hardware: No
Compatibility / Fit
- 2021-2023 Ford F-150
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
