Enhance your Ford Ranger's performance with adjustable lift and superior ride quality.

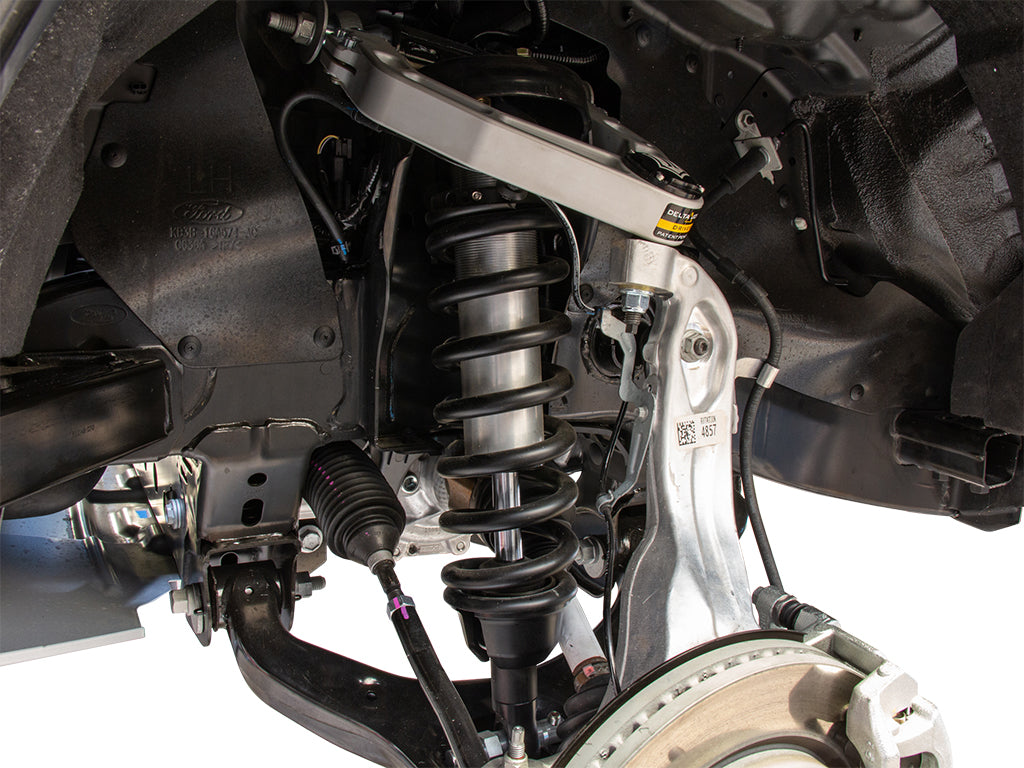

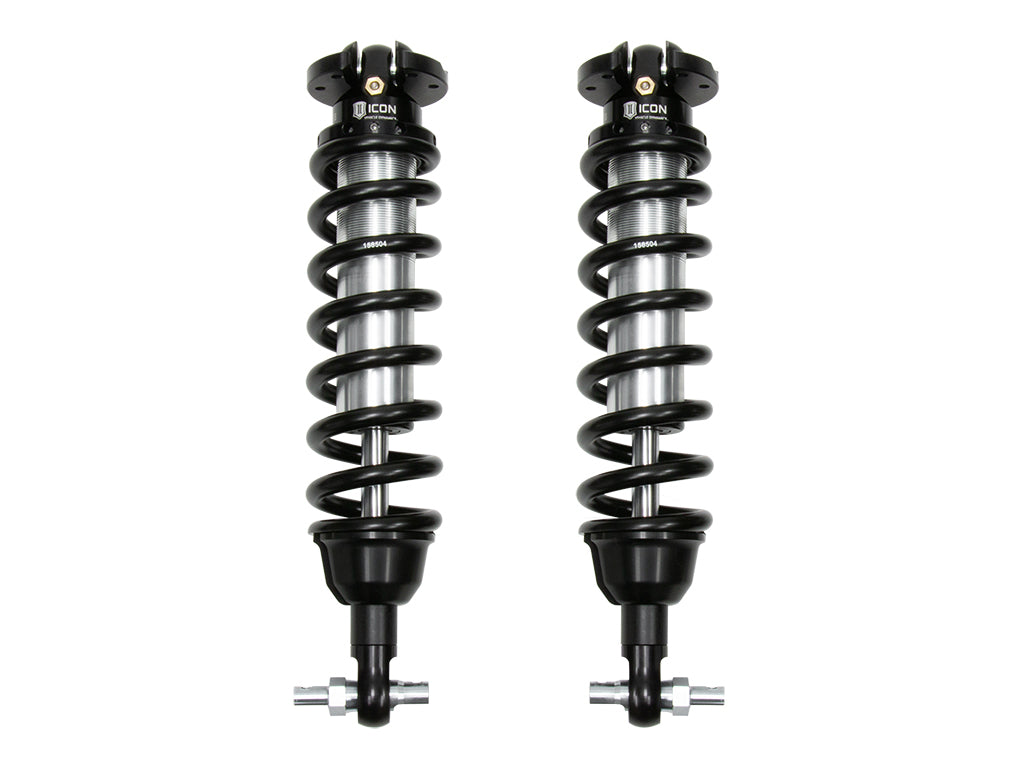

The ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are designed specifically for the 2019 to 2023 Ford Ranger, providing a significant enhancement to the vehicle's suspension system. These coilovers offer an adjustable lift height ranging from 0 to 3-1/2 inches, accommodating larger wheel and tire combinations for improved off-road capability. The vehicle-specific valving ensures optimal ride quality, making these shocks suitable for a variety of driving conditions, both on and off the road.
Constructed with a larger 2-1/2 inch shock body and increased piston area, these coilovers deliver superior performance compared to stock components. The extended travel length necessitates the use of ICON front upper control arms, which further increases front wheel travel and enhances overall suspension performance. This design not only improves low-speed control, reducing body roll, but also increases on-road stability for a balanced driving experience.
The high-quality ICON-engineered coil springs are guaranteed for life against sagging or breakage, ensuring long-lasting reliability. The corrosion-resistant CAD plated shock body and 7/8 inch diameter shaft contribute to the durability of the product. Additionally, the fully serviceable design allows for revalves and rebuilds, extending the service life of the shocks. With a bolt-in design, installation is straightforward, making it easy to upgrade your Ford Ranger's suspension system.
Features
- Adjustable Coilovers Yield 0-3-1/2 Inch Of Front Lift Height
- Vehicle Specific Valving Provides Unrivaled Ride Quality Across A Wide Range Of On And Off-Road Use
- Extended Travel Length Requires ICON Upper Control Arms But Offers More Wheel Travel And Improved Performance
- Superior Low Speed Control Reduces Body Roll And Increases On-Road Stability
- High Quality ICON-Engineered Coil Springs Are Guaranteed For Life Against Sagging Or Breakage
- Corrosion Resistant CAD Plated Shock Body With 7/8 Inch Diameter Shaft
- Fully Serviceable Design Allows For Revalves, Rebuilds, And An Immeasurable Service Life
- Bolt-In Design Makes For An Easy Install Into OEM Shock Location
Specifications
- Manufacturer: Icon Vehicle Dynamics
- Manufacturer Part Number: 91255
- Adjustable: No
- Upper Mounting Type: Eyelet
- Lower Mounting type: Strut
- Front/Rear Drop (IN): 0 To 3-1/2 Inch Lift
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Quantity: Set Of 2
- Valving Type: Non Adjustable Valving
- Shock Type: Gas Charged
- Shock Body Color: Black/ Gray
- Shock Body Material: Aluminum
- Spring Style: Pigtail
- Spring Color: Black
- Includes Mounting Hardware: Yes
Compatibility / Fit
- 2019-2023 Ford Ranger
