Icon Vehicle Dynamics Alpha Series Wheel (MPN: 1220908955SBMW)

Enhance your vehicle's performance with precision-engineered wheels.

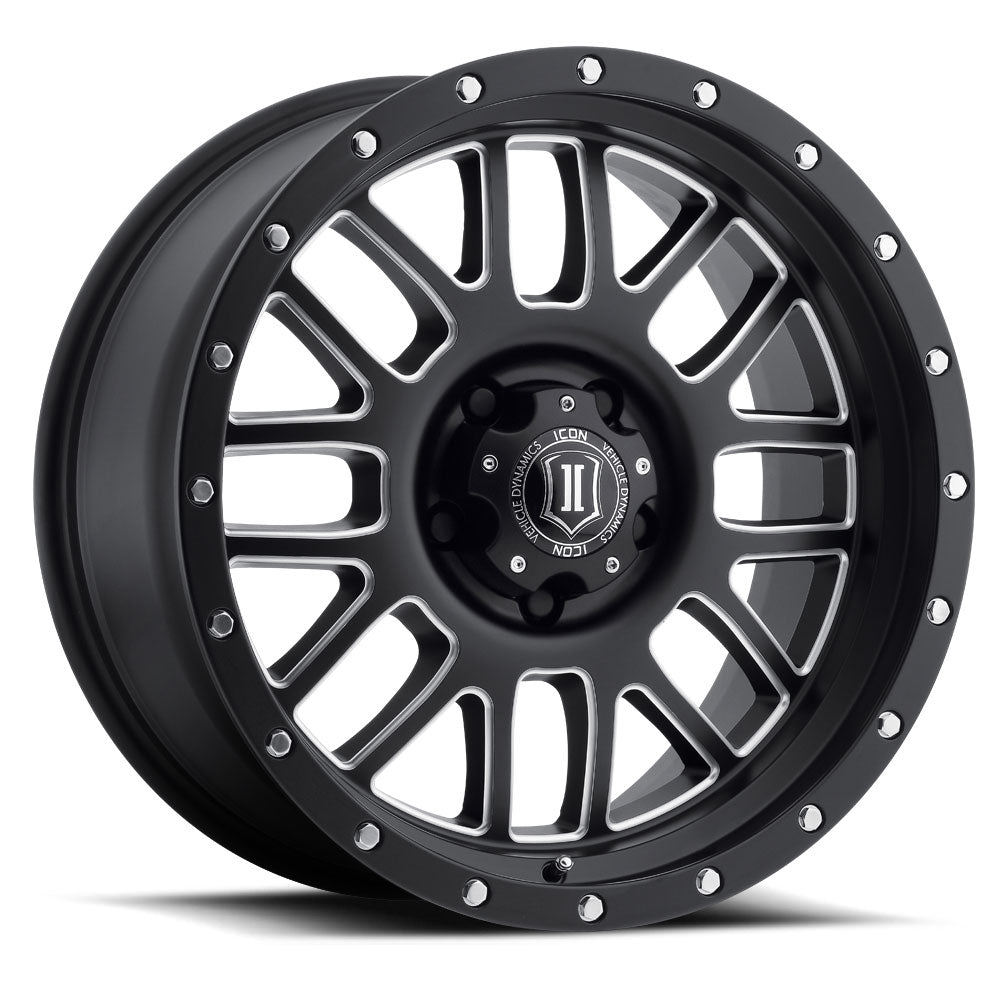

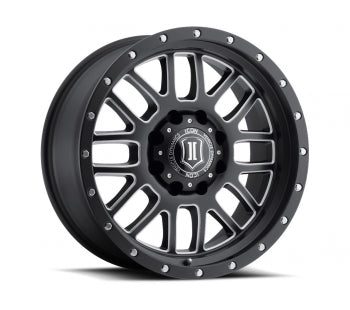

The Icon Vehicle Dynamics Alpha Series Wheel is designed for those seeking a balance of aesthetics and functionality in their Jeep, truck, or SUV. With a diameter of 20 inches and a width of 9 inches, this wheel features an 8 x 180 millimeter bolt pattern and a 12 millimeter offset, ensuring compatibility with a wide range of vehicles. The satin black finish with milled windows not only enhances visual appeal but also provides durability against off-road conditions.

Constructed from a single piece of cast aluminum, the Alpha Series Wheel offers a robust load capacity of 3700 pounds, making it suitable for both on-road and off-road applications. The design optimizes caliper clearance and wheel positioning, which contributes to improved suspension travel and steering function. Additionally, the reduced unsprung weight and rotating mass enhance overall vehicle performance, making these wheels a valuable addition to any suspension system.

This wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and features a center bore of 125.20 millimeters. The 60 degree conical seat lug nut design ensures a secure fit, while the 8 split spoke configuration adds a modern touch to your vehicle's appearance. With a maximum tire diameter of 40 inches, the Alpha Series Wheel is engineered to provide optimal tire clearance and vehicle dynamics.

Features

• Satin Black With Milled Window Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Icon Vehicle Dynamics Logo Center Cap
• Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
• Reduced Unsprung Weight And Rotating Mass Improves On And Off-Road Vehicle Performance
• Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 1220908955SBMW
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 9
• Offset: 12
• Backspacing: 5.50
• Finish: Satin With Milled Window
• Color: Black With Natural Window
• Material: Aluminum
• Bolt Pattern Inch: 8x7.08
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 8x180
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 125.20
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 3700
• Size: 20x9
• Max Tire Diameter: 40
• Center Cap Design: Icon Vehicle Dynamics Logo
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2011-2026 Chevrolet Silverado 2500 HD
• 2011-2026 Chevrolet Silverado 3500 HD
• 2016-2019 Chevrolet Suburban 3500 HD
• 2012-2026 GMC Sierra 2500 HD
• 2011-2014 GMC Sierra 3500 HD
• 2016-2026 GMC Sierra 3500 HD
