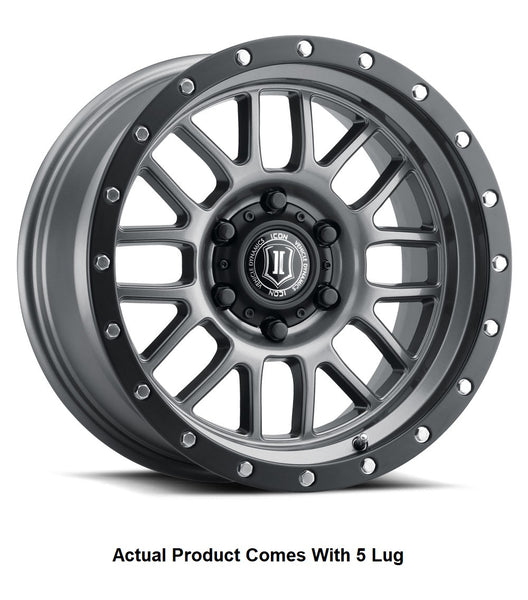

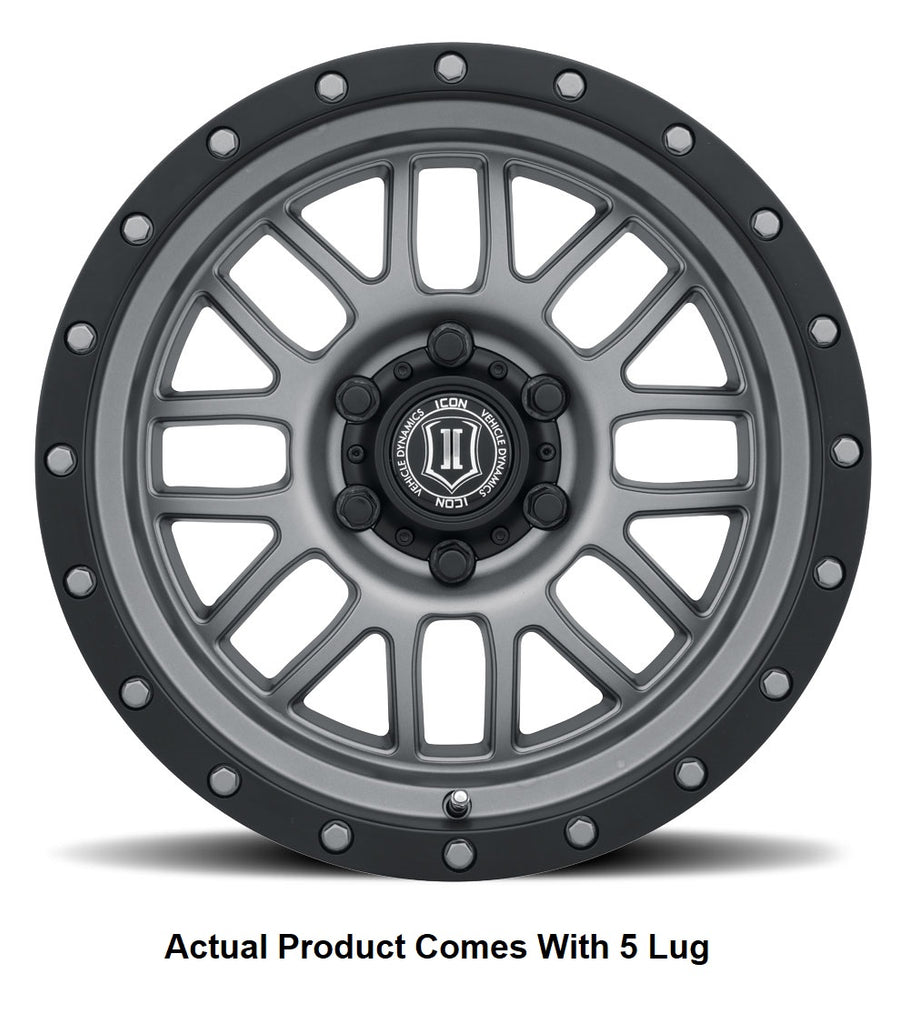

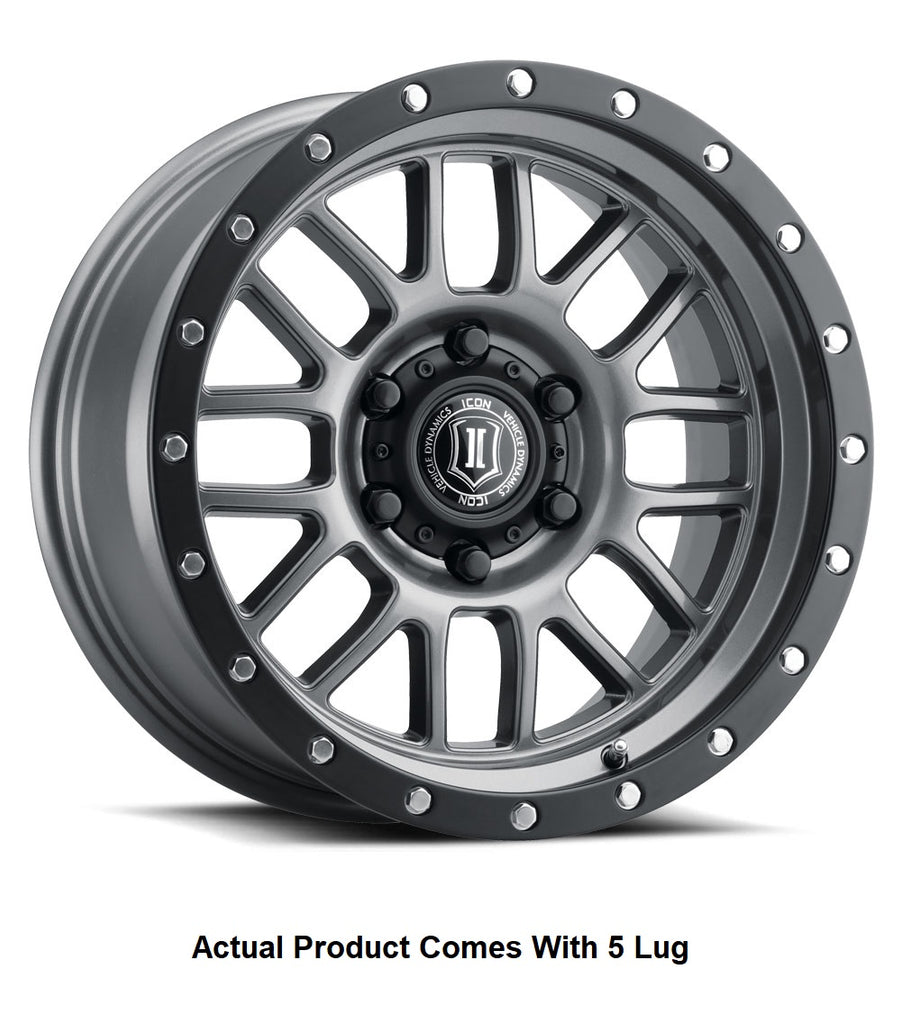

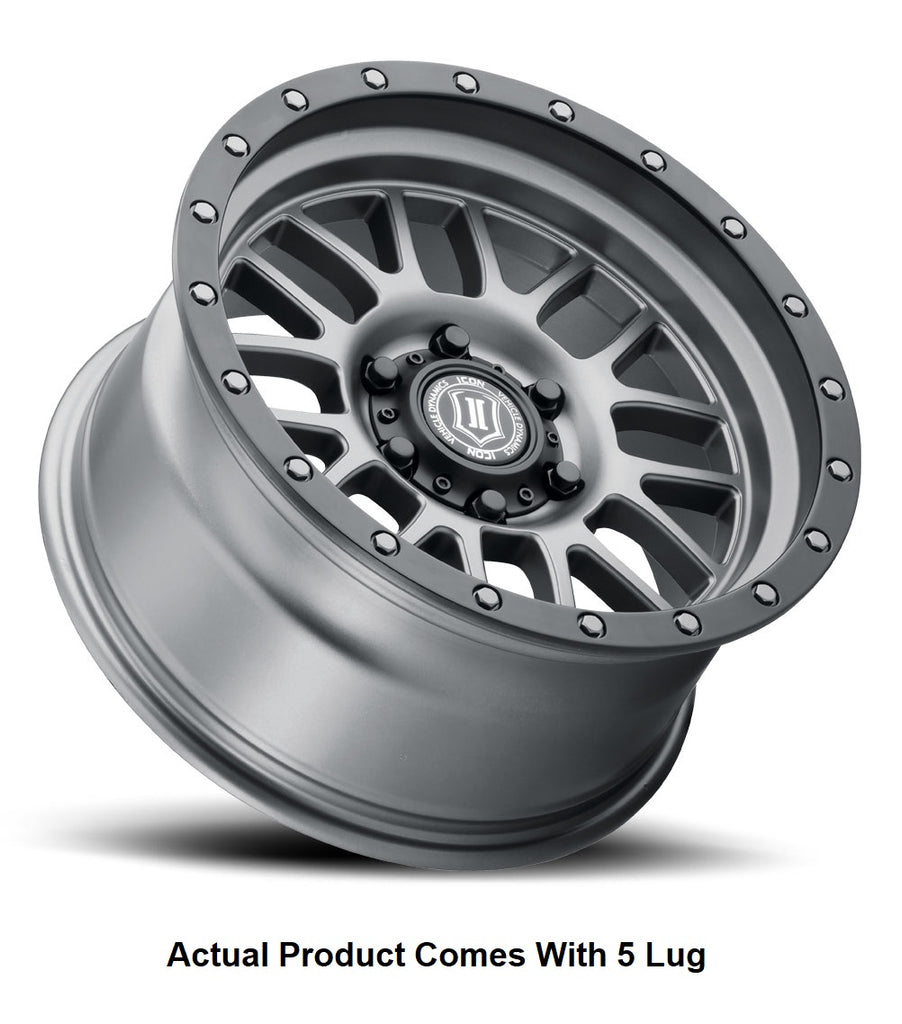

Icon Vehicle Dynamics Alpha Series Wheel (MPN: 1217857347TT)

Enhance your vehicle's performance with advanced engineering and design.

The Icon Vehicle Dynamics Alpha Series Wheel is designed to provide a robust solution for off-road enthusiasts and daily drivers alike. With a diameter of 17 inches and a width of 8.5 inches, this wheel features a 5 x 127 millimeter bolt pattern and a 60 degree conical seat lug, ensuring compatibility with a wide range of vehicles. The one-piece cast aluminum construction offers a titanium finish that not only enhances aesthetics but also contributes to the wheel's strength and durability under demanding conditions.

Engineered for optimal performance, the Alpha Series Wheel maximizes caliper clearance and optimizes wheel position, allowing for unimpeded suspension travel and steering function. The strategic backspacing and offset dimensions reduce scrub radius, which improves handling and ride quality. This wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and supports a maximum tire diameter of 40 inches, making it a versatile choice for various tire setups.

With a load capacity of 2500 pounds, the Alpha Series Wheel is built to withstand the rigors of off-road driving while maintaining a lightweight profile. The aluminum alloy construction reduces unsprung weight and rotating mass, enhancing overall vehicle performance both on and off the road. The included Icon Vehicle Dynamics logo center cap adds a touch of branding, making this wheel a stylish yet functional addition to your vehicle.

Features

• Titanium Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Icon Vehicle Dynamics Logo Center Cap
• Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
• Reduced Unsprung Weight And Rotating Mass Improves On And Off-Road Vehicle Performance
• Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 1217857347TT
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 0
• Backspacing: 4.75
• Finish: Powder Coated
• Color: Titanium
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Icon Vehicle Dynamics Logo
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1970-1974 Chrysler Imperial
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
