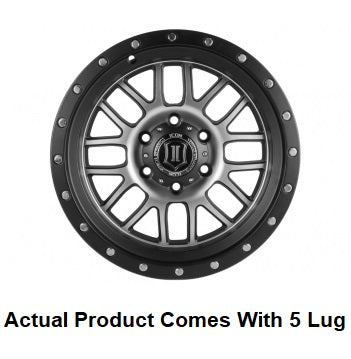

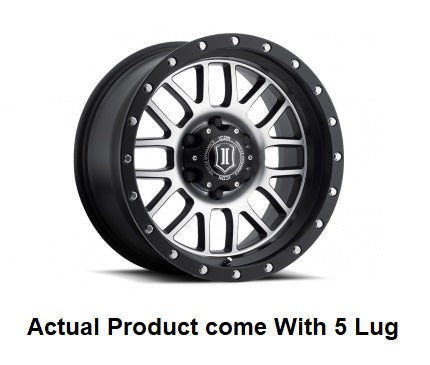

Icon Vehicle Dynamics Alpha Series Wheel (MPN: 1217857347MB)

Enhance your vehicle's performance with precision-engineered wheels.

The Icon Vehicle Dynamics Alpha Series Wheel is designed to provide a robust solution for off-road enthusiasts and everyday drivers alike. With a diameter of 17 inches and a width of 8.5 inches, this wheel features a 5 x 127 millimeter bolt pattern and a 60 degree conical seat lug, ensuring compatibility with a wide range of vehicles. The one-piece cast aluminum construction offers a satin black finish with a machined face, combining aesthetic appeal with durability.

Engineered for optimal performance, the Alpha Series Wheel maximizes caliper clearance and optimizes wheel position, allowing for unimpeded suspension travel and steering function. The strategic backspacing and offset reduce scrub radius, enhancing overall handling and ride quality. With a load capacity of 2500 pounds and compatibility with Tire Pressure Monitoring Systems (TPMS), this wheel is built to withstand the demands of both on-road and off-road conditions.

The design includes an 8 split spoke configuration and a center bore of 71.50 millimeters, making it suitable for various applications. Additionally, the reduced unsprung weight and rotating mass contribute to improved vehicle performance, making the Alpha Series Wheel a practical choice for those looking to enhance their vehicle's dynamics and tire clearance.

Features

• Satin Black With Machined Face Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Icon Vehicle Dynamics Logo Center Cap
• Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
• Reduced Unsprung Weight And Rotating Mass Improves On And Off-Road Vehicle Performance
• Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 1217857347MB
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 0
• Backspacing: 4.75
• Finish: Machined Satin
• Color: Black With Natural Face
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Icon Vehicle Dynamics Logo
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1970-1974 Chrysler Imperial
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
