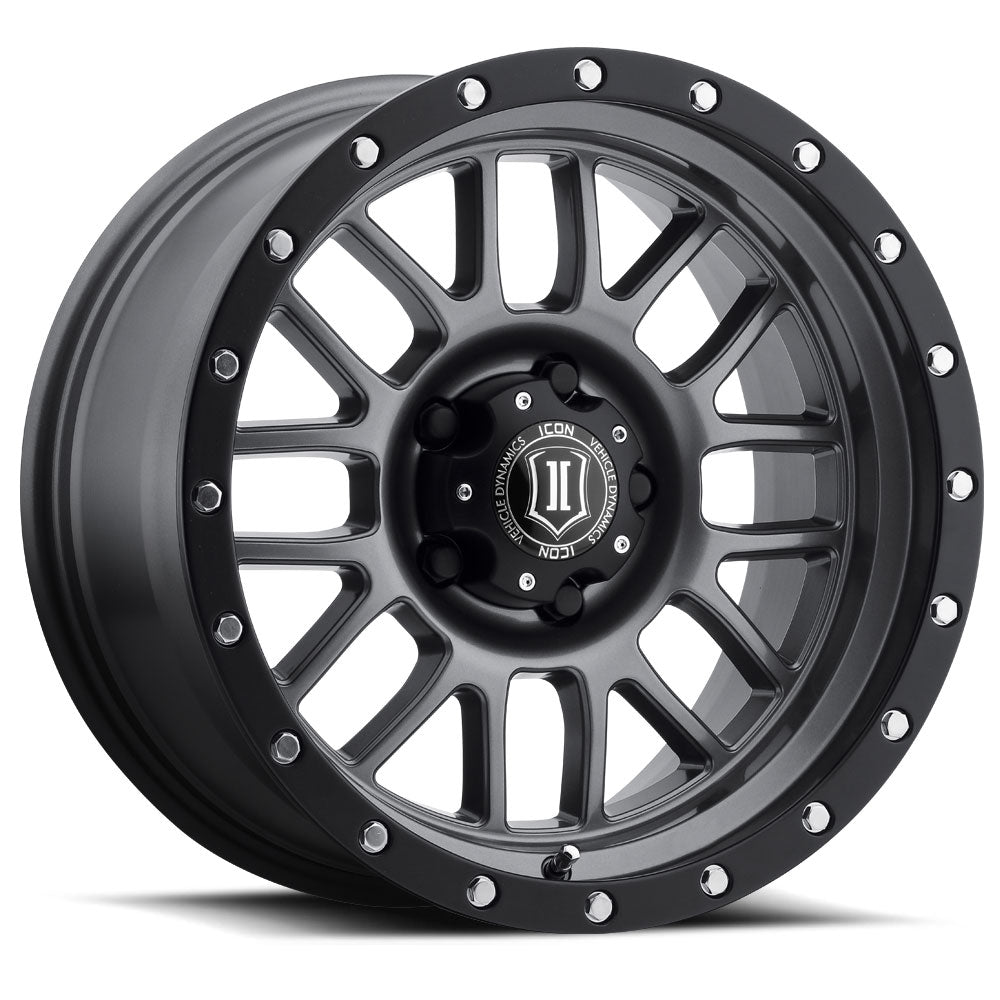

Icon Vehicle Dynamics Alpha Series Wheel (MPN: 1217857347GM)

Engineered for performance and style in off-road and on-road applications.

The Icon Vehicle Dynamics Alpha Series Wheel is designed to enhance both the aesthetics and functionality of your Jeep, truck, or SUV. With a diameter of 17 inches and a width of 8.5 inches, this wheel features a robust 1 piece cast aluminum construction that ensures durability and strength, making it suitable for off-road conditions. The gun metal finish adds a sleek look while the 8 split spoke design provides a modern touch.

This wheel is engineered to maximize caliper clearance and optimize wheel position, allowing for unimpeded suspension travel and steering function. The strategic backspacing and offset dimensions help reduce scrub radius, which improves overall handling and ride quality. Additionally, the Alpha Series Wheel is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that you can maintain optimal tire performance.

With a load capacity of 2500 pounds and a maximum tire diameter of 40 inches, this wheel is built to handle demanding conditions. The 60 degree conical seat lug nut design and 71.50 millimeter center bore further enhance its compatibility with various vehicles. The inclusion of the Icon Vehicle Dynamics logo center cap adds a distinctive branding element, making this wheel a perfect match for those looking to upgrade their vehicle's performance and appearance.

Features

• Gun Metal Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Icon Vehicle Dynamics Logo Center Cap
• Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
• Reduced Unsprung Weight And Rotating Mass Improves On And Off-Road Vehicle Performance
• Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 1217857347GM
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 0
• Backspacing: 4.75
• Finish: Painted
• Color: Gun Metal
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Icon Vehicle Dynamics Logo
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1970-1974 Chrysler Imperial
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
