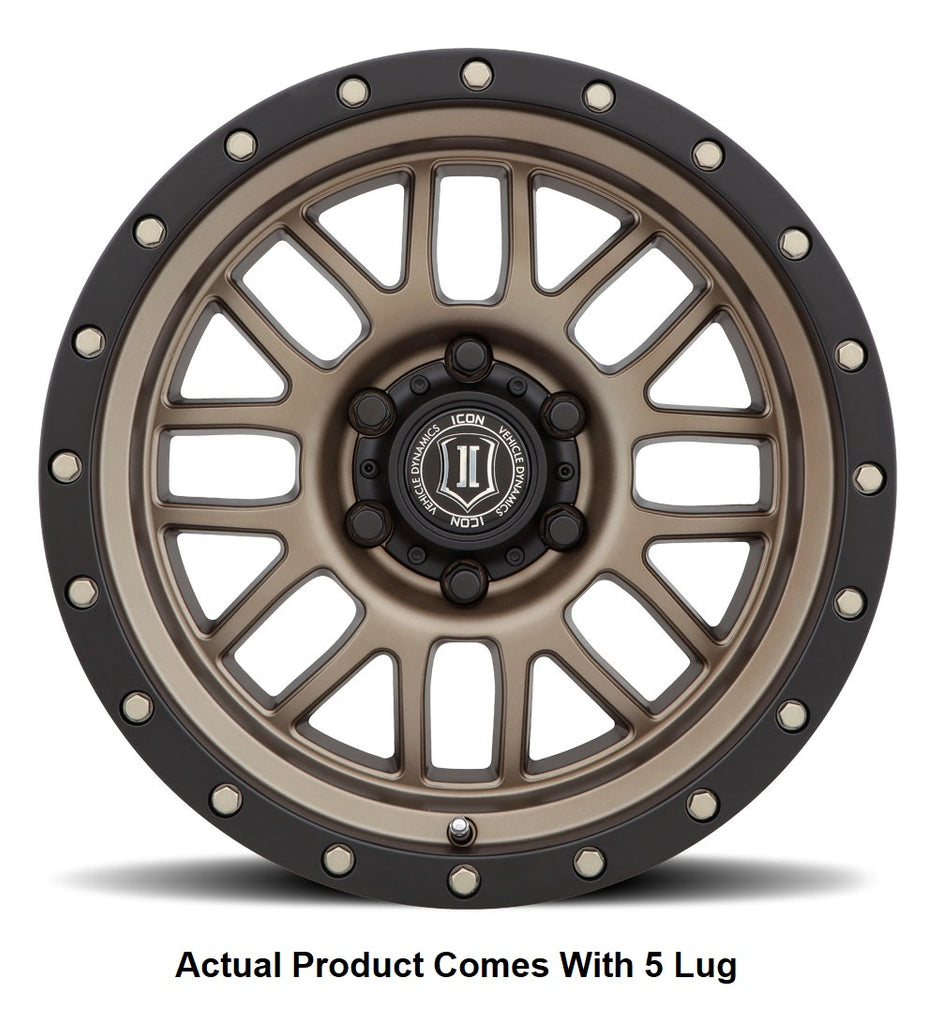

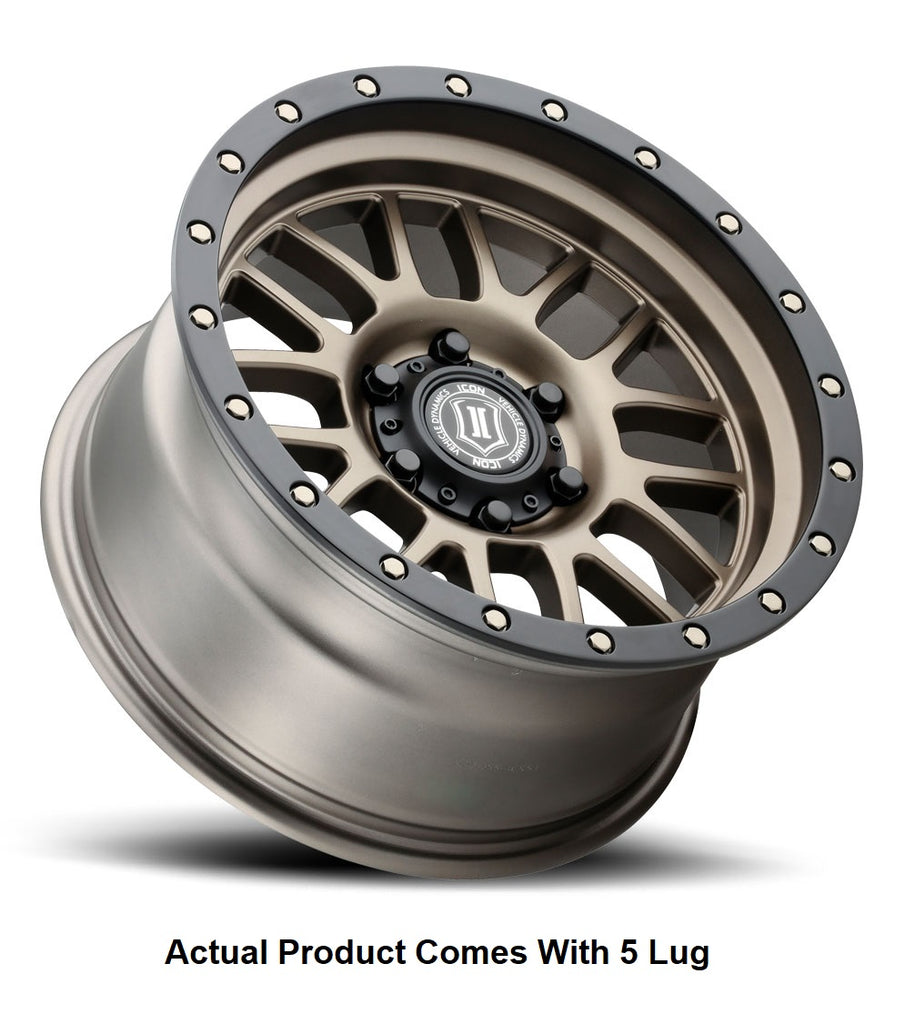

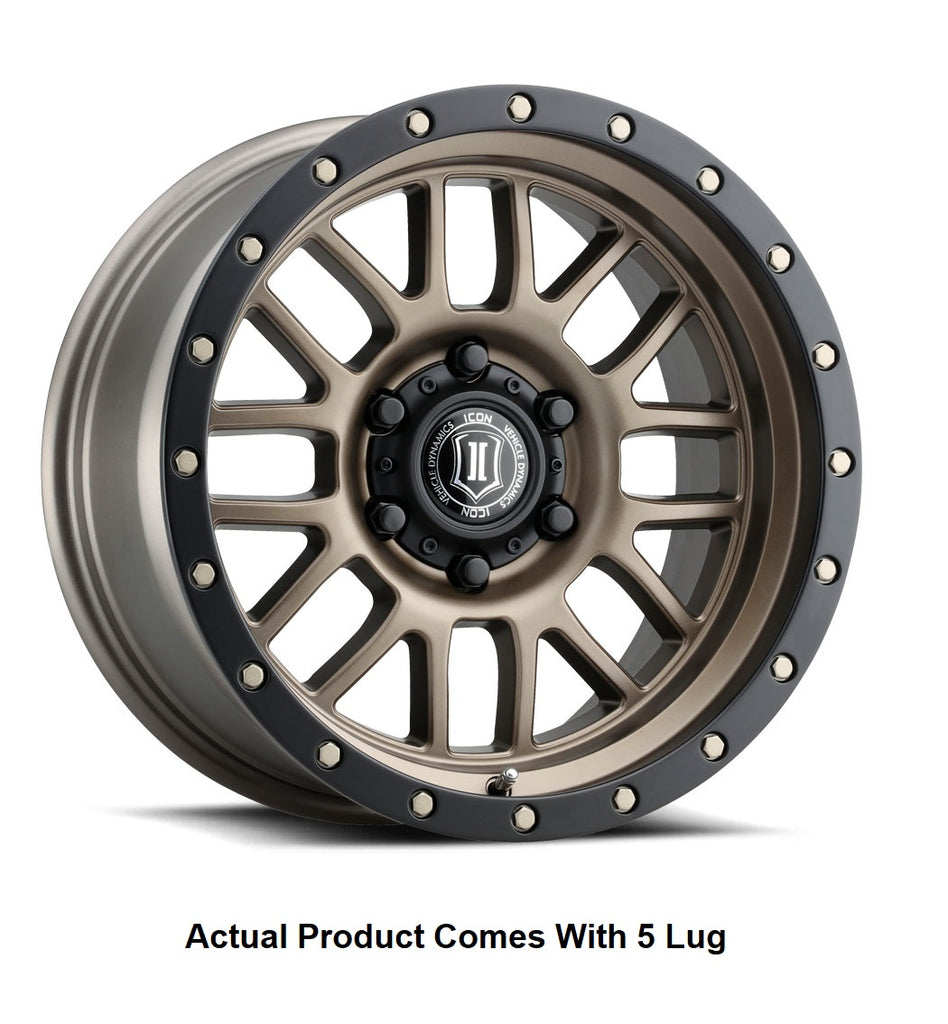

Icon Vehicle Dynamics Alpha Series Wheel (MPN: 1217857347BR)

Enhance your vehicle's performance with precision-engineered wheels.

The Icon Vehicle Dynamics Alpha Series Wheel is designed to provide a perfect balance of aesthetics and functionality for Jeep, truck, and SUV enthusiasts. With a diameter of 17 inches and a width of 8.5 inches, this wheel features a robust 1 piece cast aluminum construction that ensures durability and strength, making it suitable for both on-road and off-road applications. The bronze finish adds a stylish touch while the 8 split spoke design enhances visual appeal.

Engineered for optimal performance, the Alpha Series Wheel includes application-specific dimensions that maximize caliper clearance and improve tire clearance, allowing for unimpeded suspension travel and steering function. The wheel's 0 millimeter offset and 4.75 inch backspacing have been strategically developed to reduce scrub radius, which contributes to improved handling and ride quality. Additionally, the wheel is compatible with Tire Pressure Monitoring Systems (TPMS), ensuring that you can maintain optimal tire pressure for safety and performance.

With a load capacity of 2500 pounds and a maximum tire diameter of 40 inches, the Alpha Series Wheel is built to handle demanding conditions. The 60 degree conical seat lug nut design and included Icon Vehicle Dynamics logo center cap further enhance the wheel's functionality and aesthetic. This wheel is a single unit, making it easy to customize your vehicle's look and performance.

Features

• Bronze Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Icon Vehicle Dynamics Logo Center Cap
• Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
• Reduced Unsprung Weight And Rotating Mass Improves On And Off-Road Vehicle Performance
• Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 1217857347BR
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 0
• Backspacing: 4.75
• Finish: Painted Matte
• Color: Bronze
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Icon Vehicle Dynamics Logo
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1970-1974 Chrysler Imperial
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
