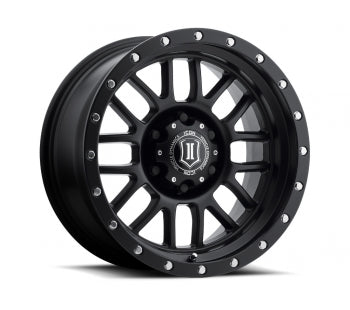

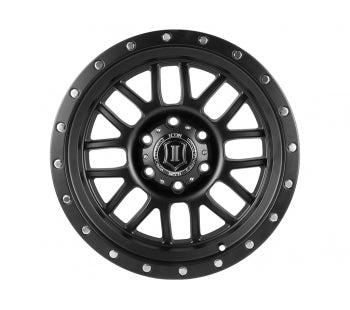

Icon Vehicle Dynamics Alpha Series Wheel (MPN: 1217856350SB)

Enhance your vehicle's performance with precision-engineered wheels.

The Icon Vehicle Dynamics Alpha Series Wheel is designed to provide a robust solution for off-road enthusiasts and everyday drivers alike. With a diameter of 17 inches and a width of 8.5 inches, this wheel features a 6 x 135 millimeter bolt pattern and a 60 degree conical seat lug, ensuring compatibility with a wide range of vehicles. The satin black finish and 8 split spoke design not only enhance aesthetics but also contribute to improved performance and handling.

Constructed from a single piece of cast aluminum, the Alpha Series Wheel offers a load capacity of 2500 pounds, making it suitable for demanding applications. The application-specific dimensions optimize vehicle dynamics and tire clearance, while the reduced unsprung weight and rotating mass enhance both on-road and off-road performance. Additionally, the wheel is compatible with Tire Pressure Monitoring Systems (TPMS), providing added convenience for vehicle monitoring.

Engineered to maximize caliper clearance and optimize wheel position, the Alpha Series Wheel allows for unimpeded suspension travel and steering function. The strategic backspacing and offset design reduce scrub radius, resulting in improved handling and ride quality. This wheel is an excellent complement to Icon Vehicle Dynamics suspension systems, ensuring a seamless integration for enhanced driving experiences.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Icon Vehicle Dynamics Logo Center Cap
• Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
• Reduced Unsprung Weight And Rotating Mass Improves On And Off-Road Vehicle Performance
• Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use

Specifications

• Manufacturer: Icon Vehicle Dynamics
• Manufacturer Part Number: 1217856350SB
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 6
• Backspacing: 5.00
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 6x5.31
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x135
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.10
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Split Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Icon Vehicle Dynamics Logo
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2022-2026 Ford Bronco
• 2016-2019 Ford Expedition
• 2021-2024 Ford Expedition
• 2009-2026 Ford F-150
